Art. 1025 A2 M 3X10

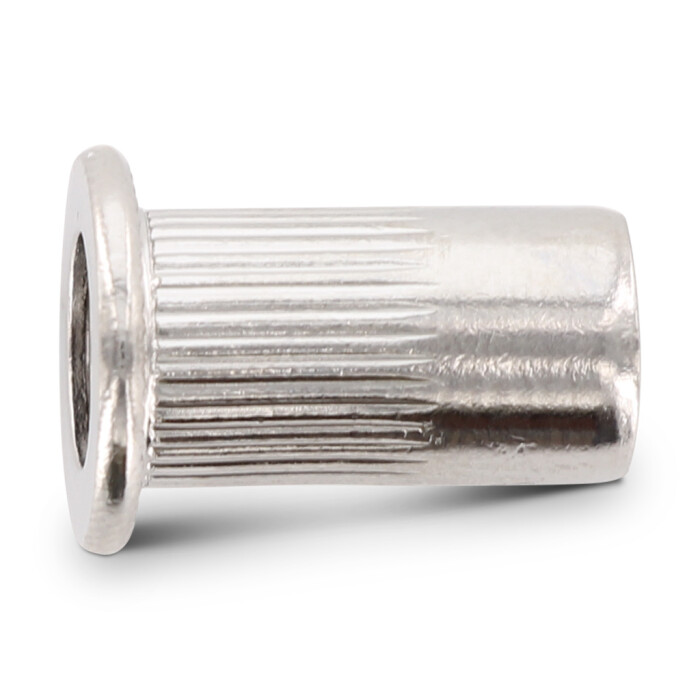

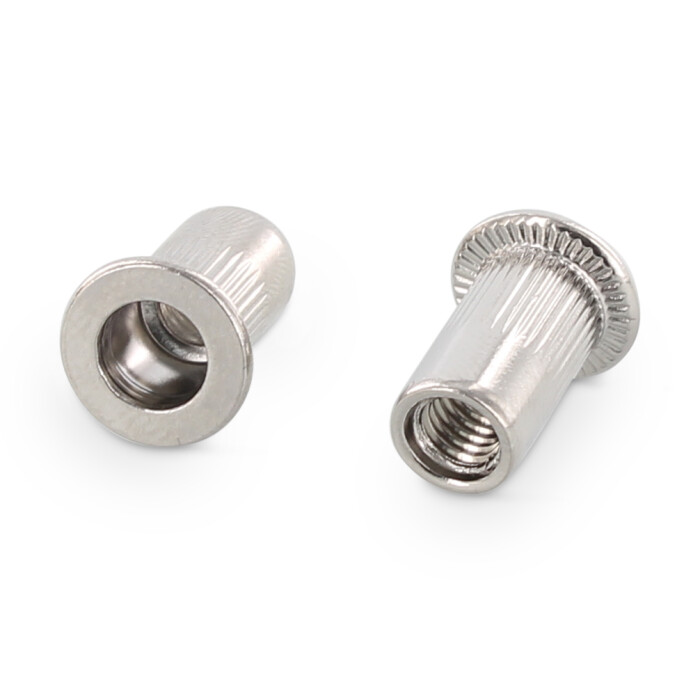

Blind rivet nuts with flat head, straight shank, open type knurled
Item number
102523 10
Materials
A2
EAN
3610500371318
Net weight per 100 pc.
0,110 kg
Item number
102523 10
Materials
A2
EAN
3610500371318
Net weight per 100 pc.
0,110 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

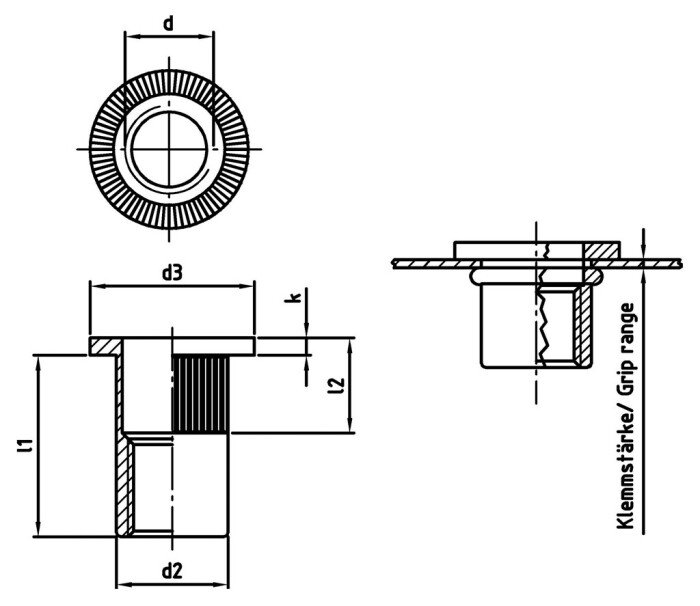

Technical data
| Height of head (k) | 0,9 mm |
| Inner diameter (d1) | 3 mm |
| Measurement l1 (l1) | 10 mm |
| Measurement d2 (d2) | 4,9 mm |
| Measurement d3 (d3) | 8 mm |
| Measurement l2 (l2) | 4,3 mm |
| Clamping area (Clamp.area) | 0,3-2,0 mm |
Product information
Product benefits
The rotate of the shank shall be avoided by the knurling.Applications
Blind rivet nuts with knurled round shank is used when an application using the hex shank is not possible. This knurling is an additional security against rotation with hard materials as opposed to unknurled blind rivets.The tightening torque specifications are guide values depending on the material of the original component and must be checked by testing the component.
Area of use
Metal constructionFEATURES
- flat head- straight shank
- knurled
- open type
