Art. 1027 A2 M 4X12
Blind rivet nuts with small CSK, partial hexagon, open type
Item number
102724 12
Materials
A2
EAN
3610500371813
Net weight per 100 pc.
0,107 kg
Item number
102724 12
Materials
A2
EAN
3610500371813
Net weight per 100 pc.
0,107 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

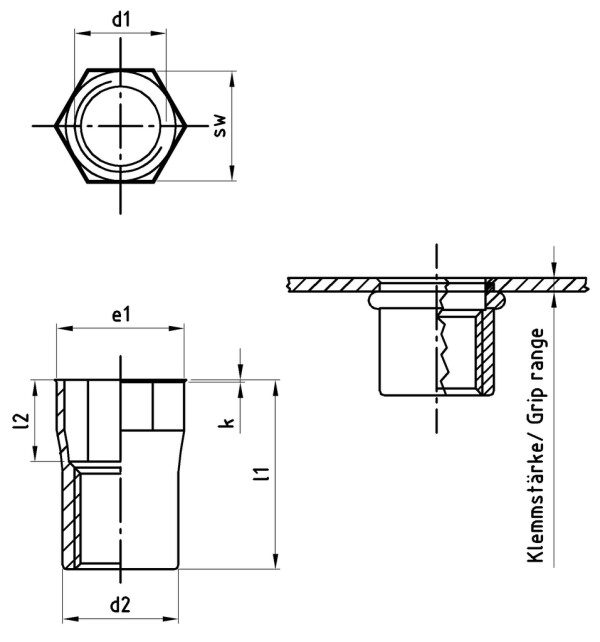

Technical data
| Drive size | SW 6 |
| Height of head (k) | 0,6 mm |
| Inner diameter (d1) | 4 mm |
| Measurement l1 (l1) | 12 mm |
| Measurement d2 (d2) | 5,9 mm |
| Measurement l2 (l2) | 4,5 mm |
| Clamping area (Clamp.area) | 0,5-2,0 mm |
| Measurement e1 (e1) | 6,5 mm |
Product information
Product benefits
Surface-terse processingThe countersunk bears shortly on the material. The partial hexagon assures the loosen and rotate of the rivet nut.
Applications
An optimal security against rotation is ensured by the partial hexagonal shank. Once you have used a key part of the hex shank prevents accidental unscrewing as opposed to the hex shaft.The tightening torque specifications are guide values depending on the material of the original component and must be checked by testing the component.
Area of use
Metal constructionFEATURES
- small countersunk- partial hexagon
- open type
