Art. 14579 A2-70 M 8X20/20 TX40

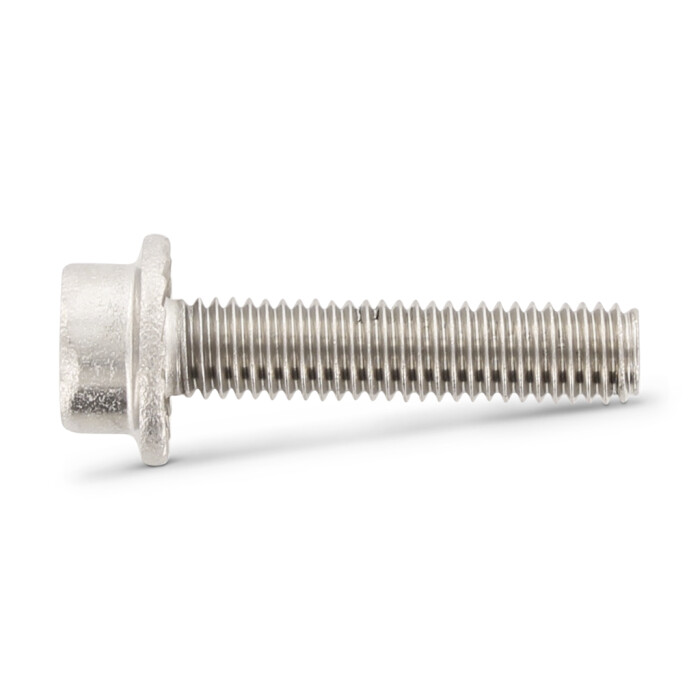

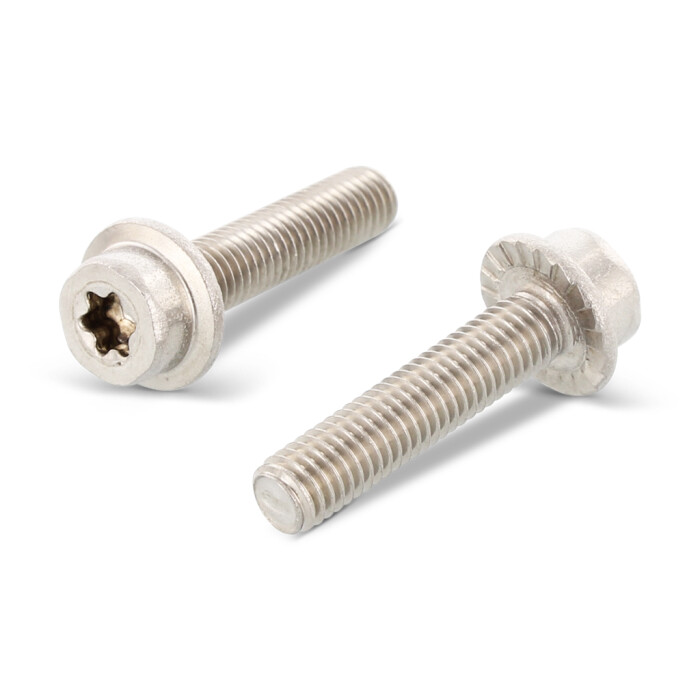

Socket head cap screws with six lobe drive flange
Item number
14579218 20
Materials
A2
EAN
3610500375163
Net weight per 100 pc.
1,450 kg
Packaging units:
100
Item number
14579218 20
Materials
A2
EAN
3610500375163
Net weight per 100 pc.
1,450 kg
- Technical data
- Product information
- Catalog page

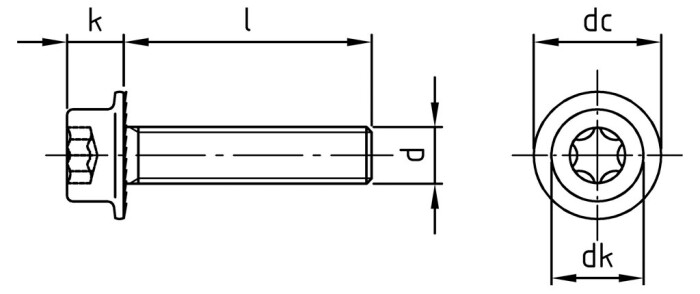

Technical data
| Diameter (d) | 8 mm |
| Total length (l) | 20 mm |
| strength class (Rm) | 700 N/mm² |
| Type of thread | Metric |
| Drive size | TX40 |
| Drive shape (drive) | Inner multi-tooth |
| Head shape | Cylinder head |
| Diameter of head (dk) | 13 mm |
| Height of head (k) | 8 mm |
| Thread length (b) | 20 mm |
Product information
Product benefits
SerrationThis reduces the risk of loosening of the screw

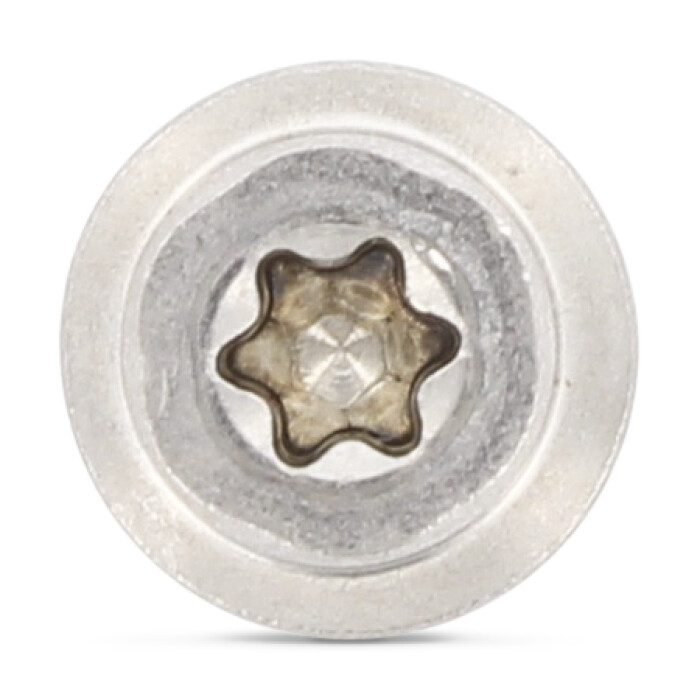

Wobble-free driving feature
The TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
Use in damp rooms and outdoor applications without significant levels of chlorides.Area of use
SolarShare Art. 14579 A2-70 M 8X20/20 TX40
