Art. 14580 A2 M 8X30/30 TX40 k=5mm
Hexalobular socket cheese head screws
Item number
14580208 30
Materials
A2
Net weight per 100 pc.
1,420 kg
Packaging units:
100
Item number
14580208 30
Materials
A2
Net weight per 100 pc.
1,420 kg
- Technical data
- Product information
- Catalog page

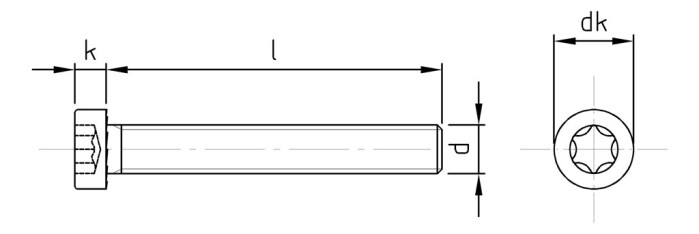

Technical data
| Diameter (d) | 8 mm |
| Total length (l) | 30 mm |
| strength class (Rm) | 500 N/mm² |
| Diameter of head (dk) | 13 mm |
| Height of head (k) | 5 mm |
| Head shape | Cylinder head |
| Type of thread | Metric |
| Drive size | TX40 |
| Drive shape (drive) | Inner multi-tooth |
| Thread length (b) | 30 mm |
Product information
Product benefits

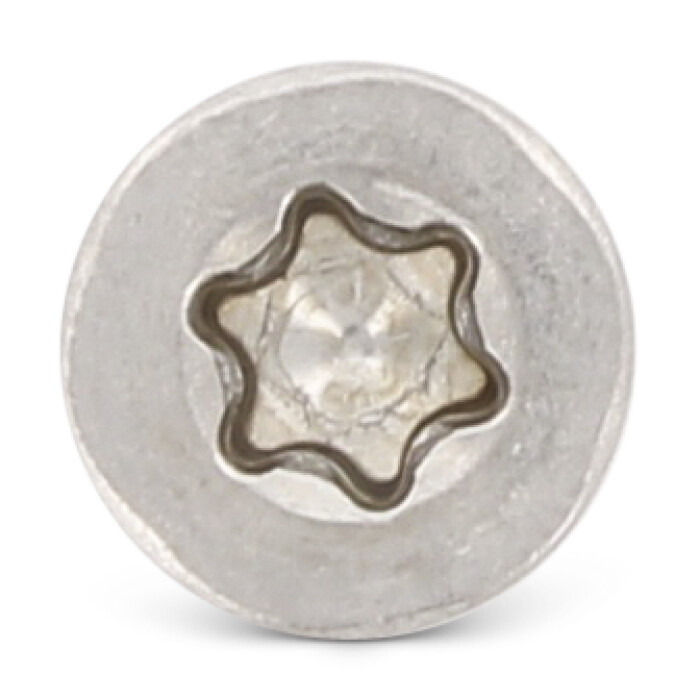

Wobble-free driveThe TX driving feature allows you to insert the screws safely and easily without any risk of them coming out again

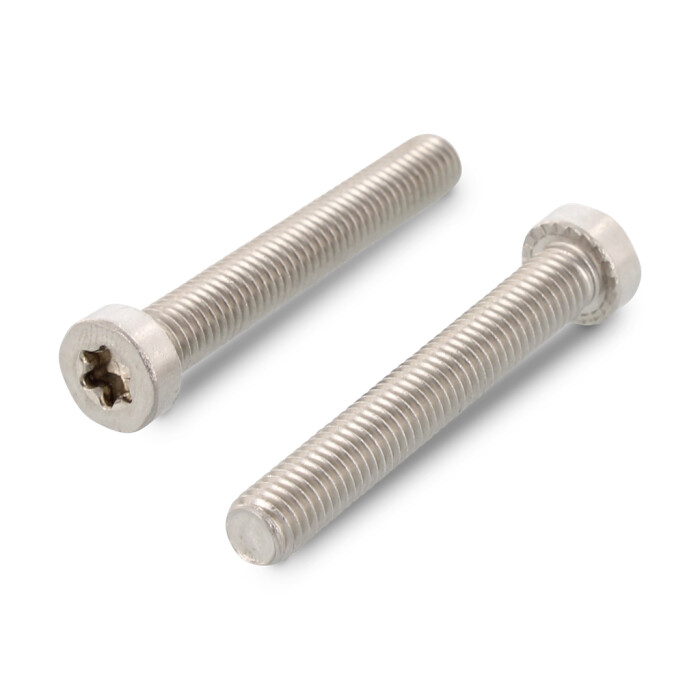

Locking teeth
These reduce the risk of the screw coming loose
