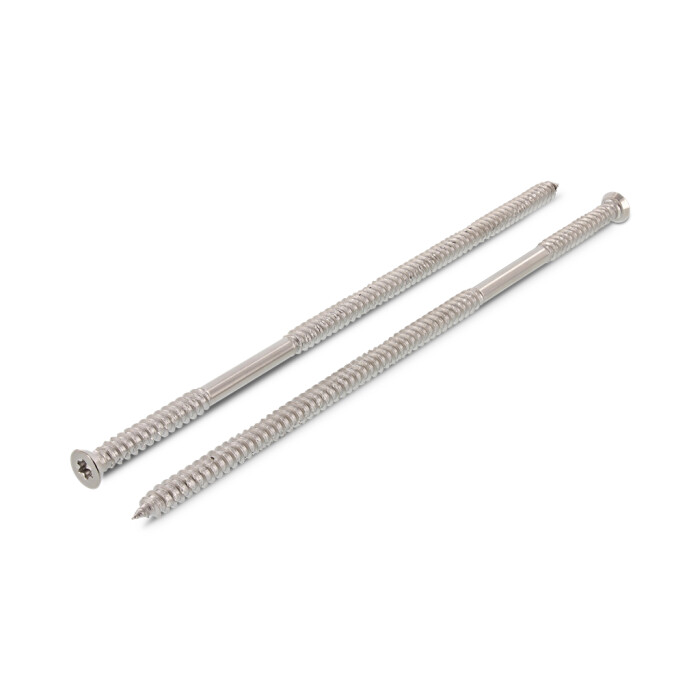

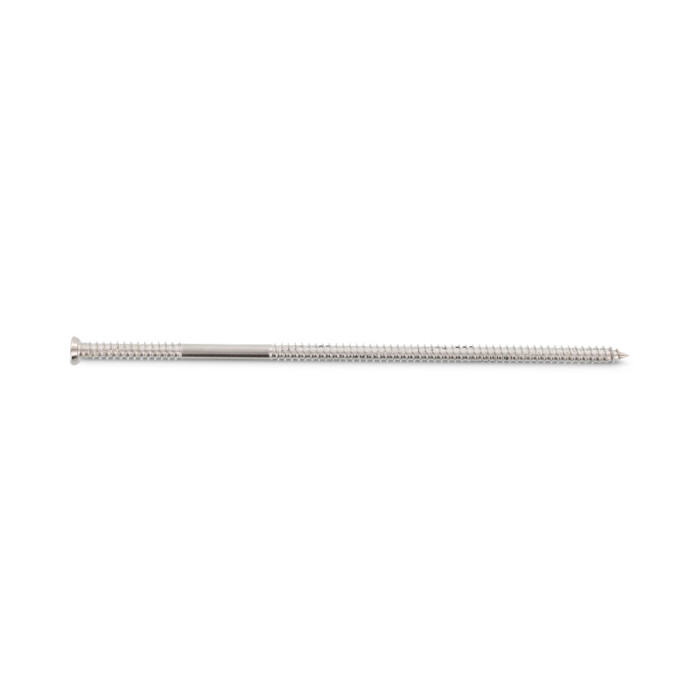

Art. 9008 A2 7,5X212/137+40 TX30

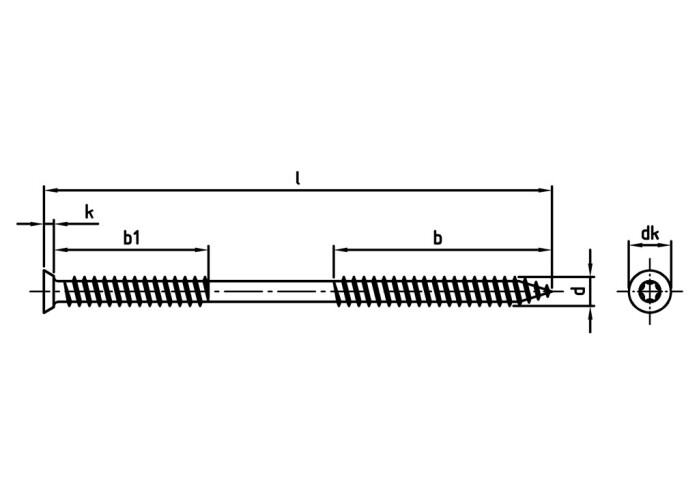

Technical data

Diameter (d)	7,5 mm
Total length (l)	212 mm
Head shape	Countersunk head
Diameter of head (dk)	11 mm

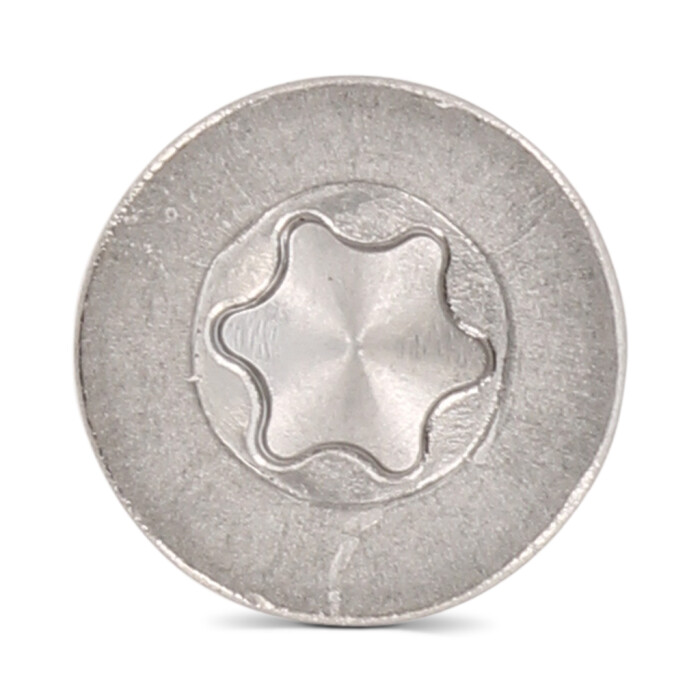

Drive size	TX30
Drive shape (drive)	Inner multi-tooth
Thread length (b)	137 mm
Height of head (k)	2,6 mm
Measurement b1 (b1)	40 mm

Product information

Product benefits

- Fast and safe installation in various surfaces
- No pulling force between cover frame and masonry
- Can be used without dowels in the masonry
- optimal torque transmission, no "come-out" effect of the bit

Applications

Mounting screw for window and door frames made of wood, metal or plastic in various surfaces.

drilling diameter:
over frame: 6,5 mm
concrete: 6,5 mm
other masonry: 6,0 mm
cellular concrete: no pre-drilling necessary

drilling dephts:
Mind. 30 mm = concrete
Mind. 40 mm = lime stone
Mind. 50 mm = pumice stone
Mind. 60 mm = lightweight concrete, vertical corning brick

Area of use

Other applications

FEATURES

- full thread (except length 212mm)
- head diameter 11 mm
- TX drive
- small countersunk head
