Art. 9032 A2 type 1_1

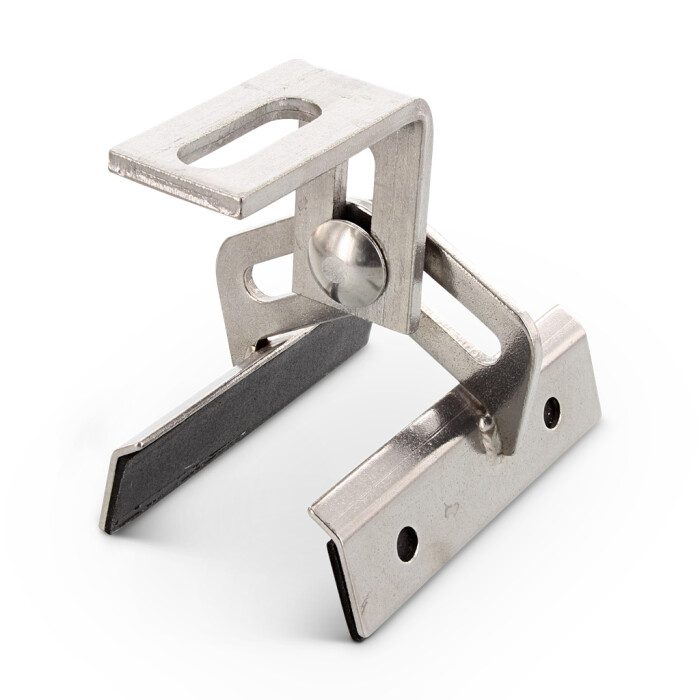

Universal brackets for metal sheet roofs
Item number
9032201
Materials
A2
EAN
3610500449123
Net weight per 100 pc.
28,000 kg
Packaging units:
50
Item number
9032201
Materials
A2
EAN
3610500449123
Net weight per 100 pc.
28,000 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

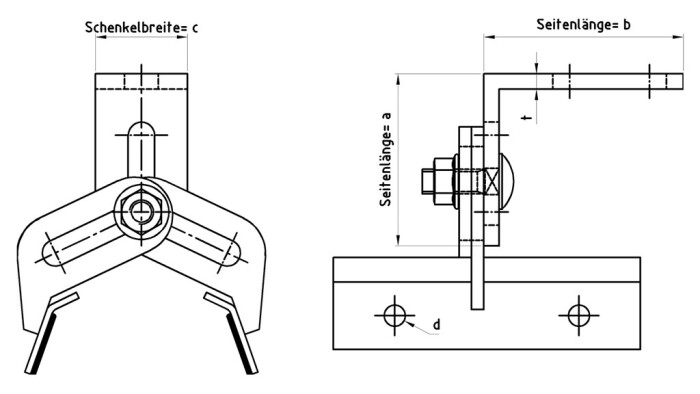

Technical data
| Measurement t (t) | 5 mm |
| Hole diameter (d) | 7 mm |
| Measurement c (c) | 30 mm |
| L-Angle bracket a (L-Angle a) | 56 mm |
| L-Angle bracket b (L-Angle b) | 65 mm |
Product information
Product benefits
- Perfect sealing because of self-adhesive strip on the plate- Only 4 fixing points with bi-metal self-drilling screws for thin plates
- DIN 603 M 8X25 only 1 tool necessary
- DIN 6923 – flange nut with serration
- No fixing problems on different types of trapezium plates
Applications
- For various trapezium plates with or without between insulation- Perfect fastening together with the thin sheet screw
Area of use
SolarFEATURES
- Variable for all sizes of trapezium plates- Fixing through self-adhesive strip
- Height-adjustable
