Art. 9034 A2 140X56X5/5

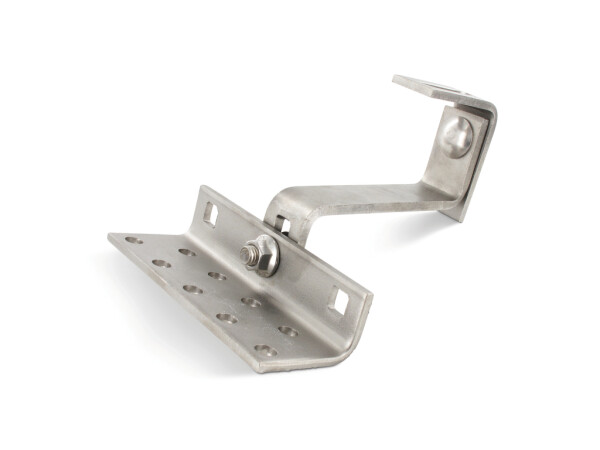

Vario solar hooks 3 times adjustable sandblasted, bow 5 mm, 140X56X5/5
Item number
903420140 56
Materials
A2
EAN
3610500449130
Net weight per 100 pc.
78,000 kg
Item number
903420140 56
Materials
A2
EAN
3610500449130
Net weight per 100 pc.
78,000 kg
- Technical data
- Product information
- Catalog page

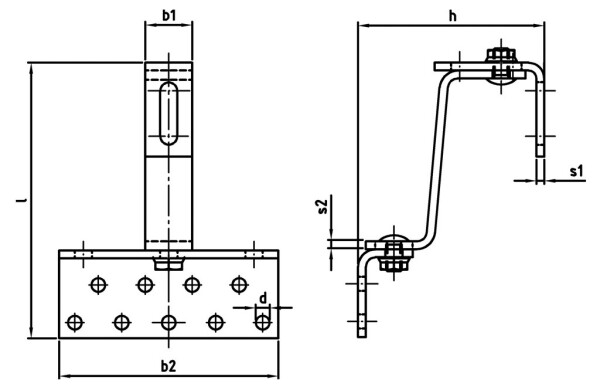

Technical data
| Total length (l) | 176 mm |
| Measurement h (h) | 145 mm |
| Hole diameter (d) | 9 mm |
| Base plate | 140X56X5/5 |
| Measurement b1 (b1) | 30 mm |
| Measurement b2 (b2) | 140 mm |
| Measurement s1 (s1) | 5 mm |
| Measurement s2 (s2) | 5 mm |
Product information
Product benefits
- For high snow and wind loading- Adjustable 3
- Fully pre-fitted with bolts and nuts
- Higher corrosion resistance through the production of austenitic stainless steel 1.4301 compared to the commonly used ferritic steel as 1.4016
- Completely pre-assembled with screws DIN 603 and nuts DIN 6923
Applications
- In the solar industry, for fitting substructures with extreme snow and wind loading.- Can be used outdoors and subjected to environmental influences without significant levels of chlorides or sulphur dioxides.
Area of use
SolarFEATURES
- blasted- incl. screws + nuts
