Art. 9038 A2-70 M 10X25 SW 17 Gleitmo

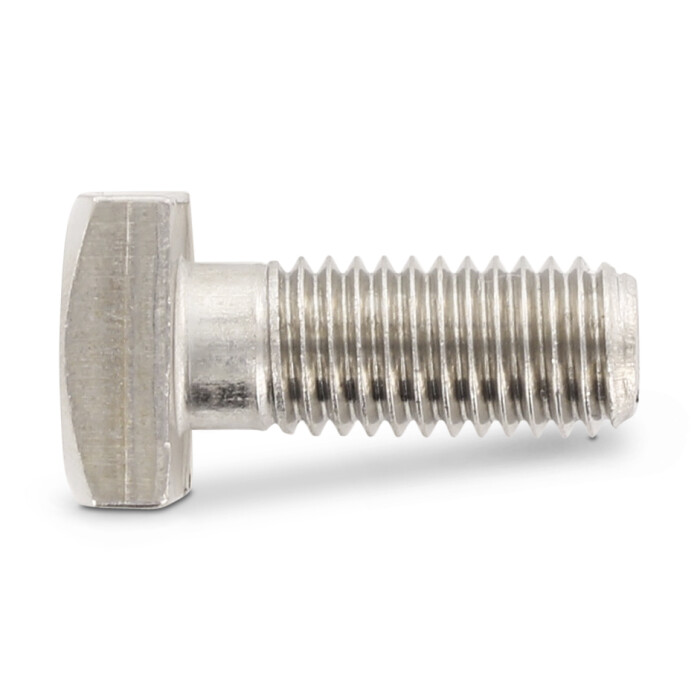

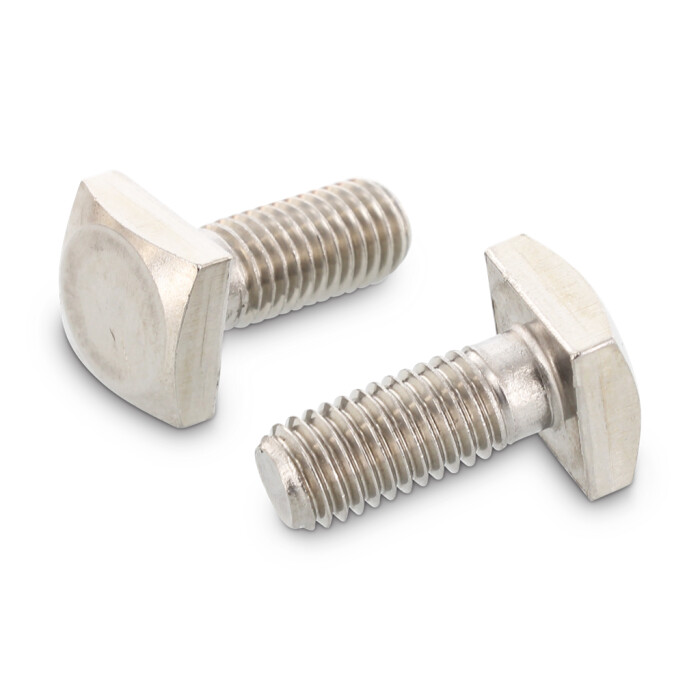

Square head bolts
Item number
9038210 25
Materials
A2
EAN
3610500340482
Net weight per 100 pc.
2,430 kg
Packaging units:
100
Item number
9038210 25
Materials
A2
EAN
3610500340482
Net weight per 100 pc.
2,430 kg
- Technical data
- Product information
- Catalog page

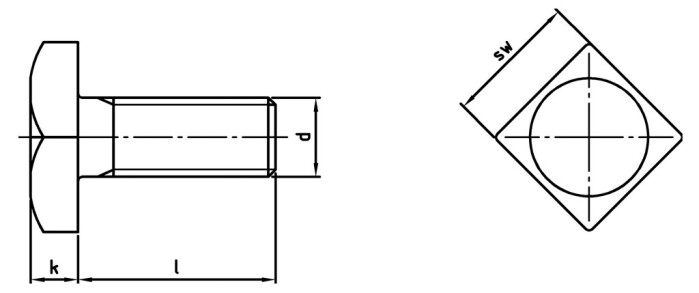

Technical data
| Diameter (d) | 10 mm |
| Total length (l) | 25 mm |
| Type of thread | Metric |
| Drive size | SW 17 |
| Drive shape (drive) | Square |
| Height of head (k) | 6 mm |
| Width (b) | 17 mm |
Product information
Product benefits

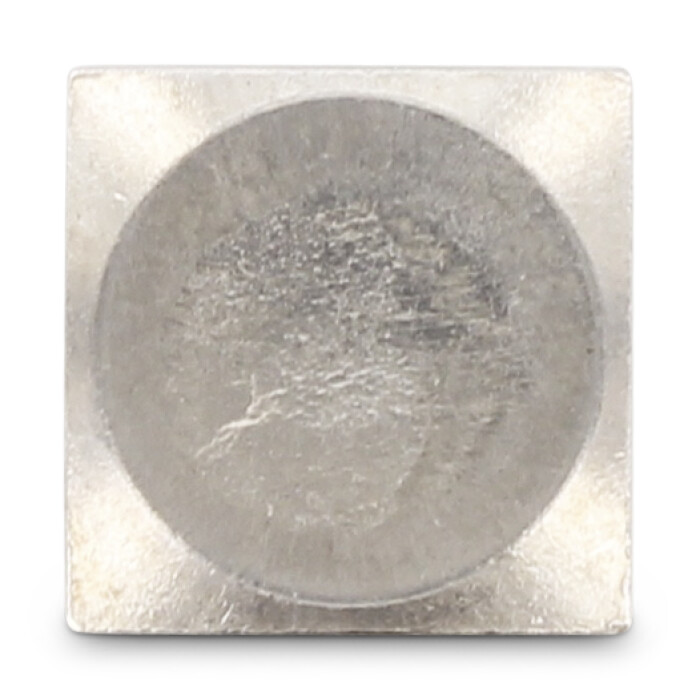

Sqaure driving featureThe driving feature is an optimum supplement to drives such as TX, PZ and PH with which our customers will already be familiar.
Applications
Ideal for screw connections in the machine area.Area of use
Machine constructionShare Art. 9038 A2-70 M 10X25 SW 17 Gleitmo
