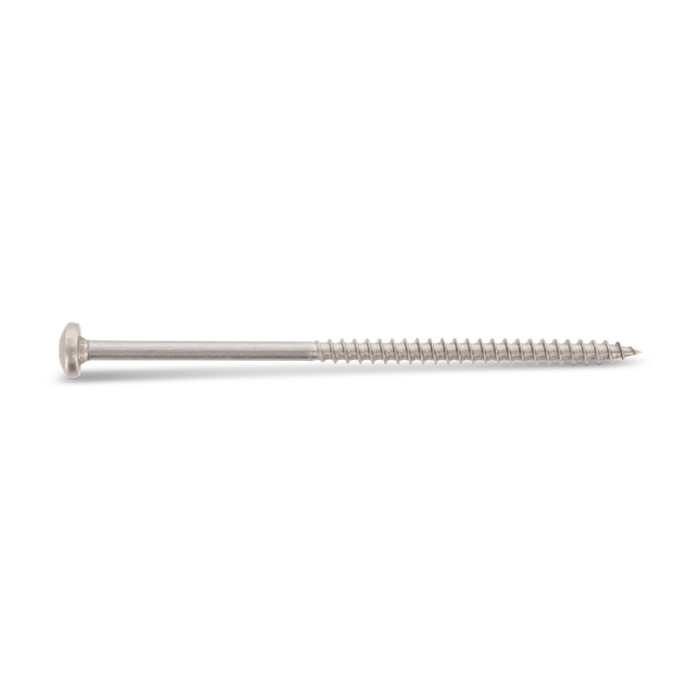

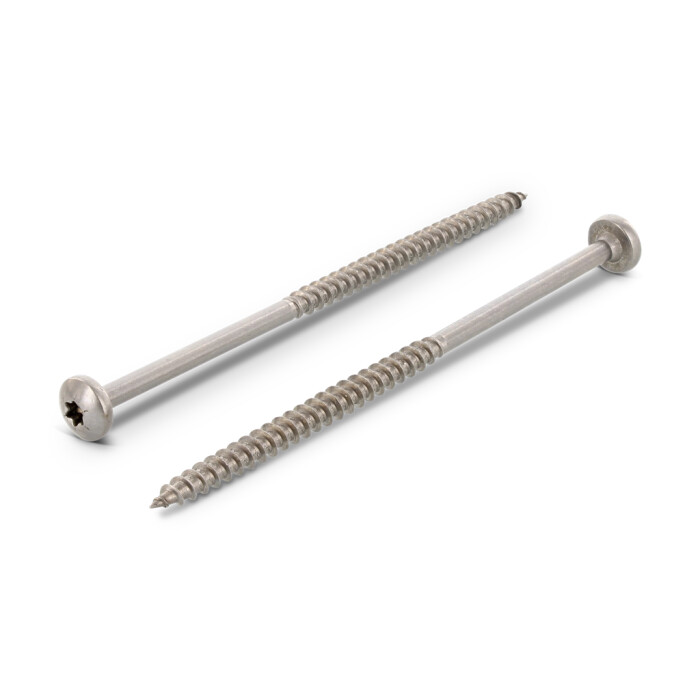

Art. 9045 A4 6,0X120/70 TX25
Double pan head timber screws with partial thread
Item number
9045460 120/70
Materials
A4
EAN
3610500307140
Net weight per 100 pc.
1,560 kg
Packaging units:
100
1.200
28.800
Item number
9045460 120/70
Materials
A4
EAN
3610500307140
Net weight per 100 pc.
1,560 kg
- Technical data
- Product information
- Product Information Files
- Catalog page
Technical data
| Diameter (d) | 6 mm |
| Total length (l) | 120 mm |
| Thread length (b) | 70 mm |
| Head shape | Cross recessed pan head |
| Diameter of head (dk) | 12 mm |
| Height of head (k) | 4,7 mm |
| Drive size | TX25 |
| Type of thread | Chipboardscrew thread |
| strength class (Rm) | 500 N/mm² |
| Drive shape (drive) | Inner multi-tooth |
Product information
Product benefits
Wobble-free driveThe TX internal, multi-tooth drive allows easy and secure screw driving from setting to countersinking.
No predrilling
Predrilling is not needed, even in most hardwoods. But given the many different properties of hardwoods we would always recommend testing before use.
European technical Assessment ETA 11/0283
UK Technical Assessment UKTA 22/6473
Applications
Ideal for screwing in wood. The optimal thread geometry ensures the best grip in a variety of wood materials. By recording TX optimum power transmission is achieved.Area of use
Timber construction, SolarFEATURES
- partial thread- pan head
- double pan head
- TX drive
- standard tip
