Art. 9049 A2 6,0X120/70 Z

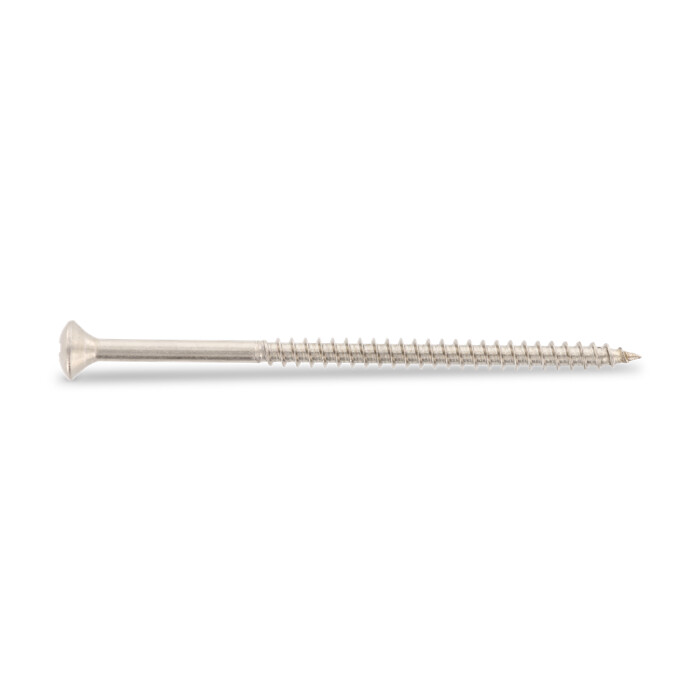

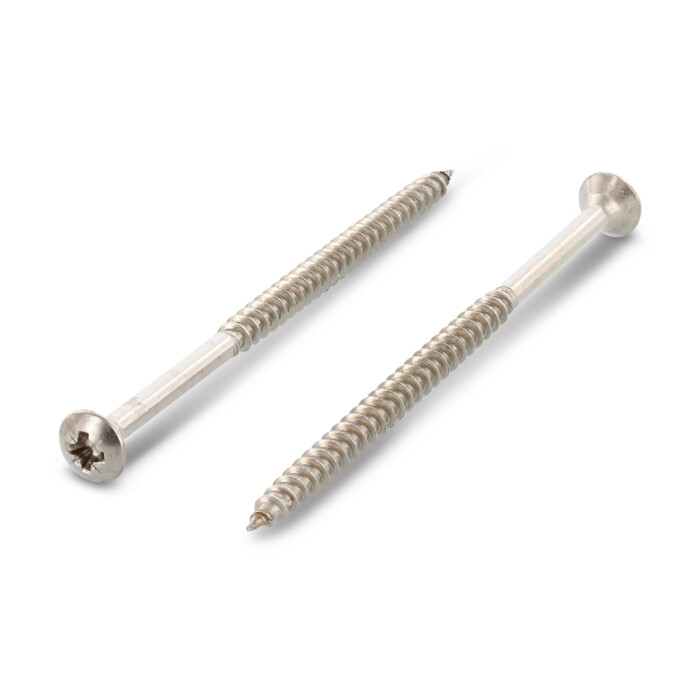

Double raised countersunk head timber screws with partial thread
Item number
9049260 120/70
Materials
A2
EAN
3610500312656
Net weight per 100 pc.
1,430 kg
Packaging units:
100
1.200
28.800
Item number
9049260 120/70
Materials
A2
EAN
3610500312656
Net weight per 100 pc.
1,430 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

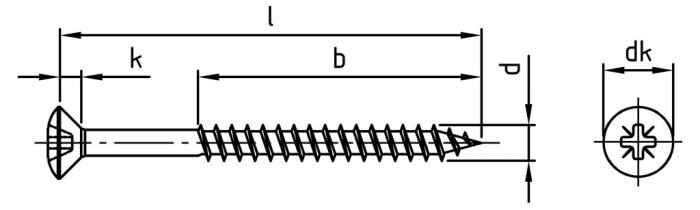

Technical data
| Diameter (d) | 6 mm |
| Total length (l) | 120 mm |
| Type of thread | Chipboardscrew thread |
| Head shape | Raised countersunk head |
| Diameter of head (dk) | 12 mm |
| Height of head (k) | 3,6 mm |

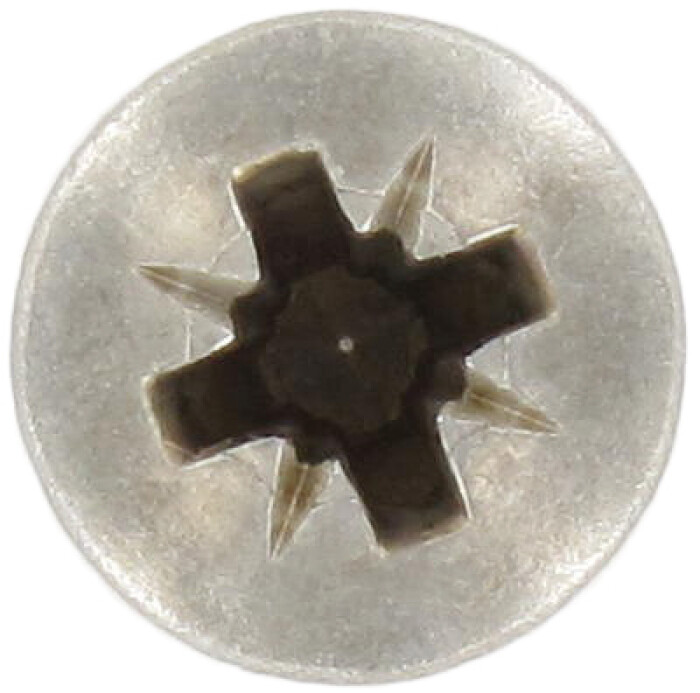

| Drive size | PZ3 |
| Drive shape (drive) | Pozidrive |
| Thread length (b) | 70 mm |
| strength class (Rm) | 500 N/mm² |
Product information
Product benefits
No predrillingPredrilling is not needed, even in most hardwoods. But given the many different properties of hardwoods we would always recommend testing before use.
European technical Assessment ETA 11/0283
UK Technical Assessment UKTA 22/6473
Applications
Ideal for screwing in wood. The optimal thread geometry ensures the best grip in a variety of wood materials.Area of use
Timber construction, SolarFEATURES
- partial thread- raised countersunk head
- double raised countersunk head
- PZ Pozidrive
- standard tip
