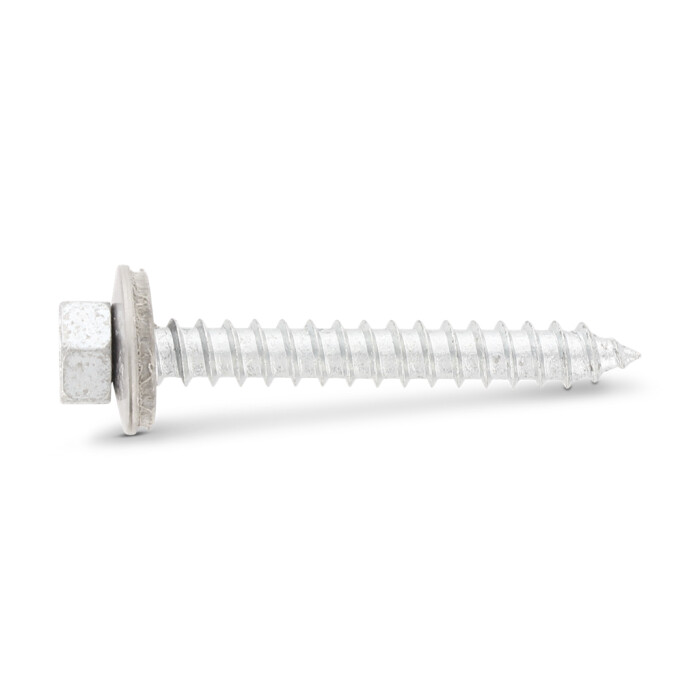

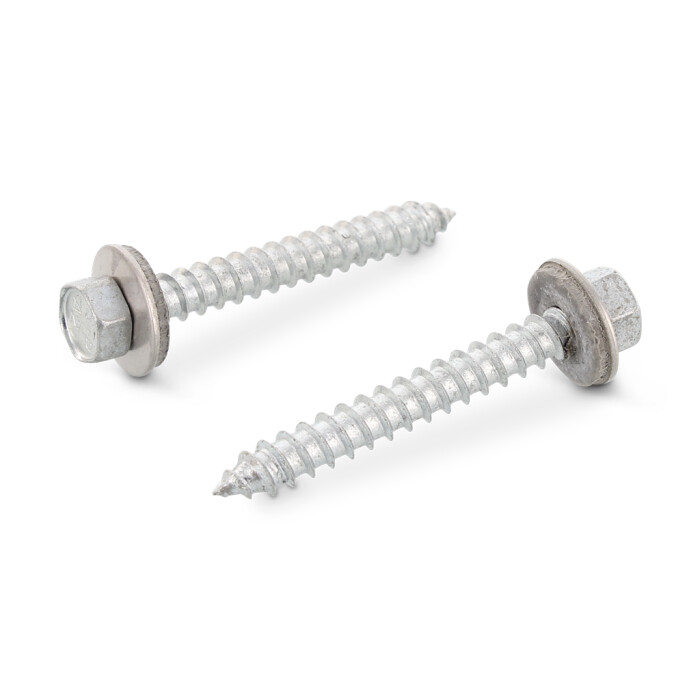

Art. 9057 A2 A 6,5X260
Cladding screws with point sealing washer 16 mm
Item number
9057265 260
Materials
A2
EAN
3610500322303
Net weight per 100 pc.
4,660 kg
Item number
9057265 260
Materials
A2
EAN
3610500322303
Net weight per 100 pc.
4,660 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

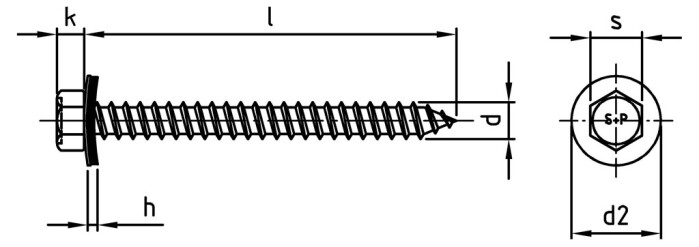

Technical data
| Diameter (d) | 6,5 mm |
| Total length (l) | 260 mm |
| Type of thread | Wooden thread |

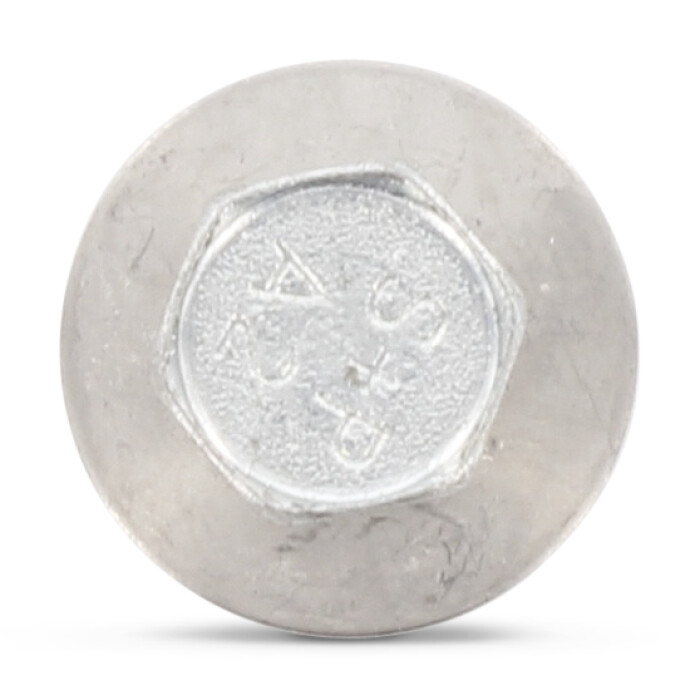

| Head shape | Hexagonal head |
| Height of head (k) | 4,6 mm |
| Drive size | SW 3/8" |
| Drive shape (drive) | Outer hex |
| Thread length (b) | 64 mm |
| Outer diameter of washer (d2) | 16 mm |
| strength class (Rm) | 500 N/mm² |
Product information
Applications
For securing profile sheets and fibre cement slabs to timber, steel and aluminium substructuresPlease refer to the building-authority approvals for the relevant hole diameters
Timber: Observe a minimum screw-in depth of 30 mm
Steel: In the case of metal substructures, the tip should protrude
Area of use
Timber construction, Facade, Solar, Metal constructionFEATURES
- type A- Coarse thread with tip for timber substructures and thin sheet metal < 3mm
- ETA-13/0178 valid from L 75 mm
- Fastening screws for sandwich panels
Product Information Files
Share Art. 9057 A2 A 6,5X260
