Art. 9061 AISI 303 M 5X15

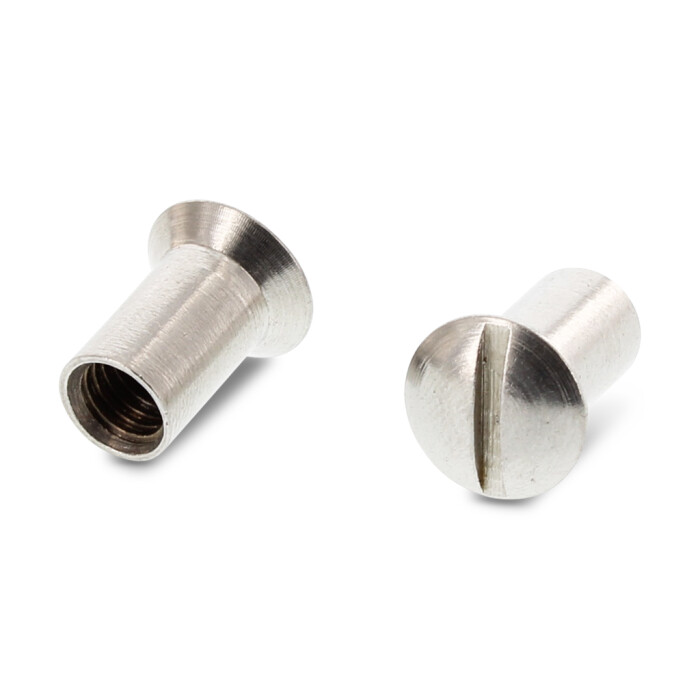

Raised countersunk head sleeve nuts with slot
Item number
906125 15
Materials
A1
EAN
3610500323256
Net weight per 100 pc.
0,240 kg
Item number
906125 15
Materials
A1
EAN
3610500323256
Net weight per 100 pc.
0,240 kg
- Technical data
- Product information
- Catalog page

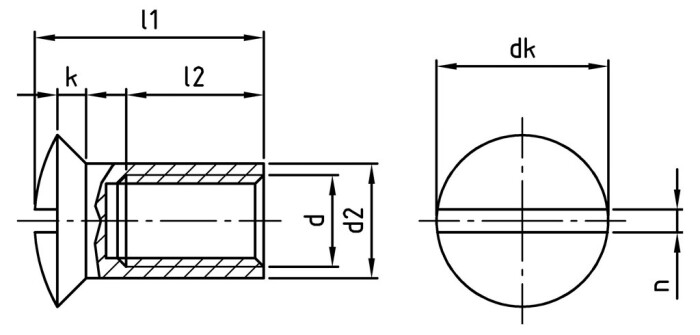

Technical data
| Diameter (d) | 5 mm |
| Measurement d2 (d2) | 6 mm |
| strength class (Rm) | 500 N/mm² |
| Head shape | Raised countersunk head |
| Diameter of head (dk) | 9 mm |
| Drive shape (drive) | Slot |
| Height of head (k) | 1,5 mm |
| Measurement l1 (l1) | 15 mm |
| Measurement l2 (l2) | 9 mm |
| Slot width (n) | 1,2 mm |
Product information
Area of use
Machine constructionFEATURES
- raised countersunk- slot
