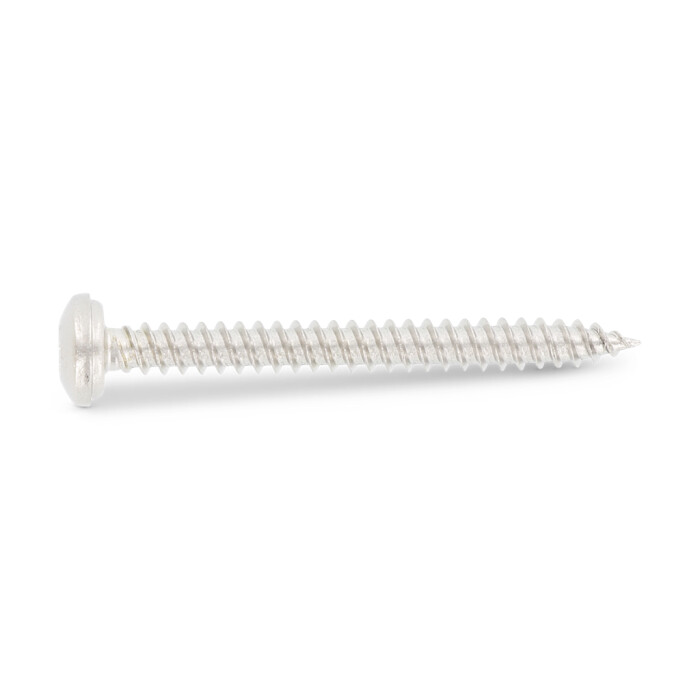

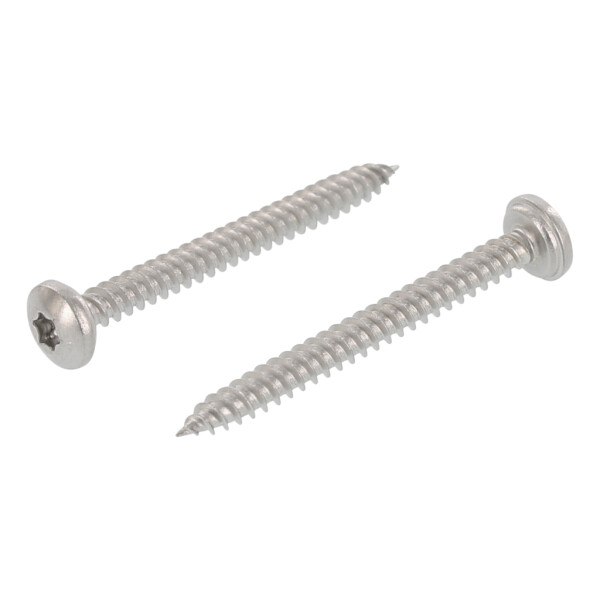

Art. 9065 A2 C 3,9X19 TX15
Tapping screws with caphead, similar DIN 7981
Item number
90652T39 19
Materials
A2
EAN
3610500458088
Net weight per 100 pc.
0,165 kg
Item number
90652T39 19
Materials
A2
EAN
3610500458088
Net weight per 100 pc.
0,165 kg
- Technical data
- Product information
- Catalog page

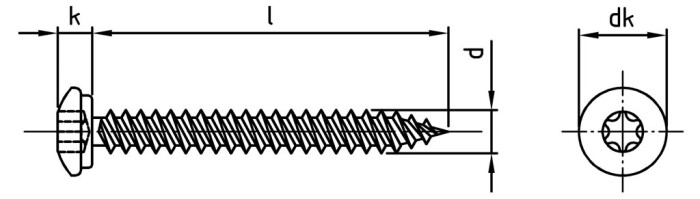

Technical data
| Diameter (d) | 3,9 mm |
| strength class (Rm) | 500 N/mm² |
| Total length (l) | 19 mm |
| Type of thread | Sheet thread |
| Drive size | TX15 |
| Drive shape (drive) | Inner multi-tooth |
| diameter imperial (inch) (d) | 7 " |
| total length imperial (inch) ((Inch)) | 0,75 " |
| Head shape | Capping head |
| Diameter of head (dk) | 8,15 mm |
| Height of head (k) | 3,1 mm |
Product information
Product benefits

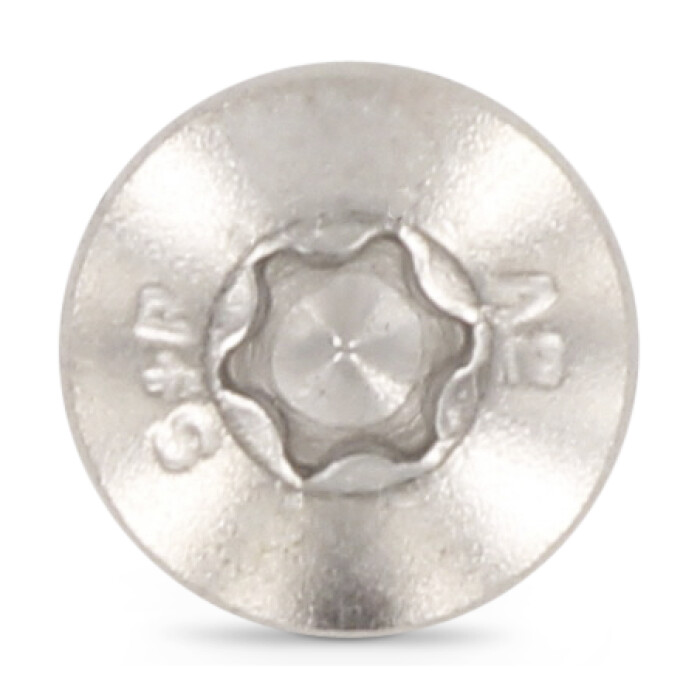

Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
Sheet metal screw connections in sanitary and heating installation.Use in damp rooms and outdoor applications without significant levels of chlorides or sulphur dioxides.
The sheets of the parts to be screwed together must be larger than the thread pitch of the screw selected.
Area of use
Metal construction, FacadeShare Art. 9065 A2 C 3,9X19 TX15
