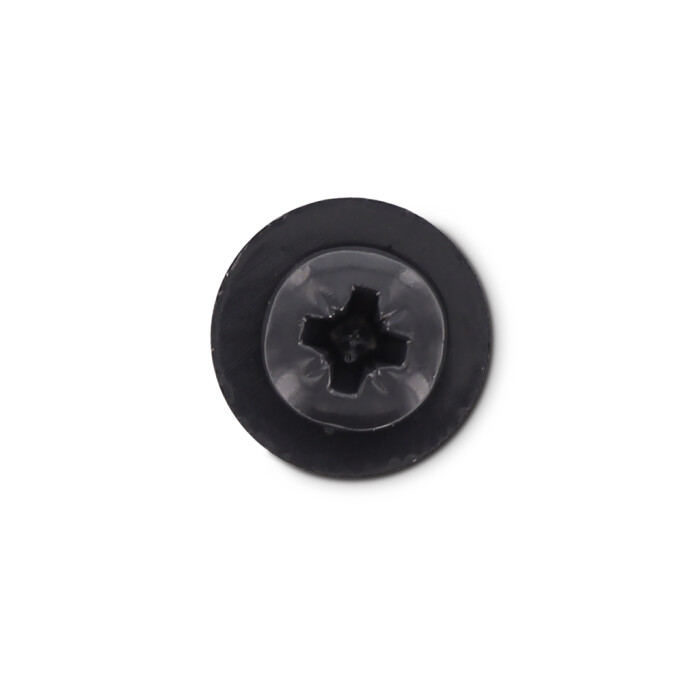

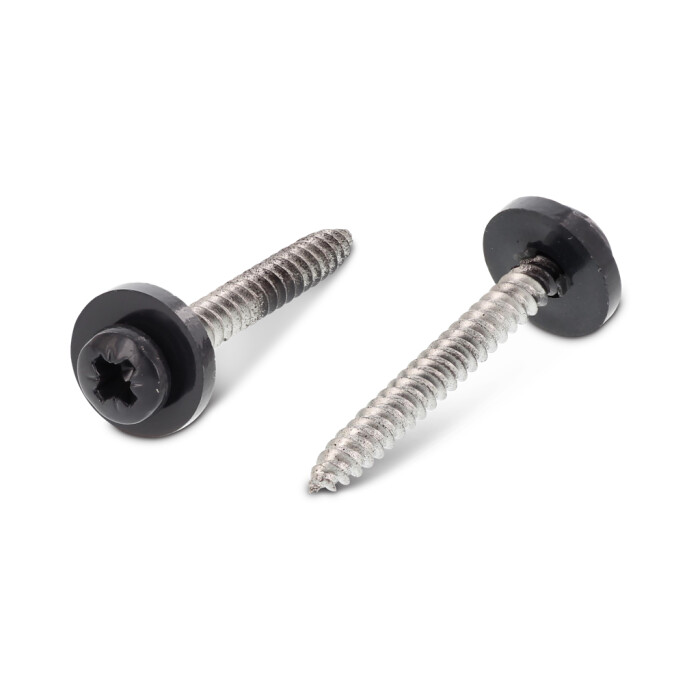

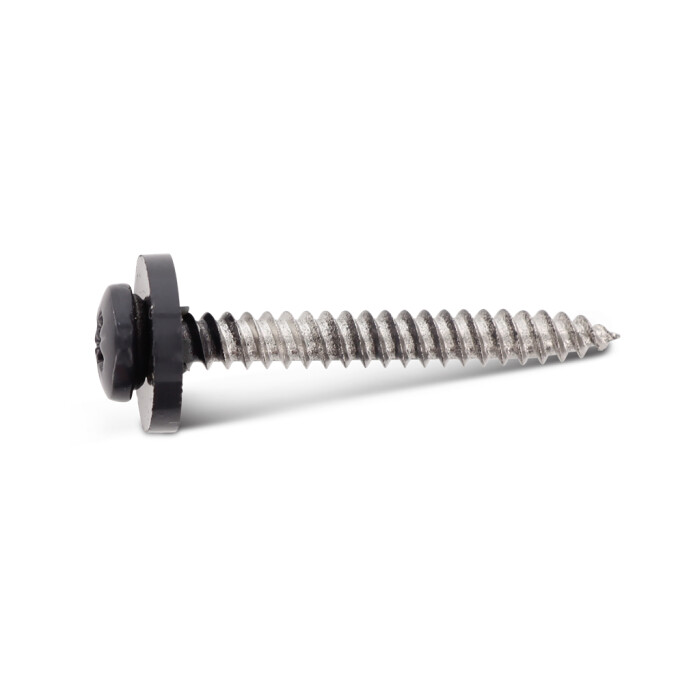

Art. 9066 A2 C 3,9X16 Z - RAL 7016
Window board caphead screws polyamid washer grey
Item number
90662701639 16
Materials
A2
EAN
3610500458194
Net weight per 100 pc.
0,170 kg
Item number
90662701639 16
Materials
A2
EAN
3610500458194
Net weight per 100 pc.
0,170 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

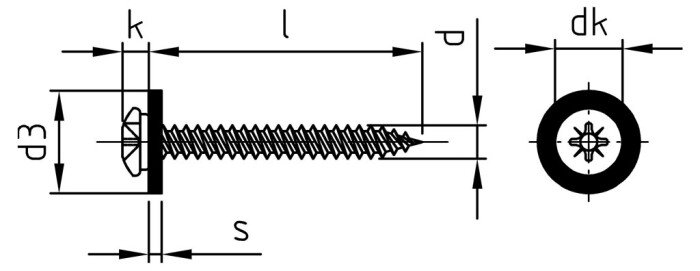

Technical data
| Diameter (d) | 3,9 mm |
| strength class (Rm) | 500 N/mm² |
| Total length (l) | 16 mm |
| Type of thread | Sheet thread |
| Drive size | PZ2 |
| Drive shape (drive) | Pozidrive |
| diameter imperial (inch) (d) | 7 " |
| total length imperial (inch) ((Inch)) | 0,625 " |
| Head shape | Capping head |
| Diameter of head (dk) | 7,9 mm |
| Height of head (k) | 3,1 mm |
| Washer diameter (d3) | 12 mm |
| Measurement s (s) | 1,5 mm |
| Colour | RAL 7016 - anthracite gray |
Product information
Applications
Sheet metal screw connections in sanitary and heating installation.Use in damp rooms and outdoor applications without significant levels of chlorides or sulphur dioxides.
The sheets of the parts to be screwed together must be larger than the thread pitch of the screw selected.
Area of use
Metal construction, FacadeFEATURES
- RAL 7016Product Information Files
