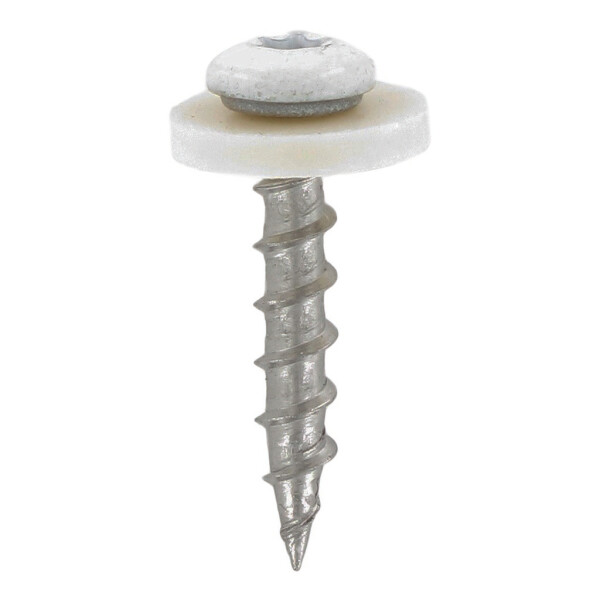

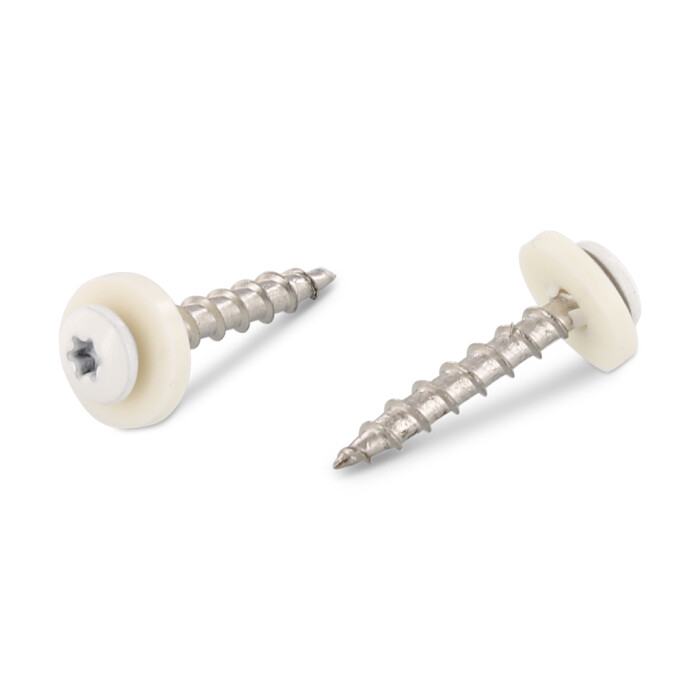

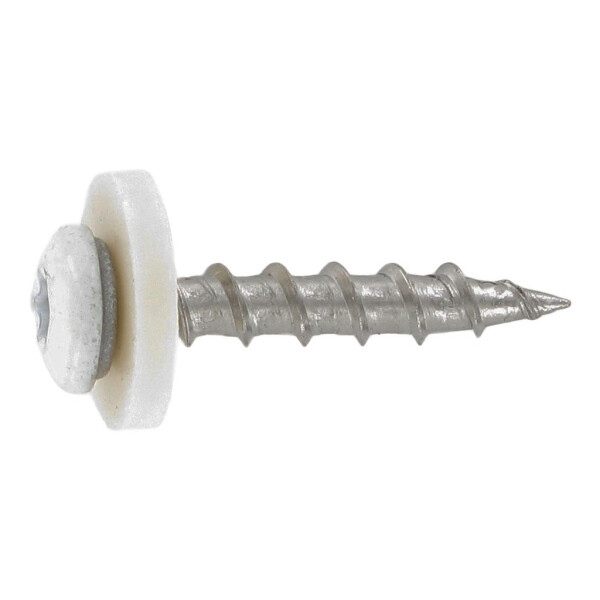

Art. 9066 A2 C 3,9X19 TX15 coarse thread -RAL 9003
Tapping screws with caphead polyamid washer white
Item number
906621TG39 19
Materials
A2
EAN
3610500323782
Net weight per 100 pc.
0,190 kg
Packaging units:
200
Item number
906621TG39 19
Materials
A2
EAN
3610500323782
Net weight per 100 pc.
0,190 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

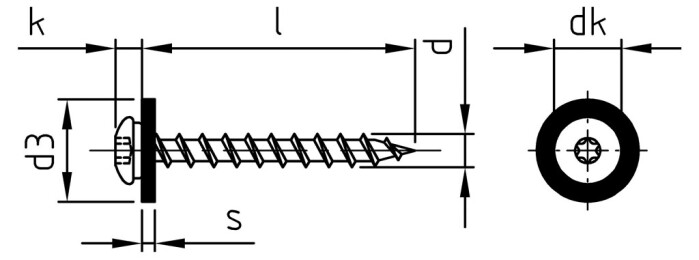

Technical data
| Diameter (d) | 3,9 mm |
| strength class (Rm) | 500 N/mm² |
| Total length (l) | 19 mm |
| Type of thread | Sheet thread |

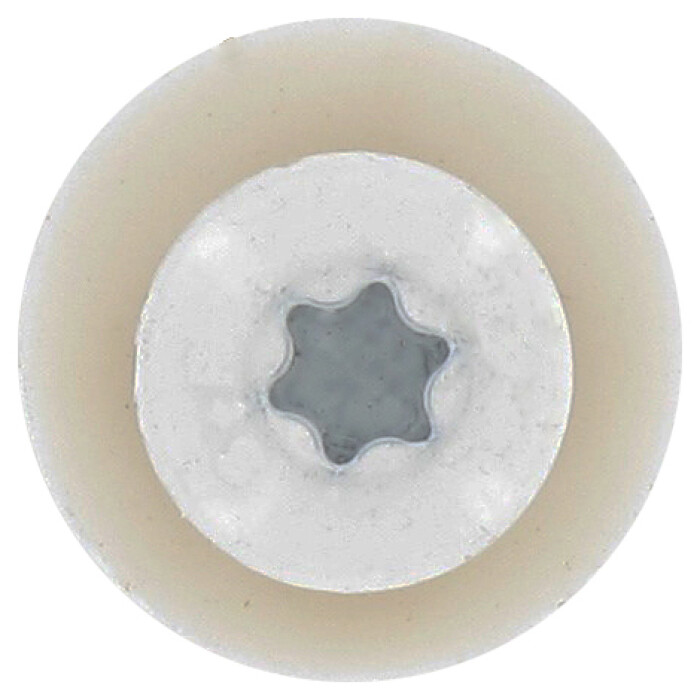

| Drive size | TX15 |
| Drive shape (drive) | Inner multi-tooth |
| diameter imperial (inch) (d) | 7 " |
| total length imperial (inch) ((Inch)) | 0,75 " |
| Head shape | Capping head |
| Diameter of head (dk) | 7,9 mm |
| Height of head (k) | 3,1 mm |
| Washer diameter (d3) | 12 mm |
| Measurement s (s) | 1,5 mm |
| Colour | RAL 9003 - signal white |
Product information
Product benefits
Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
Sheet metal screw connections in sanitary and heating installation.Use in damp rooms and outdoor applications without significant levels of chlorides or sulphur dioxides.
The sheets of the parts to be screwed together must be larger than the thread pitch of the screw selected.
Area of use
Metal construction, FacadeProduct Information Files
