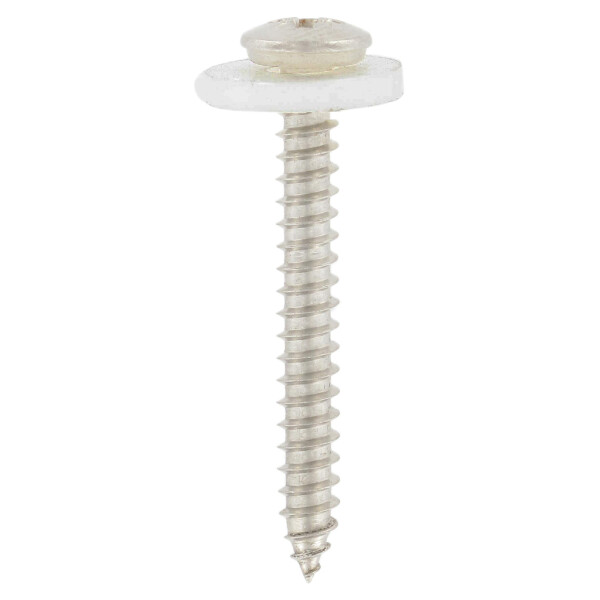

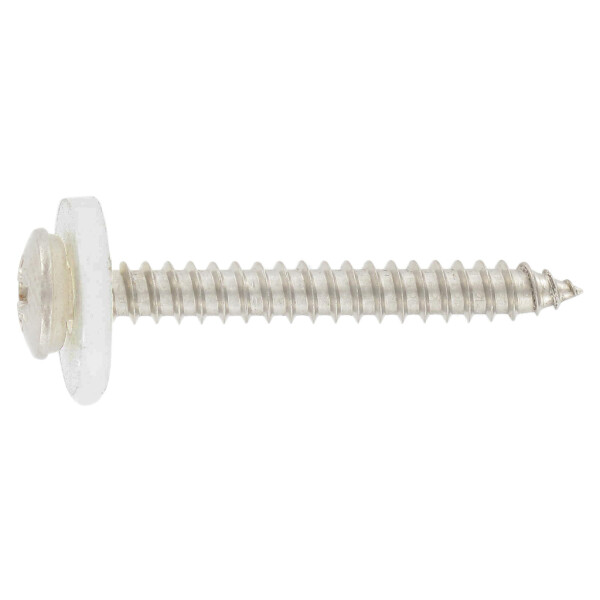

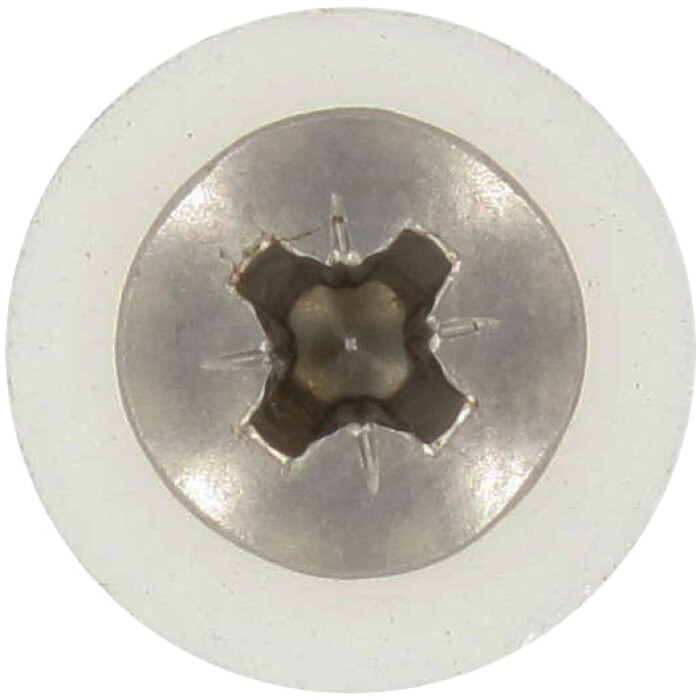

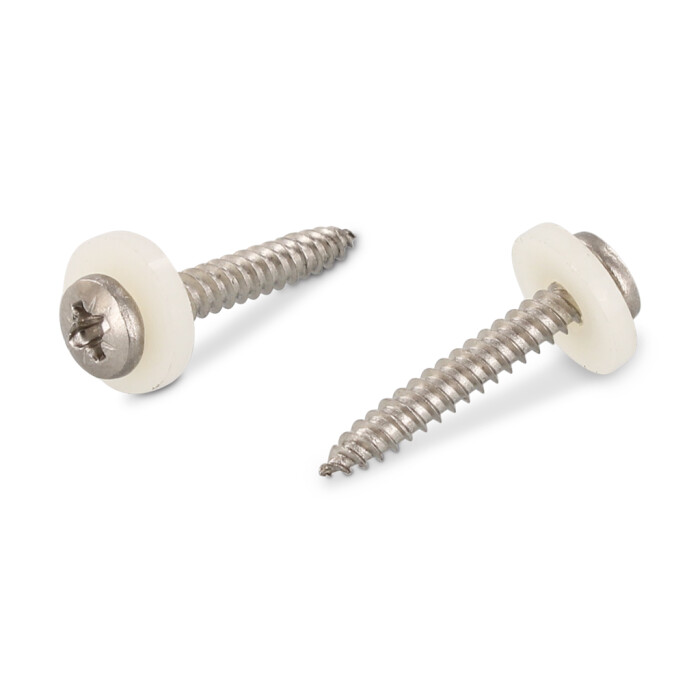

Art. 9066 A2 C 3,9X19 Z
Tapping screws with caphead polyamid washer nature
Item number
90662039 19
Materials
A2
EAN
3610500323737
Net weight per 100 pc.
0,191 kg
Item number
90662039 19
Materials
A2
EAN
3610500323737
Net weight per 100 pc.
0,191 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

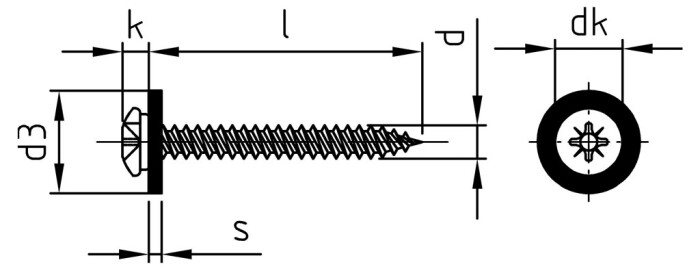

Technical data
| Diameter (d) | 3,9 mm |
| Total length (l) | 19 mm |
| strength class (Rm) | 500 N/mm² |
| Type of thread | Sheet thread |
| Head shape | Capping head |
| Diameter of head (dk) | 7,9 mm |
| Drive size | PZ2 |
| Drive shape (drive) | Pozidrive |
| Height of head (k) | 3,1 mm |
| diameter imperial (inch) (d) | 7 " |
| total length imperial (inch) ((Inch)) | 0,75 " |
| Washer diameter (d3) | 12 mm |
| Measurement s (s) | 1,5 mm |
Product information
Applications
Sheet metal screw connections in sanitary and heating installation.Use in damp rooms and outdoor applications without significant levels of chlorides or sulphur dioxides.
The sheets of the parts to be screwed together must be larger than the thread pitch of the screw selected.
Area of use
Metal construction, FacadeProduct Information Files
Share Art. 9066 A2 C 3,9X19 Z
