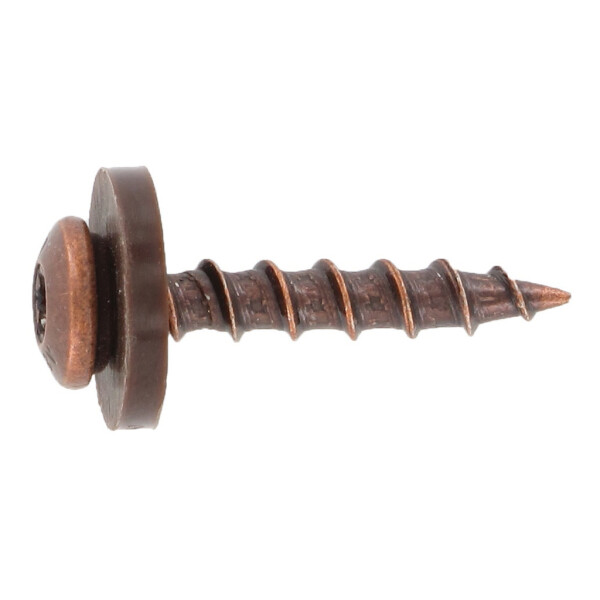

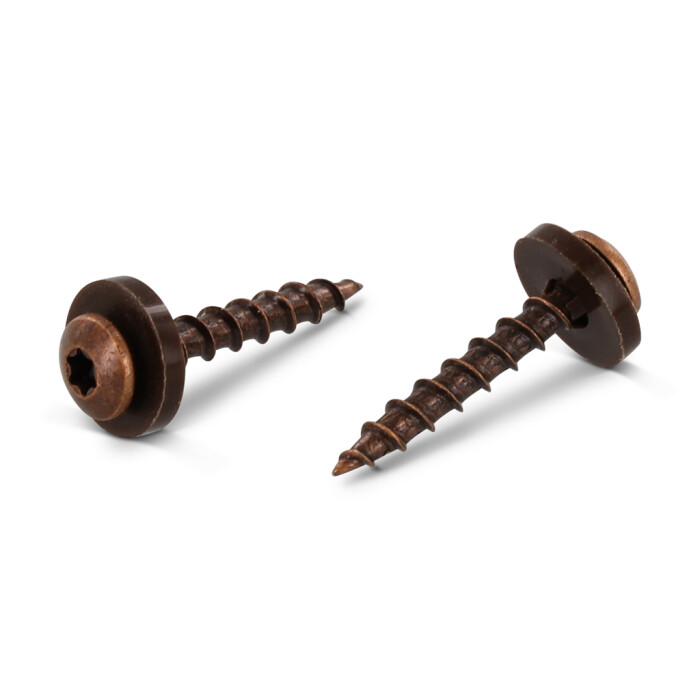

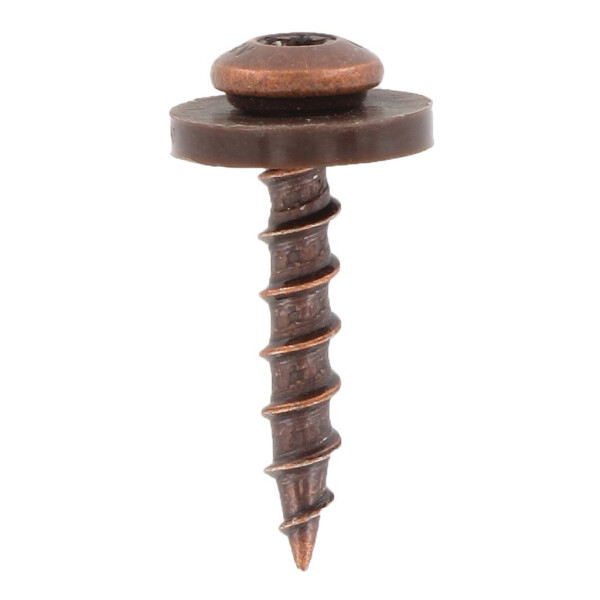

Art. 9066 A2 C 3,9X32 TX15 coarse thread - Brown
Tapping screws with caphead polyamid washer brown
Item number
906622TG39 32
Materials
A2
EAN
3610500323966
Net weight per 100 pc.
0,260 kg
Packaging units:
200
Item number
906622TG39 32
Materials
A2
EAN
3610500323966
Net weight per 100 pc.
0,260 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

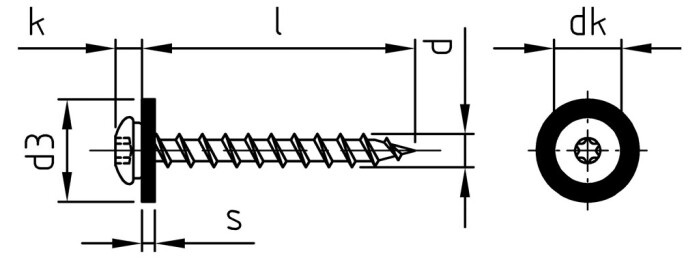

Technical data
| Diameter (d) | 3,9 mm |
| Total length (l) | 32 mm |
| strength class (Rm) | 500 N/mm² |
| Type of thread | Sheet thread |
| Head shape | Capping head |
| Diameter of head (dk) | 7,9 mm |
| Drive size | TX15 |
| Drive shape (drive) | Inner multi-tooth |
| Height of head (k) | 3,1 mm |
| diameter imperial (inch) (d) | 7 " |
| total length imperial (inch) ((Inch)) | 1,25 " |
| Washer diameter (d3) | 12 mm |
| Measurement s (s) | 1,5 mm |
Product information
Product benefits

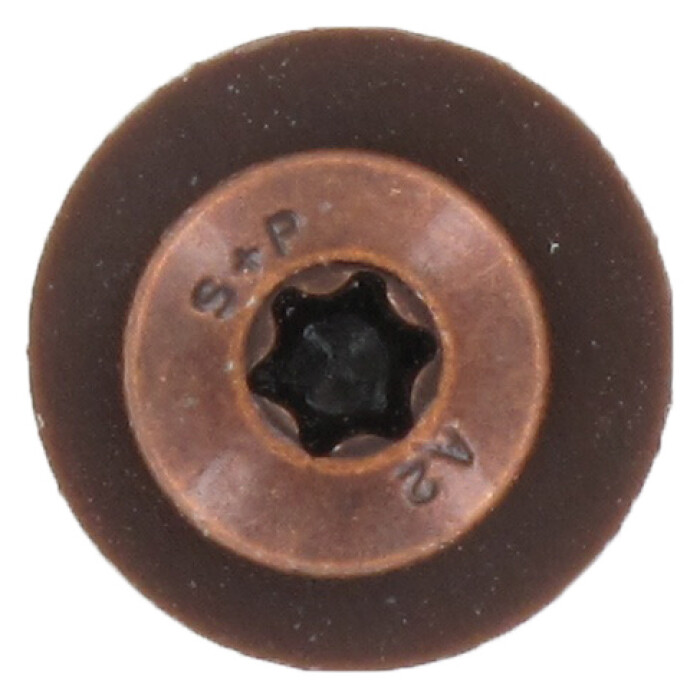

Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
Sheet metal screw connections in sanitary and heating installation.Use in damp rooms and outdoor applications without significant levels of chlorides or sulphur dioxides.
The sheets of the parts to be screwed together must be larger than the thread pitch of the screw selected.
Area of use
Metal construction, FacadeProduct Information Files
