Art. 9082 A2 M 8X110 TX25

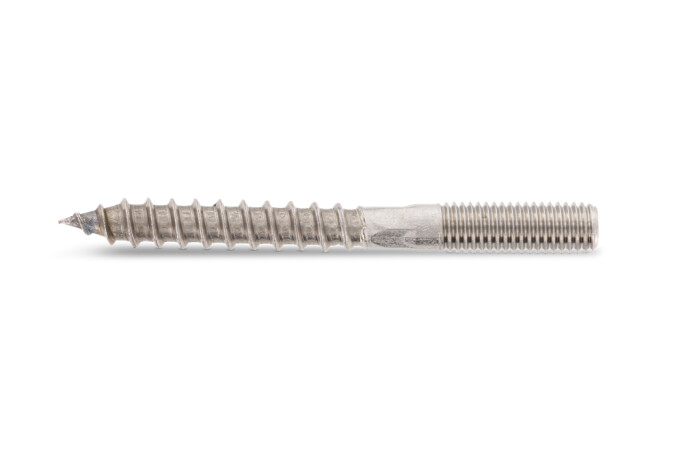

Hanger bolts with six lobe drive
Item number
90822T8 110
Materials
A2
EAN
3610500459313
Net weight per 100 pc.
2,731 kg
Packaging units:
100
Item number
90822T8 110
Materials
A2
EAN
3610500459313
Net weight per 100 pc.
2,731 kg
- Technical data
- Product information
- Product Information Files

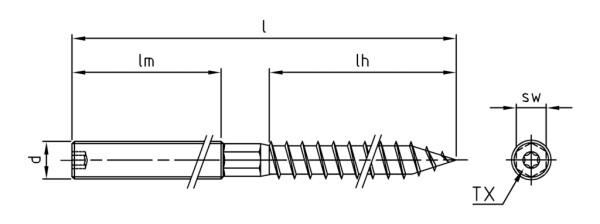

Technical data
| Diameter (d) | 8 mm |
| strength class (Rm) | 700 N/mm² |
| Total length (l) | 110 mm |
| Type of thread | Wooden thread/Metric |
| Drive size | TX25 |

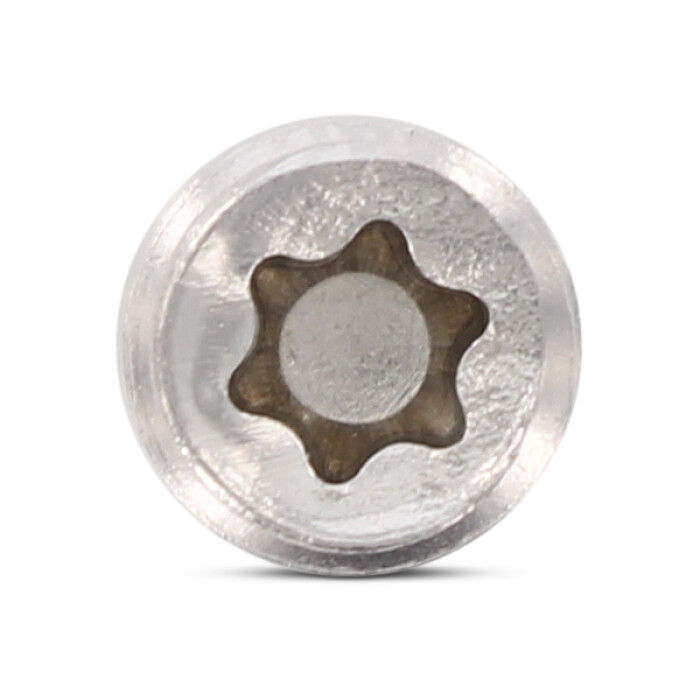

| Drive shape (drive) | Inner multi-tooth |
| Length of wooden thread (lh) | 47 mm |
| Length of metric thread (lm) | 40 mm |
Product information
Applications
Ceiling suspension for cable trays, pipes, truss etc.For fixing of substructures in the solar sector
For the solar dealer
Various versions and completions
Area of use
Solar, Metal construction, sanitary, electricFEATURES

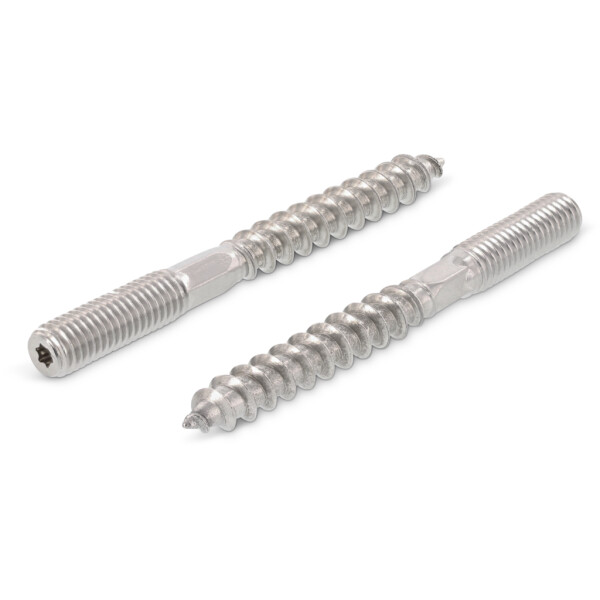

- Ø8 no spanner surface between the threads: - lengths 50-70mm and 150-160mm- Ø8 with spanner surface (AF6) between the threads: - lengths 80-140mm
