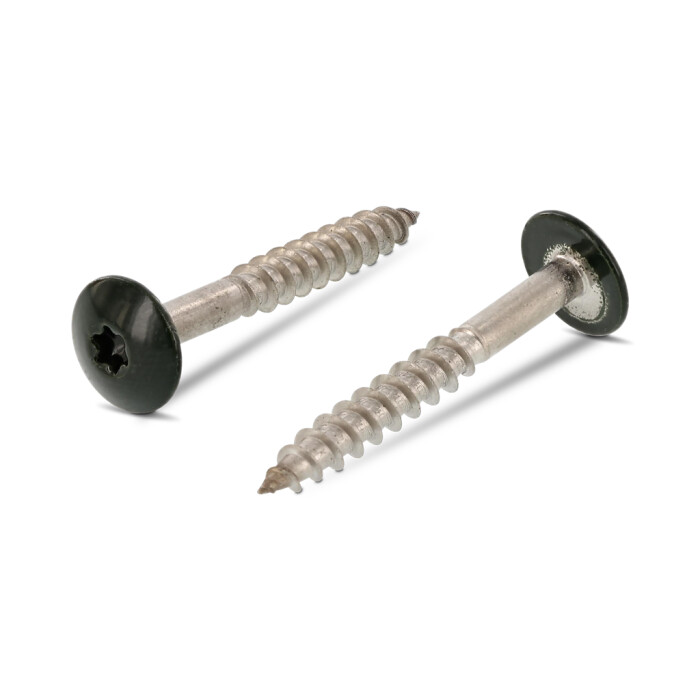

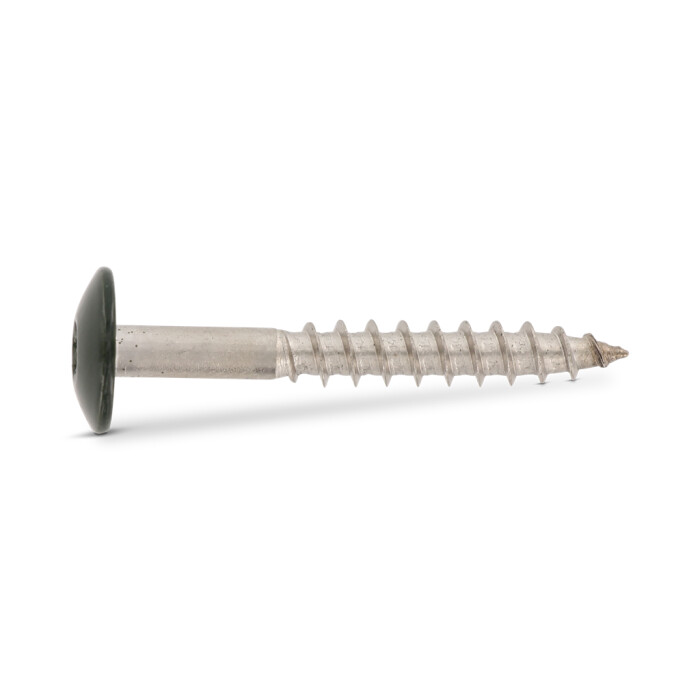

Art. 9086 A2 4,8X32 TX20 - RAL 6009
Truss head wood screws with six lobe drive
Item number
90862600948 32
Materials
A2
EAN
3610500460180
Net weight per 100 pc.
0,385 kg
Packaging units:
100
Item number
90862600948 32
Materials
A2
EAN
3610500460180
Net weight per 100 pc.
0,385 kg
- Technical data
- Product information
- Product Information Files
- Catalog page
Technical data
| Diameter (d) | 4,8 mm |
| strength class (Rm) | 500 N/mm² |
| Total length (l) | 32 mm |
| Type of thread | Wooden thread |
| Drive size | TX20 |
| Drive shape (drive) | Inner multi-tooth |
| Head shape | Cross recessed pan head |
| Diameter of head (dk) | 12,3 mm |
| Height of head (k) | 2,7 mm |
| Colour | RAL 6009 - fir green |
| Thread length (b) | 22 mm |
Product information
Product benefits

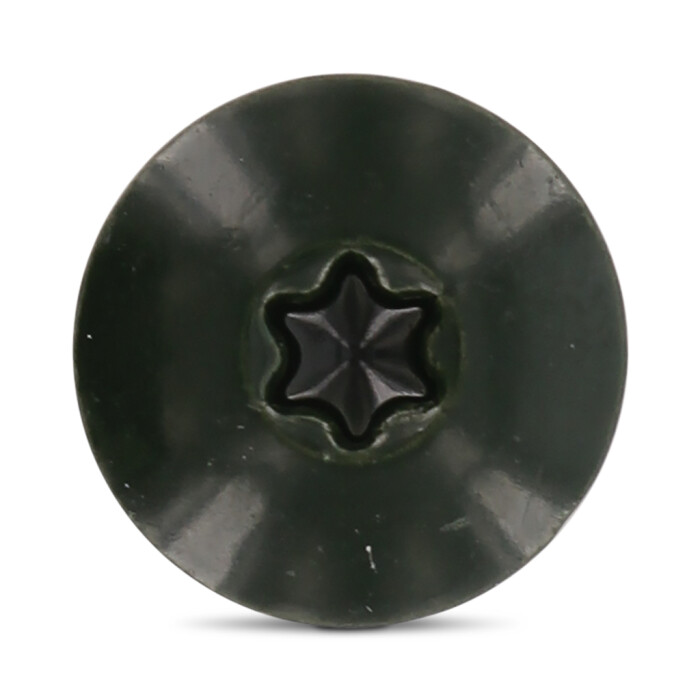

Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
- Ideal for screw connections in the wood area.- Adapt itself to the colour of the fixing component.
Area of use
Timber constructionFEATURES
- Powder-coated- RAL 6009
