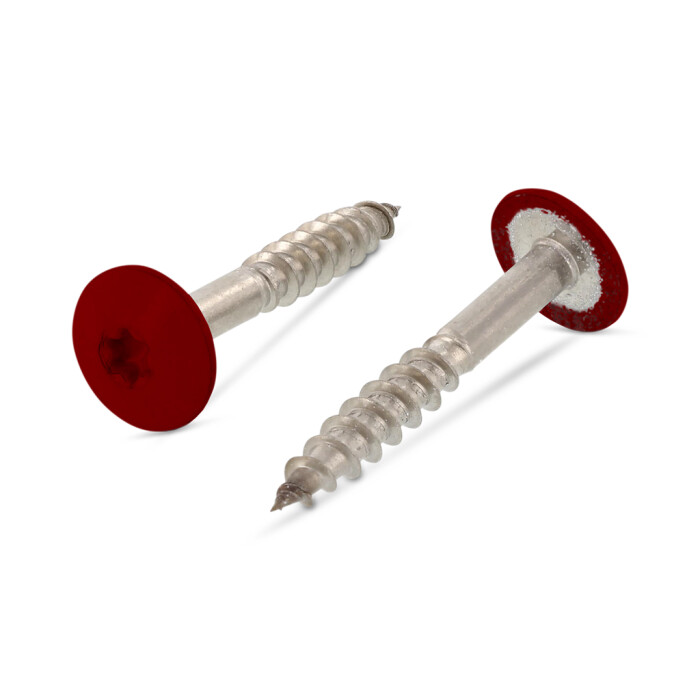

Art. 9086 A2 5,5X45 TX20 - RAL 3009
Truss head wood screws with six lobe drive
Item number
90862300955 45
Materials
A2
EAN
3610500459948
Net weight per 100 pc.
0,466 kg
Item number
90862300955 45
Materials
A2
EAN
3610500459948
Net weight per 100 pc.
0,466 kg
- Technical data
- Product information
- Product Information Files
- Catalog page
Technical data
| Diameter (d) | 5,5 mm |
| strength class (Rm) | 500 N/mm² |
| Total length (l) | 45 mm |
| Type of thread | Wooden thread |
| Drive size | TX20 |
| Drive shape (drive) | Inner multi-tooth |
| Head shape | Cross recessed pan head |
| Diameter of head (dk) | 12,3 mm |
| Height of head (k) | 2,7 mm |
| Colour | RAL 3009 - oxide red |
| Thread length (b) | 33 mm |
Product information
Product benefits
Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
- Ideal for screw connections in the wood area.- Adapt itself to the colour of the fixing component.
Area of use
Timber constructionFEATURES
- Powder-coated- RAL 3009
