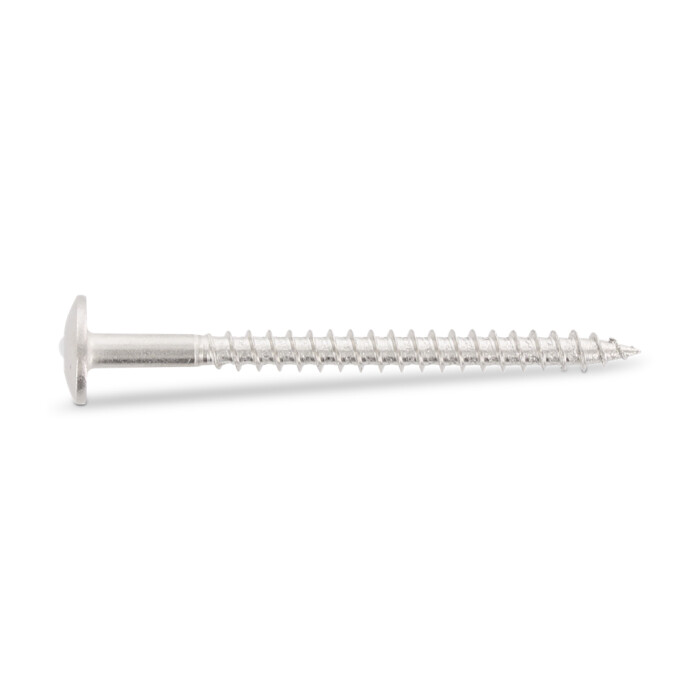

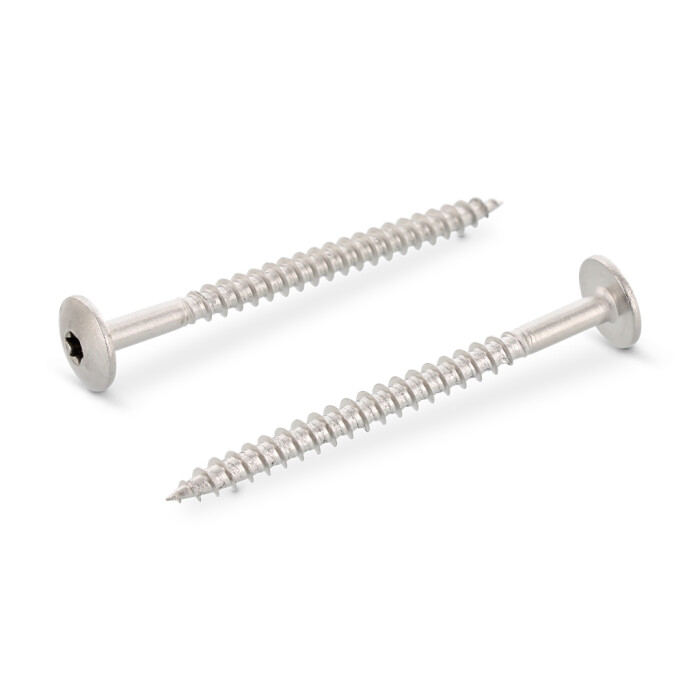

Art. 9086 A4 4,8X70 TX20
Truss head wood screws with six lobe drive
Item number
9086448 70
Materials
A4
EAN
3610500461392
Net weight per 100 pc.
0,680 kg
Packaging units:
100
1.200
43.200
Item number
9086448 70
Materials
A4
EAN
3610500461392
Net weight per 100 pc.
0,680 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

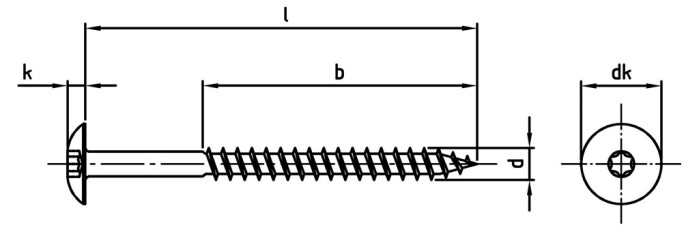

Technical data
| Diameter (d) | 4,8 mm |
| strength class (Rm) | 500 N/mm² |
| Total length (l) | 70 mm |
| Type of thread | Wooden thread |
| Drive size | TX20 |
| Drive shape (drive) | Inner multi-tooth |
| Head shape | Cross recessed pan head |
| Diameter of head (dk) | 12,3 mm |
| Height of head (k) | 2,7 mm |
| Thread length (b) | 58 mm |
Product information
Product benefits

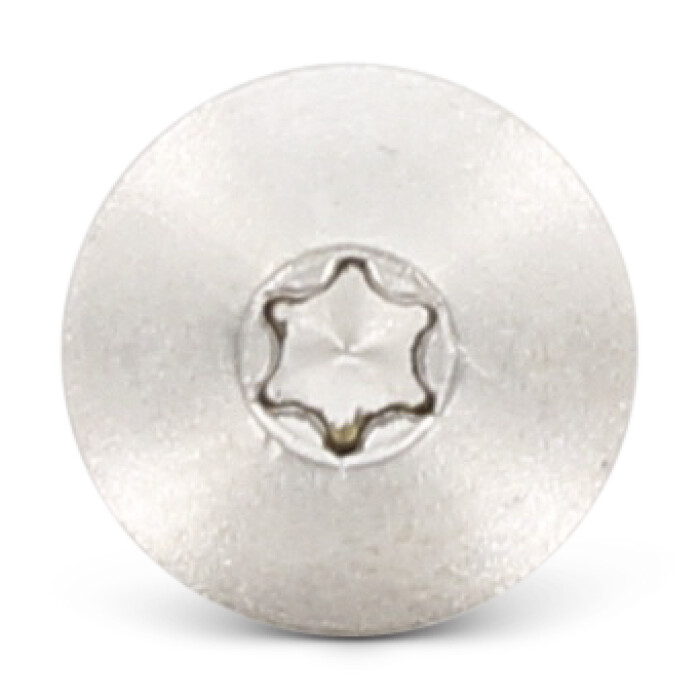

Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
Ideal for screw connections in the wood area.Area of use
Timber constructionFEATURES
- blancProduct Information Files
