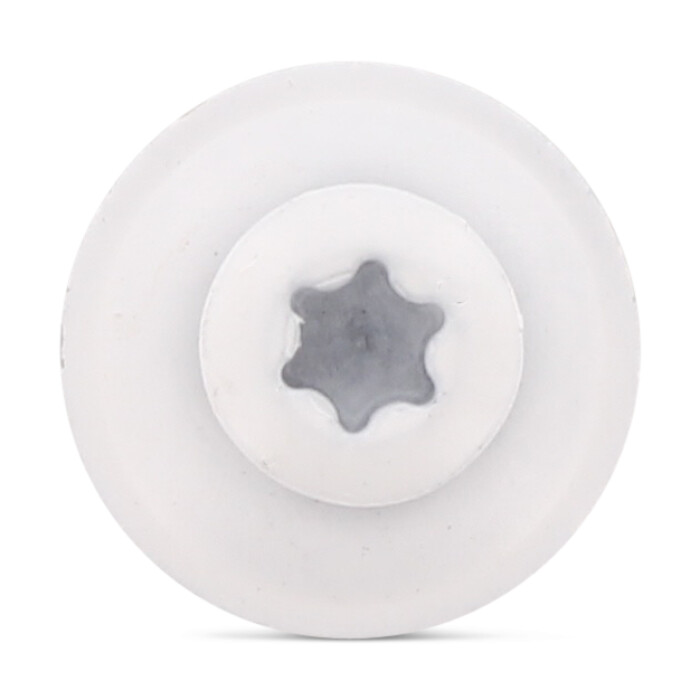

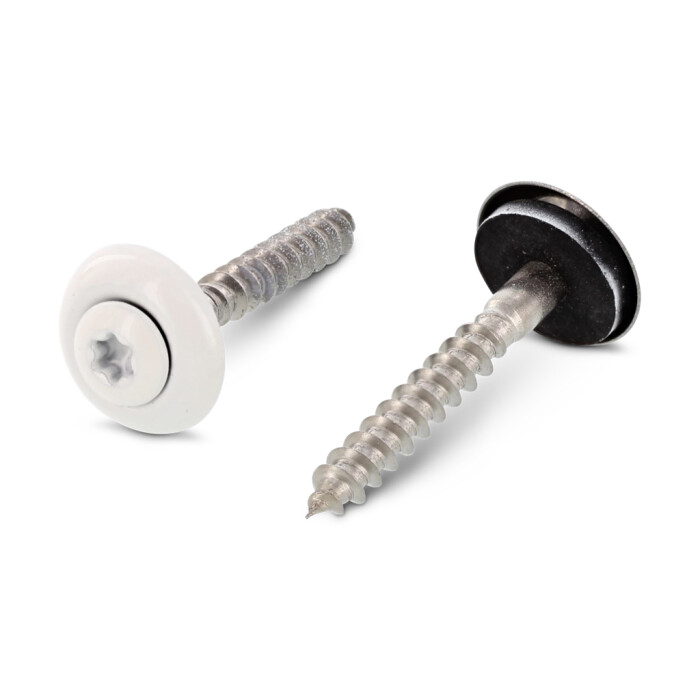

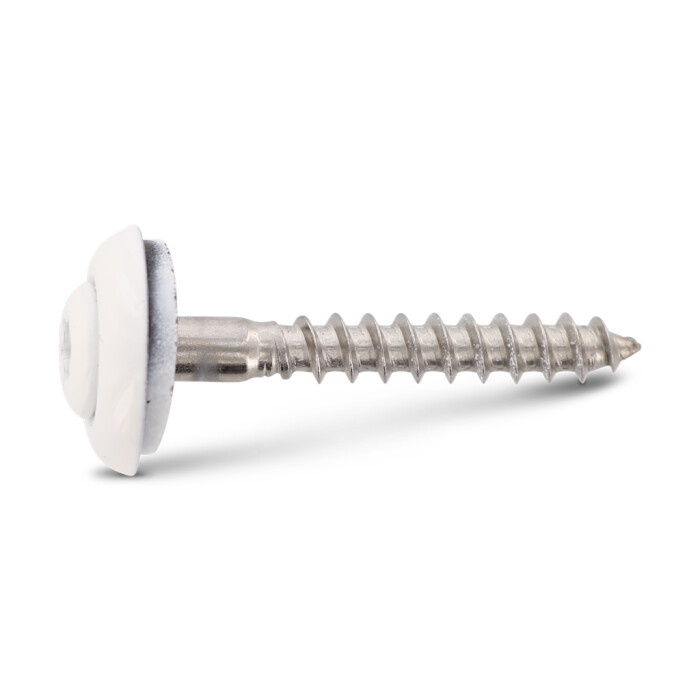

Art. 9087 A2 4,5X100 TX20 - RAL 9010
RSD CSK woodscrews, separated sealing washer 15 mm
Item number
9087232901045 100
Materials
A2
EAN
3610500463181
Net weight per 100 pc.
0,980 kg
Packaging units:
100
1.200
28.800
Item number
9087232901045 100
Materials
A2
EAN
3610500463181
Net weight per 100 pc.
0,980 kg
- Technical data
- Product information
- Product Information Files
- Catalog page
Technical data
| Diameter (d) | 4,5 mm |
| Total length (l) | 100 mm |
| Type of thread | Wooden thread |
| Head shape | pan head |
| Diameter of head (dk) | 8,3 mm |
| Height of head (k) | 2,35 mm |
| Colour | RAL 9010 - pure white |
| Drive size | TX20 |
| Drive shape (drive) | Inner multi-tooth |
| strength class (Rm) | 500 N/mm² |
Product information
Product benefits
- Lots of EPDM sealing washer- Weatherproof through the EPDM sealing washer
- Air and Water impermeable through the EPDM sealing washer
Wobble-free driving feature
The TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
- For outdoor use and in damp conditions.- Sheet metal processing on wooden structures.
- For use with delusions of Attica sheets.
Area of use
Facade, SolarFEATURES
- painted head- RAL 9010
