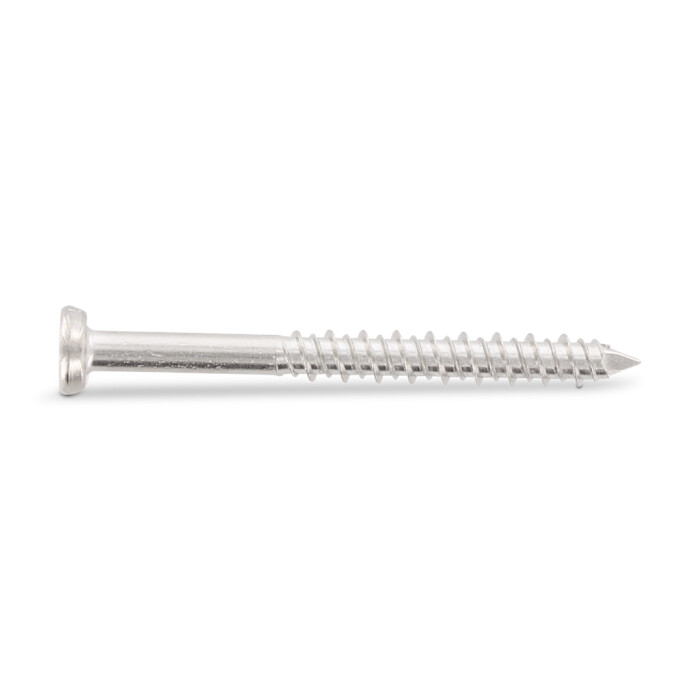

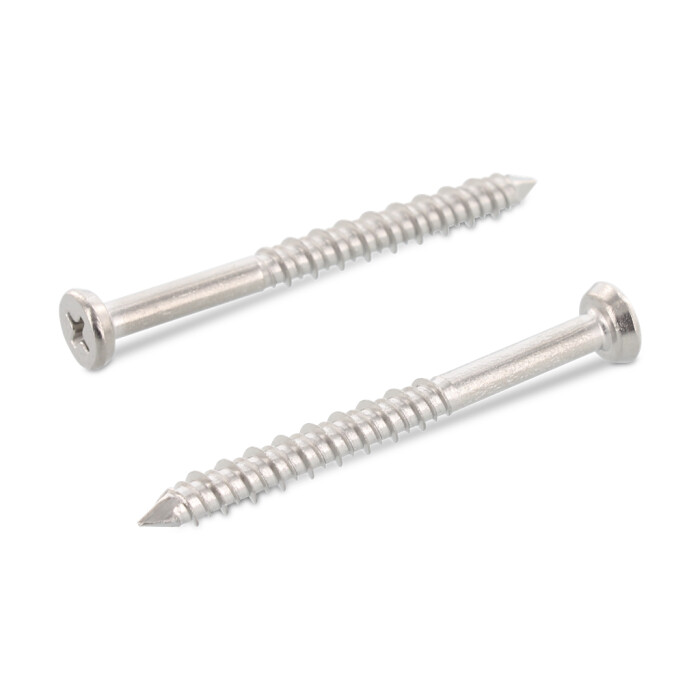

Art. 9092 A2 5,5X25 H
Cladding screws with Hi-Lo thread and center point
Item number
9092255 25
Materials
A2
EAN
3610500334801
Net weight per 100 pc.
0,410 kg
Packaging units:
100
Item number
9092255 25
Materials
A2
EAN
3610500334801
Net weight per 100 pc.
0,410 kg
- Technical data
- Product information
- Catalog page

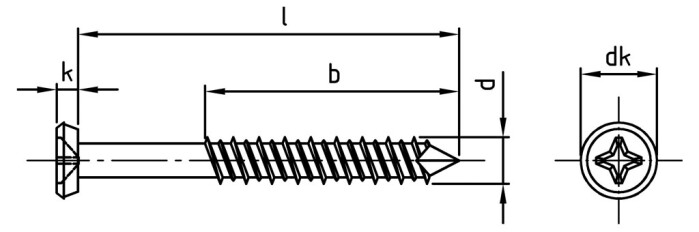

Technical data
| Diameter (d) | 5,5 mm |
| Total length (l) | 25 mm |
| strength class (Rm) | 500 N/mm² |
| Type of thread | HI-LO thread |
| Head shape | Capping head |
| Diameter of head (dk) | 9,2 mm |

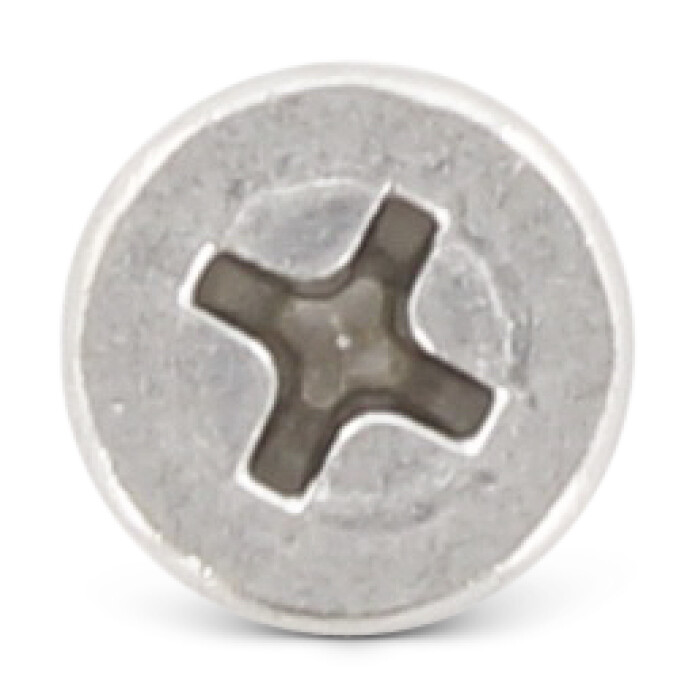

| Drive shape (drive) | Phillips |
| Thread length (b) | 20 mm |
| Height of head (k) | 3 mm |
Product information
Applications
Ideal for screw on the facade.Area of use
FacadeShare Art. 9092 A2 5,5X25 H
