Art. 9094 A4 M 20X55

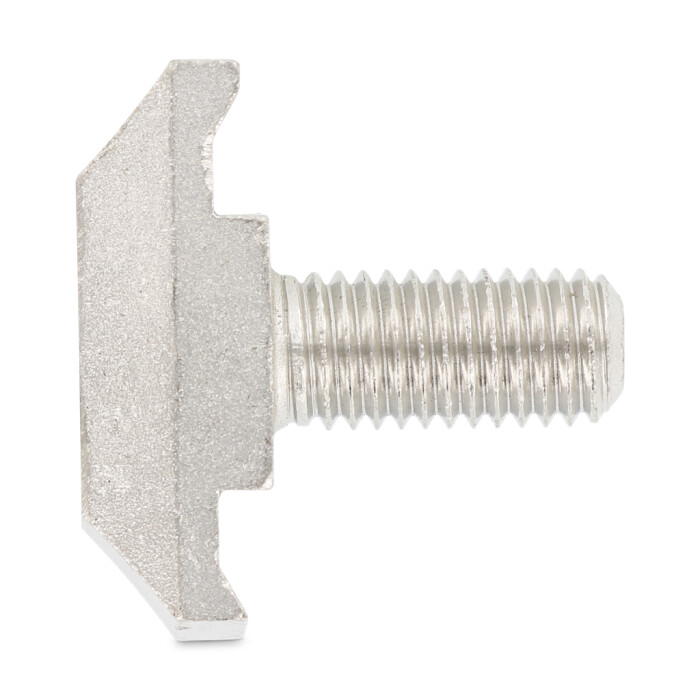

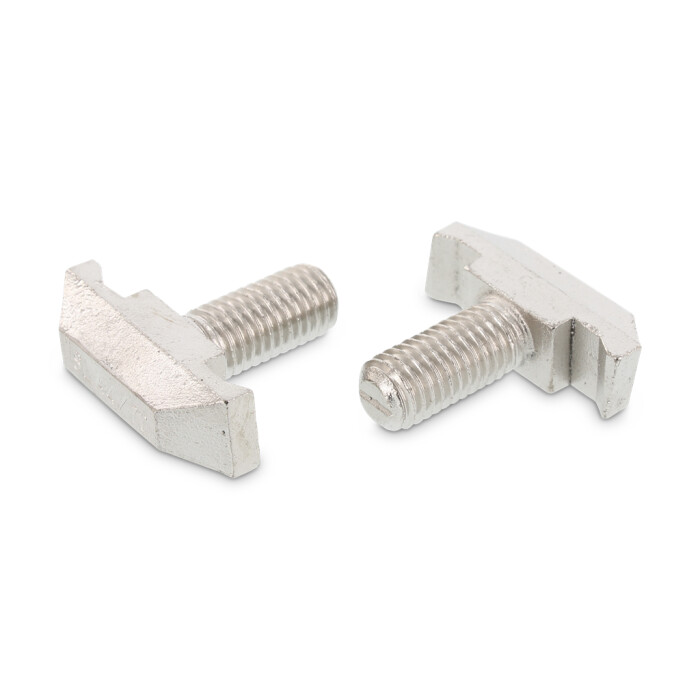

Hammer head bolts, type 50/30
Item number
9094420 55
Materials
A4
EAN
3610500336409
Net weight per 100 pc.
19,971 kg
Packaging units:
100
Item number
9094420 55
Materials
A4
EAN
3610500336409
Net weight per 100 pc.
19,971 kg
- Technical data
- Product information
- Catalog page

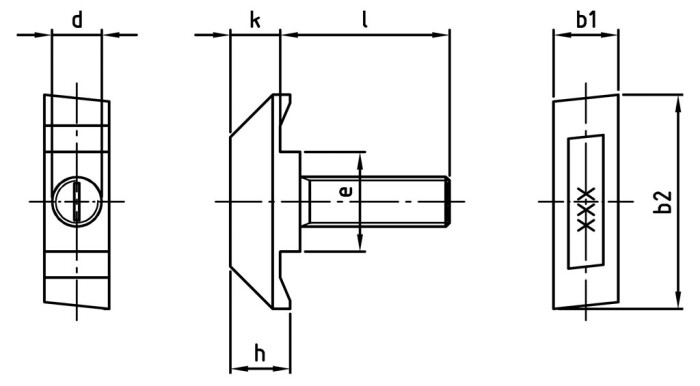

Technical data
| Diameter (d) | 20 mm |
| Total length (l) | 55 mm |
| strength class (Rm) | 500 N/mm² |
| Type of thread | Metric |

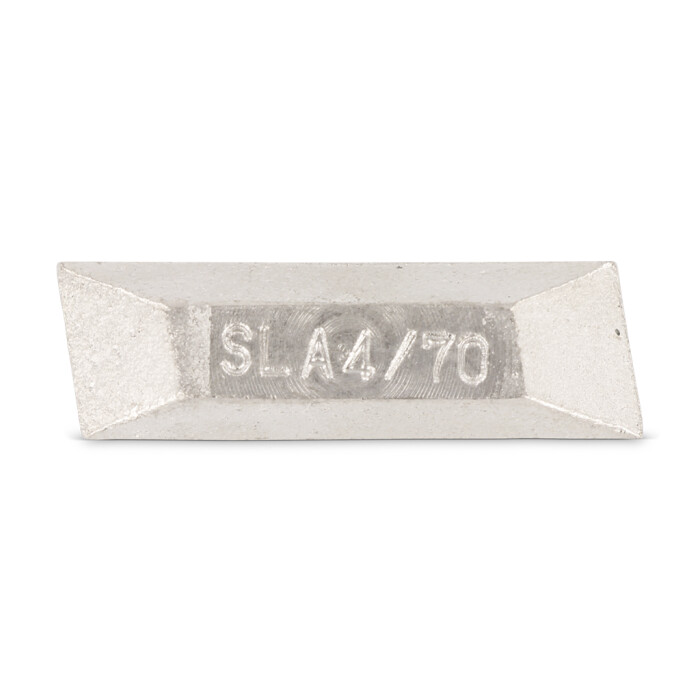

| Head shape | hook head |
| Height of head (k) | 12 mm |
| Measurement h (h) | 14,5 mm |
| Width of head (b1) | 21 mm |
| Length of head (b2) | 42 mm |
| Measurement e (e) | 20,5 mm |
Product information
Applications
Ideal for screw in the metal industry and the solar industry.Area of use
Solar, Metal constructionShare Art. 9094 A4 M 20X55
