Art. 9098 A2 A 6,5X75

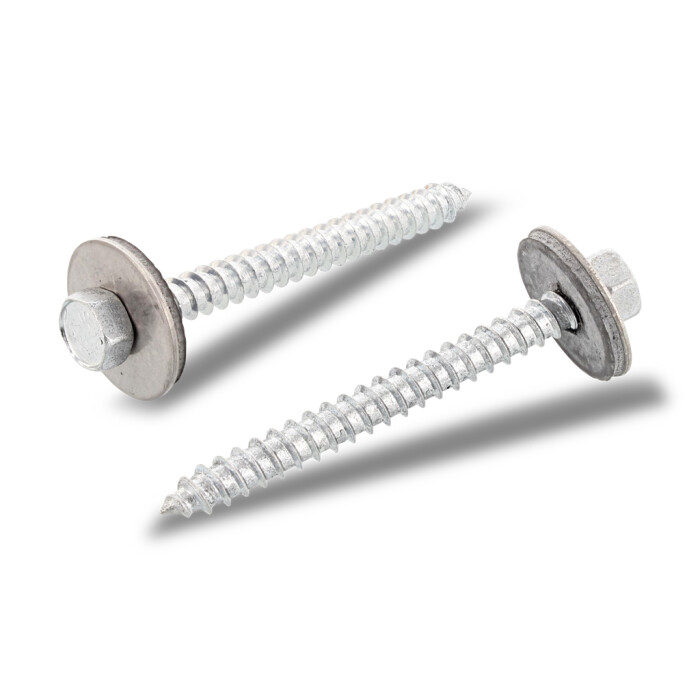

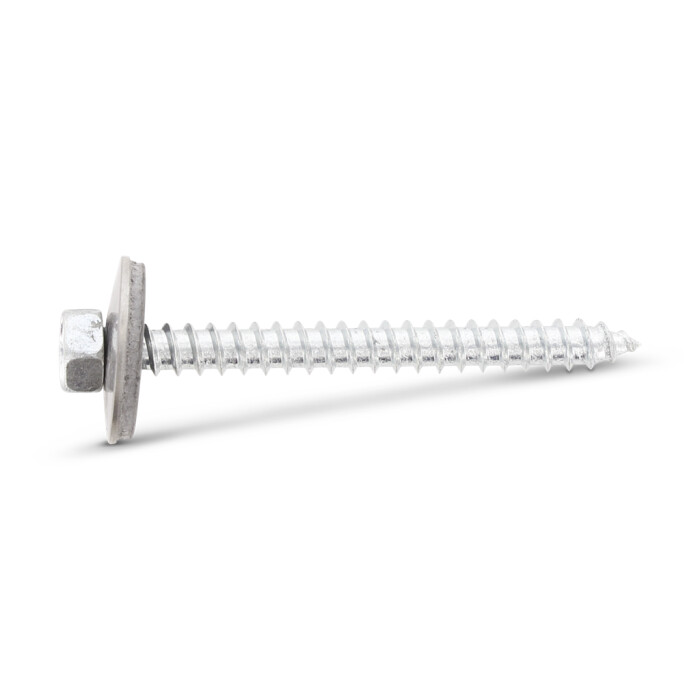

Cladding screws with point sealing washer 22 mm
Item number
9098265 75
Materials
A2
EAN
3610500340390
Net weight per 100 pc.
1,755 kg
Packaging units:
100
800
19.200
Item number
9098265 75
Materials
A2
EAN
3610500340390
Net weight per 100 pc.
1,755 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

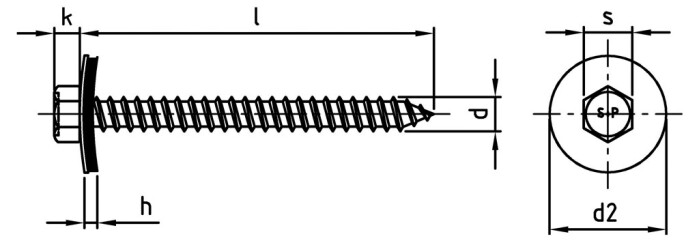

Technical data
| Diameter (d) | 6,5 mm |
| Total length (l) | 75 mm |
| Type of thread | Wooden thread |
| Head shape | Hexagonal head |
| Height of head (k) | 4,8 mm |
| Drive size | SW 3/8" |

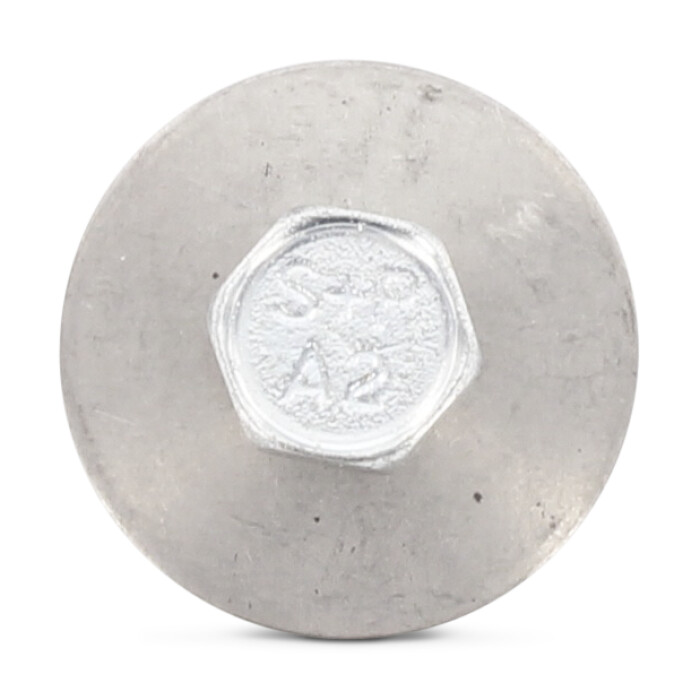

| Drive shape (drive) | Outer hex |
| strength class (Rm) | 500 N/mm² |
| Thread length (b) | 64 mm |
| Outer diameter of washer (d2) | 22 mm |
Product information
Applications
For securing profile sheets and fibre cement slabs to timber, steel and aluminium substructuresPlease refer to the building-authority approvals for the relevant hole diameters
Timber: Observe a minimum screw-in depth of 30 mm
Steel: In the case of metal substructures, the tip should protrude
Area of use
Facade, Metal construction, Timber construction, SolarFEATURES
- type A- Coarse thread with tip for timber substructures and thin sheet metal < 3mm
- ETA-13/0178 valid from L 75 mm
- Fastening screws for sandwich panels
