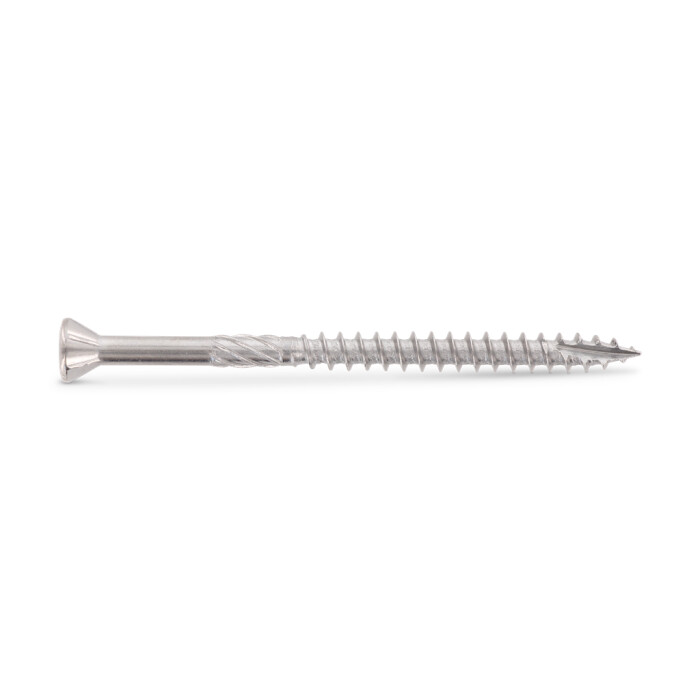

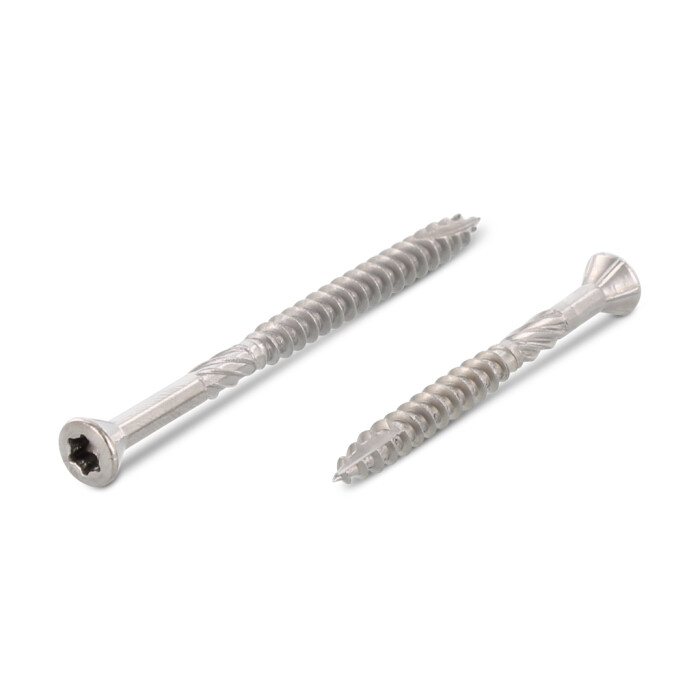

Art. 9242 AISI 410 4,0X30/18 TX15

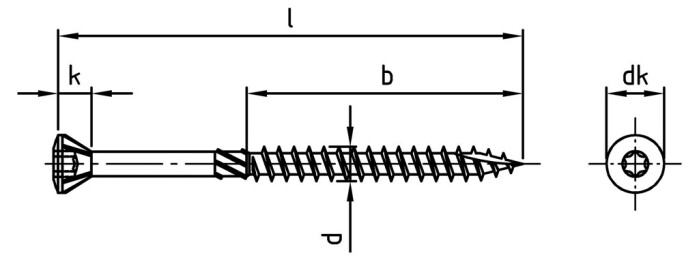

Technical data

Diameter (d)	4 mm
Total length (l)	30 mm
Type of thread	Chipboardscrew thread
Head shape	Ornamental head
Diameter of head (dk)	6 mm
Height of head (k)	2,75 mm
Drive size	TX15
Drive shape (drive)	Inner multi-tooth
Thread length (b)	18 mm

Product information

Product benefits

milling ribs
The milling ribs ensure low screw-in torques even with high attachment parts
No predrilling
Predrilling is not needed in most cases. We do however always recommend testing the application.
Wobble-free drive

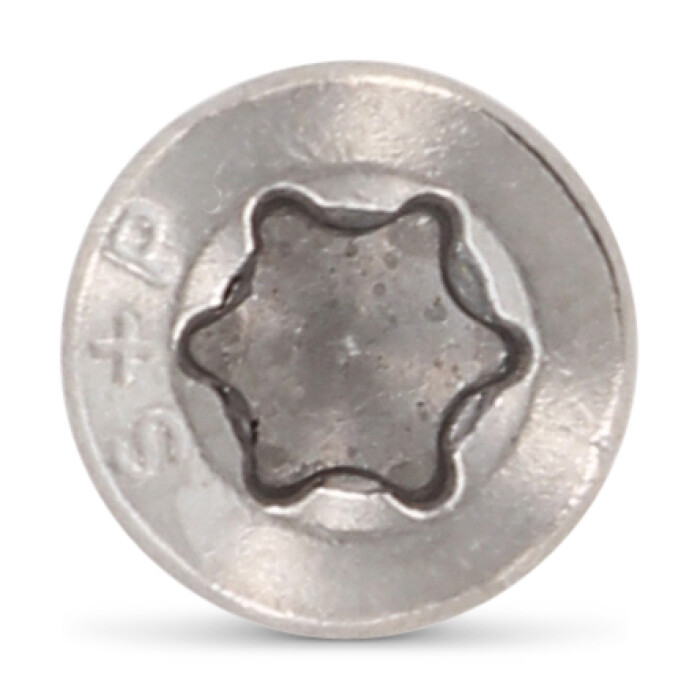

The TX internal, multi-tooth drive allows easy and secure screw driving from setting to countersinking.
Timber is not torn out
The cutting point ensures accurate attachment on hardwood without tearing out.
European technical Assessment ETA 11/0283
UK Technical Assessment UKTA 22/6473

Applications

Ideal for all companies involved in wood processing (carpenters, timber construction) and all horticulturists and landscapers for fastening timbers and landing stages. Also the ideal solution for hardwoods such as Bankirai, Massaranduba, and many more.

A minimum screw-in depth of 4 x the diameter must be ensured. A screw-in depth of 8 x the diameter should be achieved depending on the wood.

Area of use

Timber construction

FEATURES

- 60° Ornamental head
- cutting point
- milling ribs
- ribs under the head
- TX drive
- Anti-Friction-coating
