Art. 9243 AISI 410 5,5X100/36 TX25

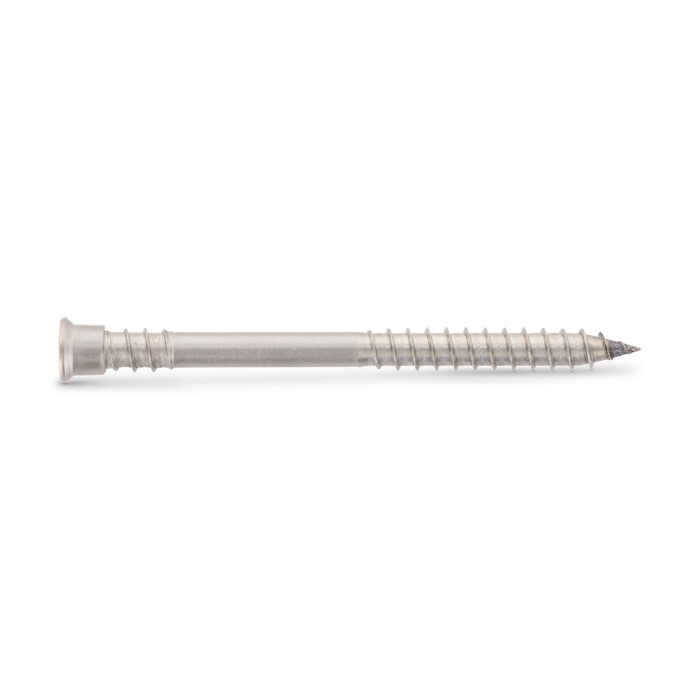

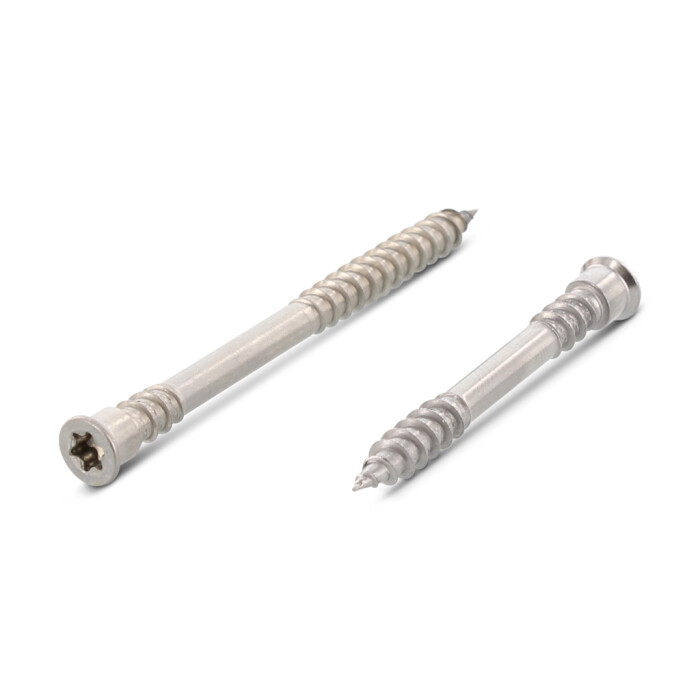

TBS-Drill, cyl. head terrace screws
Item number
9243400655 100
Materials
C1
EAN
3610500474866
Net weight per 100 pc.
1,255 kg
Packaging units:
100
1.800
43.200
Item number
9243400655 100
Materials
C1
EAN
3610500474866
Net weight per 100 pc.
1,255 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

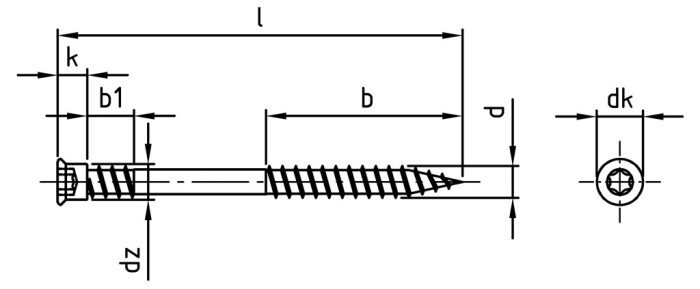

Technical data
| Diameter (d) | 5,5 mm |
| Measurement b1 (b1) | 8 mm |
| Total length (l) | 100 mm |
| Type of thread | Chipboardscrew thread |
| Head shape | Cylinder head |
| Diameter of head (dk) | 8 mm |
| Height of head (k) | 5,1 mm |
| Drive size | TX25 |
| Drive shape (drive) | Inner multi-tooth |
| Thread length (b) | 36 mm |
| Measurement dz (dz) | 6,15 mm |
Product information
Product benefits

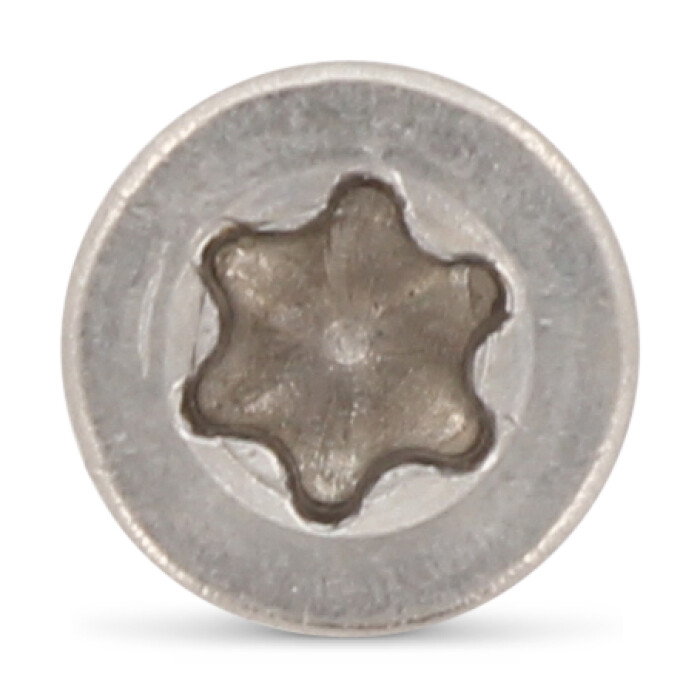

Wobble-free driveThe TX internal, multi-tooth drive allows easy and secure screw driving from setting to countersinking.
Cylinder head no distant wooden fibers.
The wooden fibers are drawn into the material by the cylinder head with the implied countersunk head. An optimal barefooted flooring originates by this special process.
Under head thread
This terrace screws fixed the wood through the lower head screw, thereby preventing movement.
European technical Assessment ETA 11/0283
UK Technical Assessment UKTA 22/6473
Applications
Ideal for all companies involved in wood processing (carpenters, timber construction) and all horticulturists and landscapers for fastening timbers and landing stages. Also the ideal solution for hardwoods such as Bankirai, Massaranduba, and many more.A minimum screw-in depth of 4 x the diameter must be ensured. A screw-in depth of 8 x the diameter should be achieved depending on the wood.
Area of use
Timber constructionFEATURES
- Cylinder head- Additional thread under the head
- Standard tip
- TX drive
- Anti-Friction-coating
