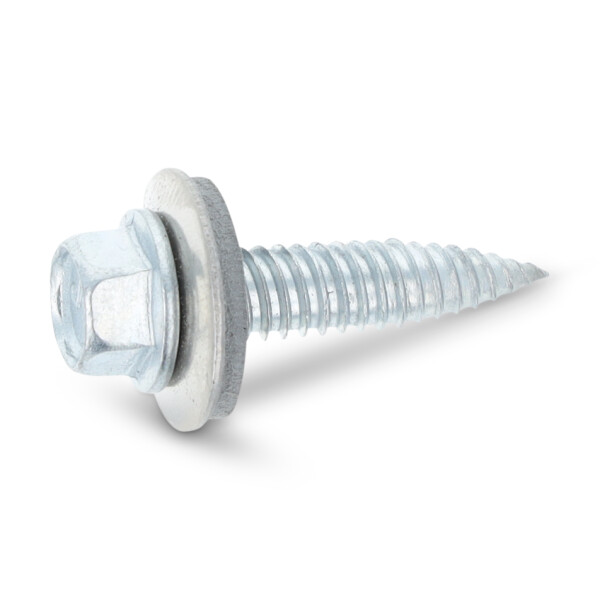

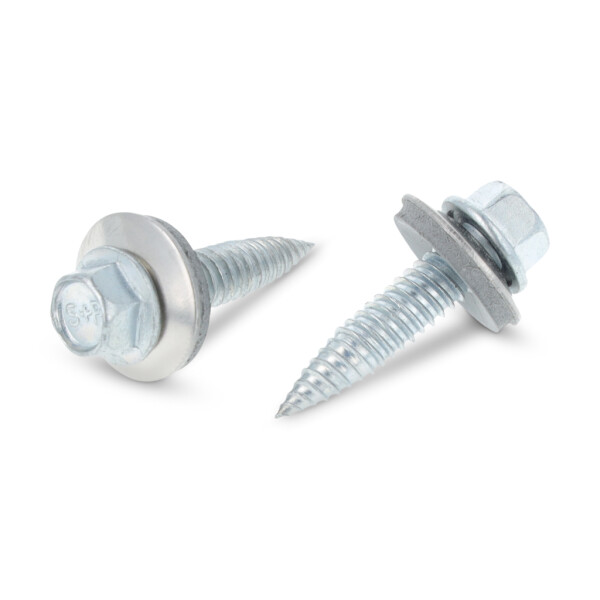

Art. 9506 A2/CV 6,0X25 DS 16 mm
Bi-Metal thin sheet screws with washer and fine thread
Item number
95062B260 25
Materials
Bi-metal A2
Net weight per 100 pc.
0,680 kg
Item number
95062B260 25
Materials
Bi-metal A2
Net weight per 100 pc.
0,680 kg
- Product information
- Product Information Files
Product information
Product benefits
- Drilling, shaping and joining in one step- Reduce costs
- No tool changes, no drilling tools
- European Technical Assessment ETA 23/1031
Applications
- For thin-profiled panels, butt joints in steel and aluminum profiled sheets and the attachment of the domes on trapezoidal profiles.- The optimum screw connection of trapeziumn holders (9032) on trapezium tin boards.
- BI-Metall - a special welding process joins the stainless steel screw to the hardened carbon steel tip
- Recommended tightening torque for steel: about 3Nm, 1 Nm to 0.8 mm thickness.
- Recommended tightening torque for aluminum: about 1Nm, 0.8 mm thickness under 0.5 Nm.
Area of use
Metal construction, Machine construction, SolarFEATURES
- 50% higher hold strengt- 50% of saving of time
- less connection points urgently
- nearly no drilling filings
- fine thread
- European Technical Assessment ETA 23/1031
Product Information Files
Share Art. 9506 A2/CV 6,0X25 DS 16 mm
