Art. 9510 A2/CV 4,8X50 TX25
BI-Metal countersunk wing drilling screws
Item number
95102B448 50
Materials
Bi-metal A2
EAN
3610500478369
Net weight per 100 pc.
0,600 kg
Packaging units:
100
Item number
95102B448 50
Materials
Bi-metal A2
EAN
3610500478369
Net weight per 100 pc.
0,600 kg
- Technical data
- Product information
- Product Information Files

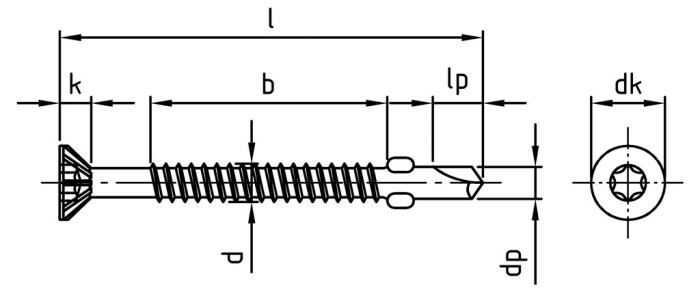

Technical data
| Diameter (d) | 4,8 mm |
| Total length (l) | 50 mm |
| Diameter of head (dk) | 9,5 mm |

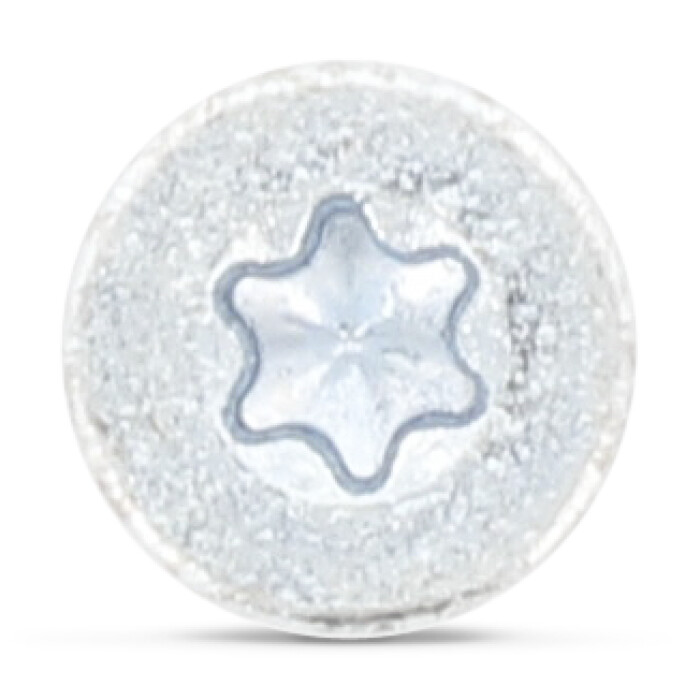

| Drive size | TX25 |
| Drive shape (drive) | Inner multi-tooth |
| Height of head (k) | 3,5 mm |
| Measurement dp (dp) | 4,1 mm |
| Drill bit length (lp) | 6,5 mm |
Product information
Product benefits
- Time savingsdrilling, to shape and connect in one step
- Cot costs no tool changes, no drilling tools
- Wings
to hinder on drilling advance in available the material
Applications
- Fastening of wood to steel substructuresArea of use
Metal construction, SolarFEATURES
- BI-Metal - a special welding process joins the stainless steel screw to the hardened carbon steel tip- countersunk head
- wing - these prevent a positive feed
- rips
- drill bit
Product Information Files
