Art. 9520 A2 K 6,5X130
Hexagon head self drilling wing screws, FCS 22mm
Item number
9520265 130
Materials
A2
EAN
3610500478420
Net weight per 100 pc.
3,050 kg
Packaging units:
100
Item number
9520265 130
Materials
A2
EAN
3610500478420
Net weight per 100 pc.
3,050 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

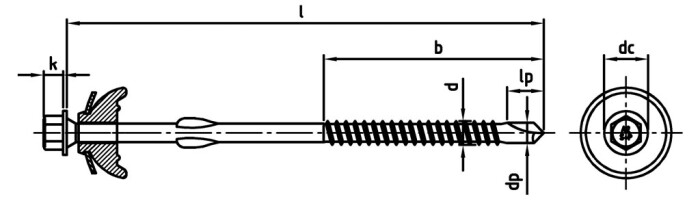

Technical data
| Diameter (d) | 6,5 mm |
| Total length (l) | 130 mm |
| Head shape | Hexagonal head |
| Drive size | SW 8 |
| Thread length (b) | 60 mm |
| Height of head (k) | 5,3 mm |
| flange diameter (dc) | 11,85 mm |
| Measurement dp (dp) | 5,5 mm |
| Drill bit length (lp) | 10 mm |
Product information
Product benefits
- Time savingsdrilling, to shape and connect in one step
- Cot costs
no tool changes, no drilling tools
- Wings
to hinder on drilling advance in available the material
Applications
For fittings of Well fiber cement sheets on timber substructures.Area of use
Metal construction, SolarFEATURES
- Hex drive - an attractive solution for optimum power transmission- FCS 22mm
- wing - these prevent a positive feed
- drill bit
Product Information Files
