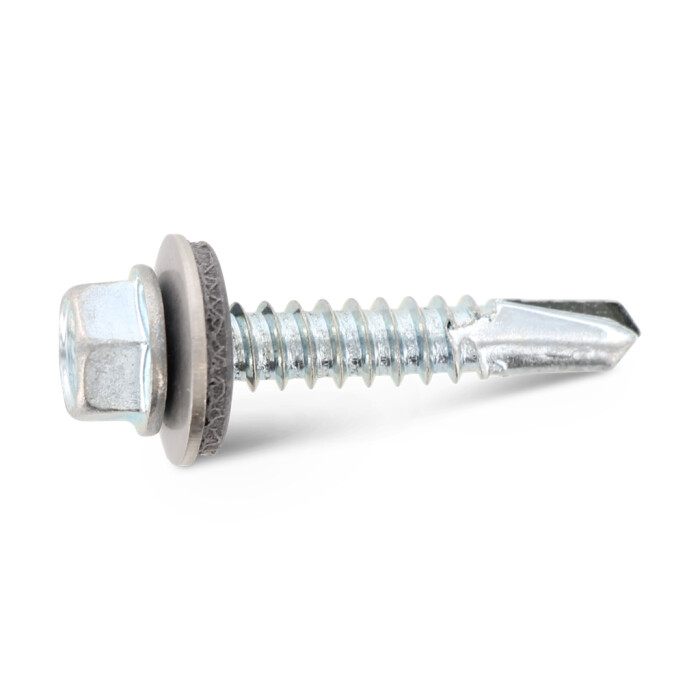

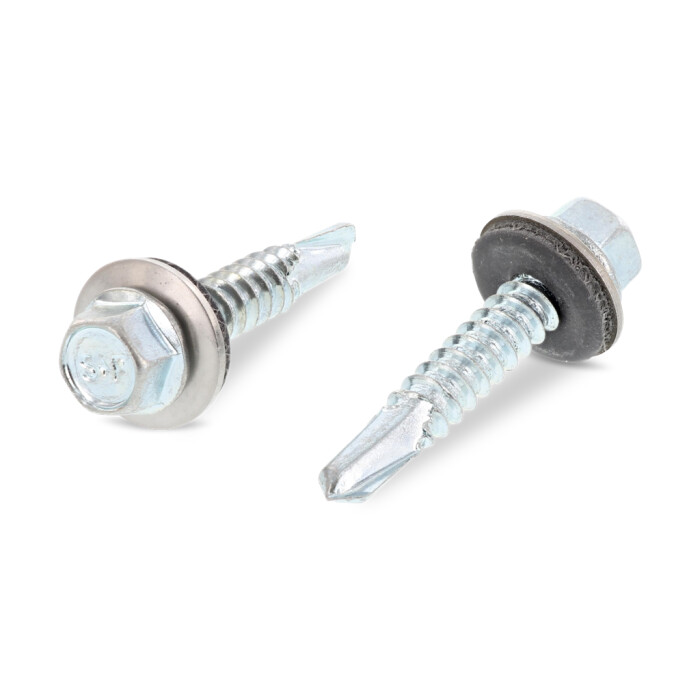

Art. 9604 A2 5,5X30 sealing washer 14 mm
Self-drilling screw
Item number
96042655 30
Materials
A2
EAN
3610500352799
Net weight per 100 pc.
0,710 kg
Packaging units:
500
Item number
96042655 30
Materials
A2
EAN
3610500352799
Net weight per 100 pc.
0,710 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

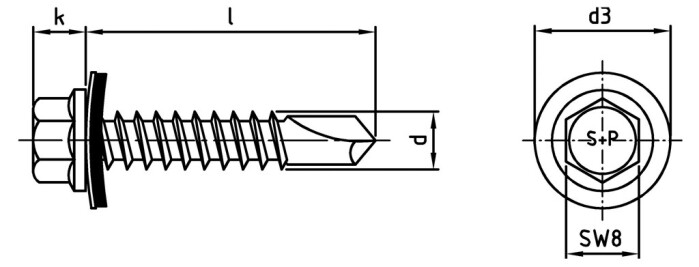

Technical data
| Diameter (d) | 5,5 mm |
| Total length (l) | 30 mm |
| Drive size | SW 8 |
| Height of head (k) | 5,45 mm |
| Washer diameter (d3) | 14 mm |
Product information
Product benefits
- Drilling, shaping and joining in one step- Cut costs
- No tool changes, no drilling tools
- Building-authority approval
- Ensures safety
Applications
For aluminium profile screw connections on aluminium substructures from 0,5 mm to 5,5 mmaluminium sheet profiles and sandwich elements on aluminium substructures
Recommended speed of processing:
1200 - 1800 rpm
Area of use
Metal construction, SolarFEATURES

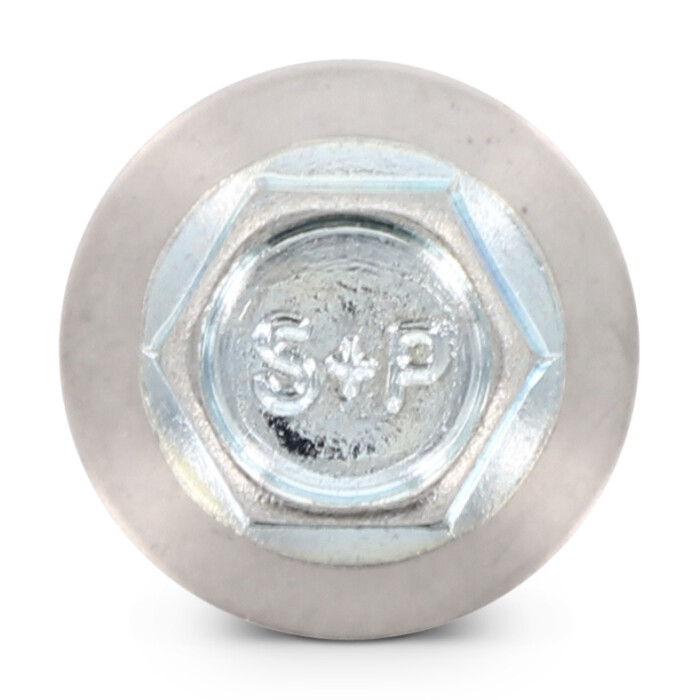

- Hex drive - an attractive solution for optimum power transmission- Weatherproof - stainless steel sealing washer with vulcanised-on elastomer
Product Information Files
Share Art. 9604 A2 5,5X30 sealing washer 14 mm
