DIN 1476 A2 3X5

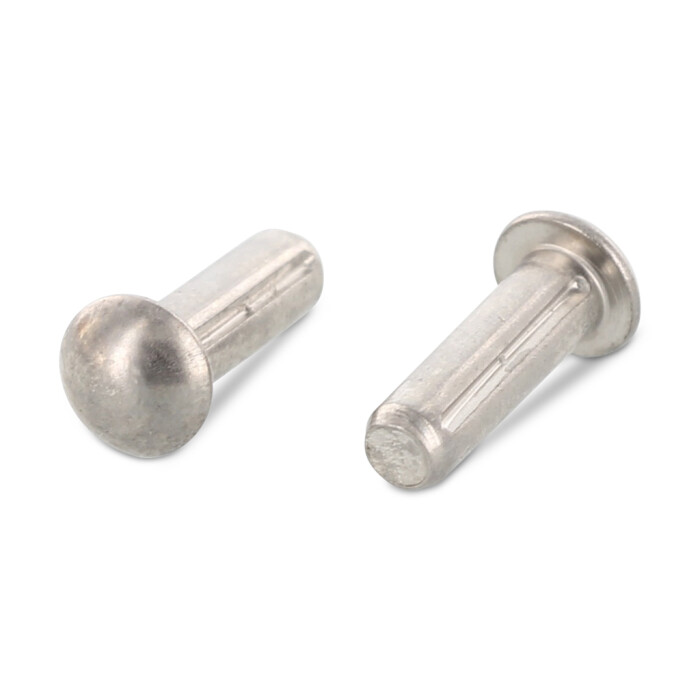

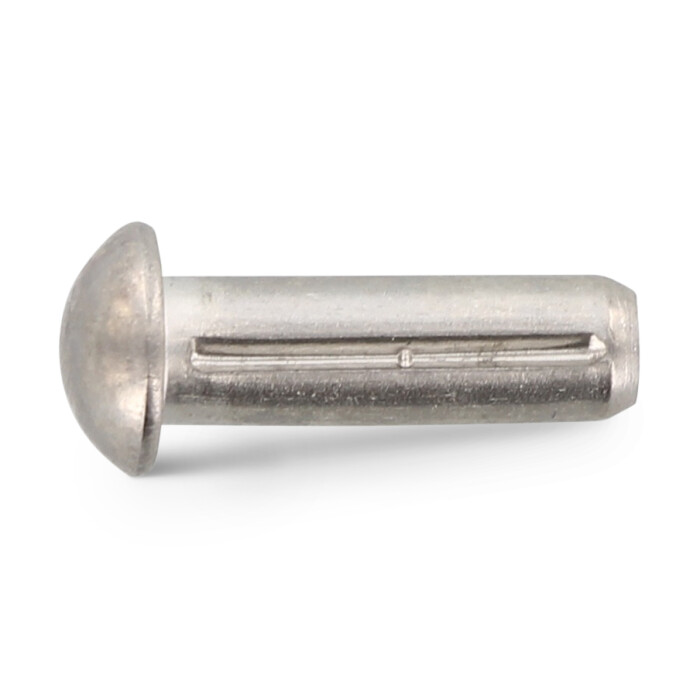

Grooved pins with round head
Item number
147623 5
Materials
A2
EAN
3610500193958
Net weight per 100 pc.
0,047 kg
Packaging units:
500
Item number
147623 5
Materials
A2
EAN
3610500193958
Net weight per 100 pc.
0,047 kg
- Technical data
- Product information
- Catalog page

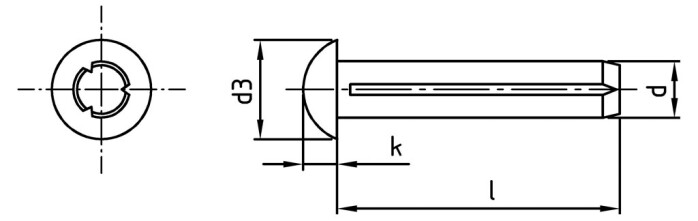

Technical data
| Diameter (d) | 3 mm |
| Total length (l) | 5 mm |
| strength class (Rm) | 500 N/mm² |
| Fibre length (c) | 1 mm |
| Height of head (k) | 1,8 mm |
| Measurement d3 (d3) | 5,2 mm |
| Head shape | Semi-circular head |
Product information
Applications
- For the attachment of thin sheets and plates- For axial securing a rotatable handle
- For fixing clamps
- As a hinge pin
Area of use
Machine constructionShare DIN 1476 A2 3X5
