DIN 1587 A4-80 M 6

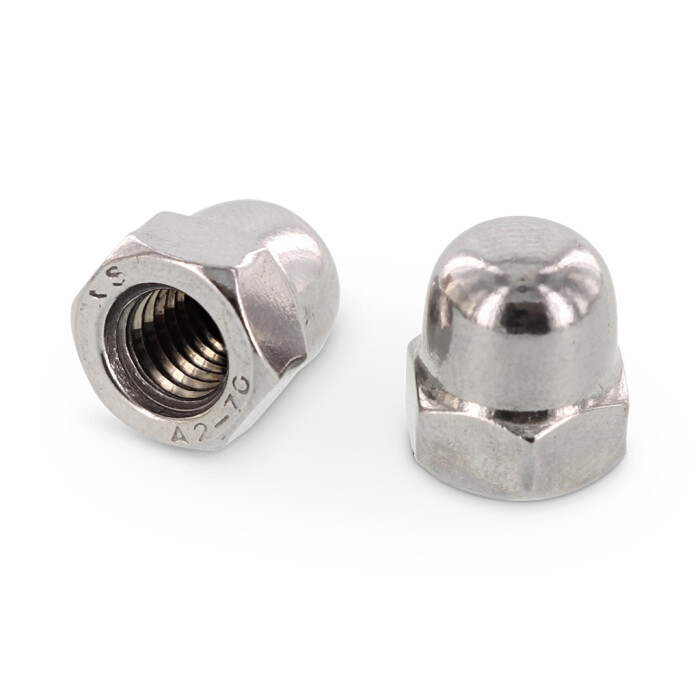

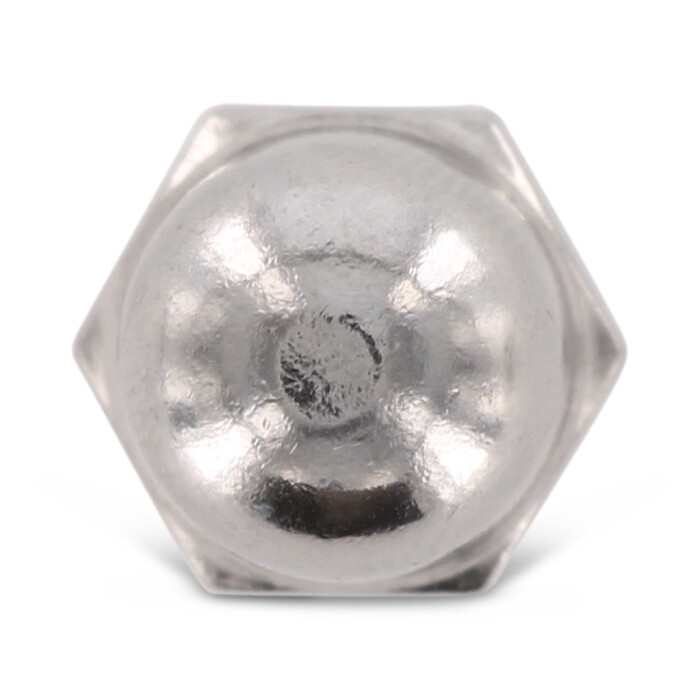

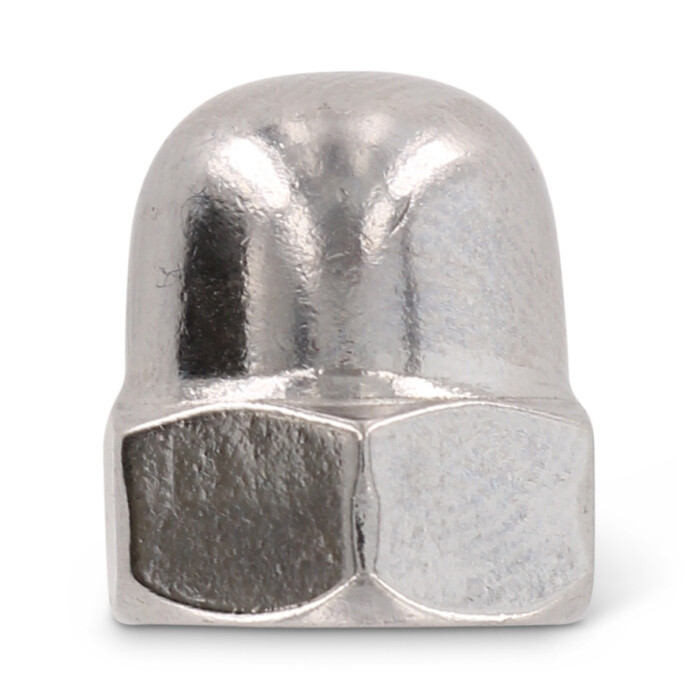

Hexagon domed cap nuts
Item number
158746
Materials
A4
EAN
3610500197338
Net weight per 100 pc.
0,472 kg
Item number
158746
Materials
A4
EAN
3610500197338
Net weight per 100 pc.
0,472 kg
- Technical data
- Product information
- Catalog page

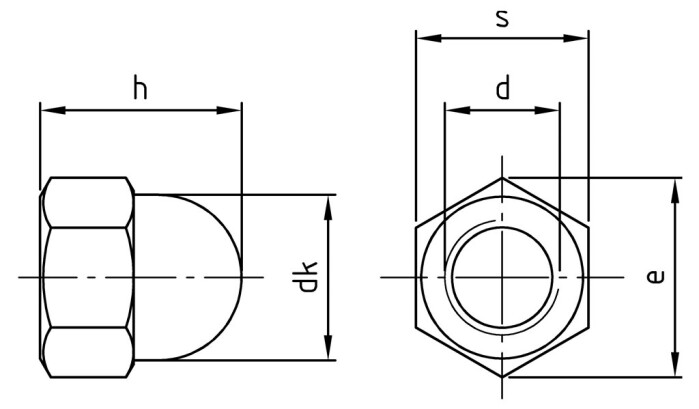

Technical data
| Diameter (d) | 6 mm |
| strength class (Rm) | 800 N/mm² |
| Diameter of head (dk) | 9,5 mm |
| Type of thread | Metric |
| Measurement h (h) | 12 mm |
| Hex height (h) | 5 mm |
| Corner measurement (e) | 10,89 mm |
| Drive size | SW 10 |
| Drive shape (drive) | Outer hex |
Product information
Area of use
Machine constructionShare DIN 1587 A4-80 M 6
