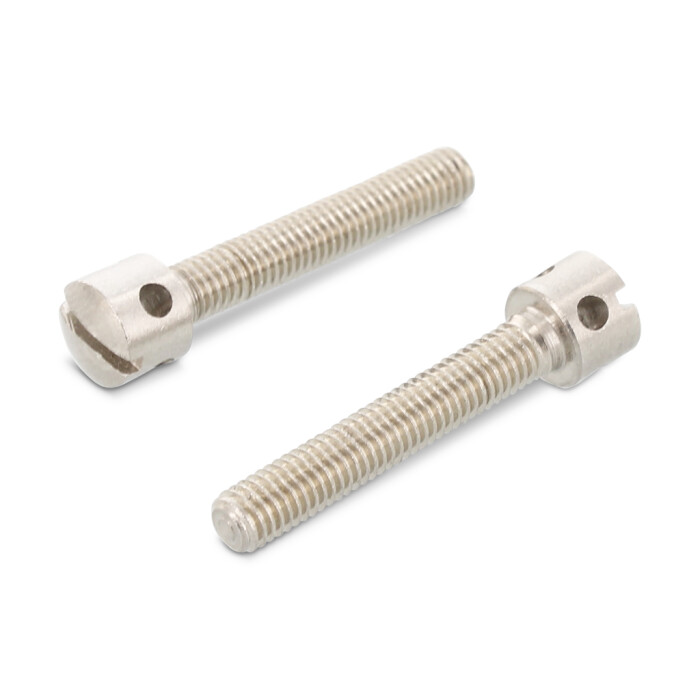

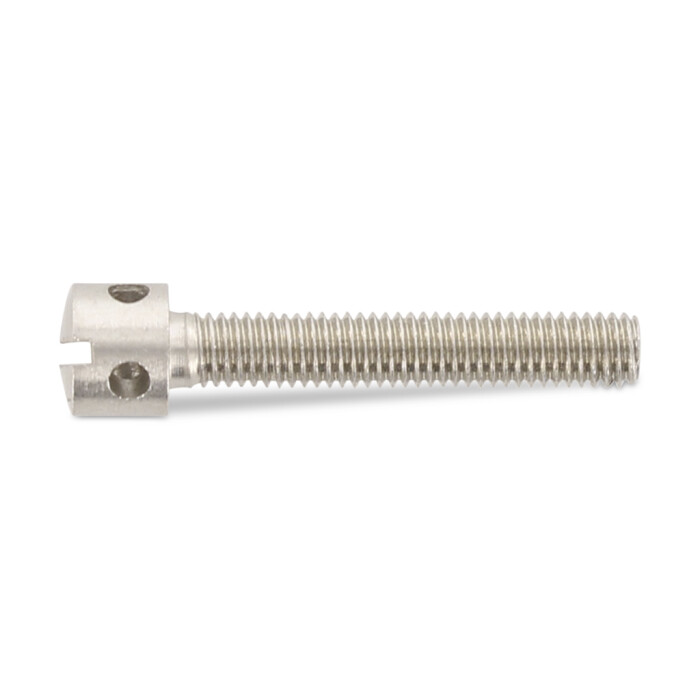

DIN 404 AISI 303 M 6X25
Capstan screws
Item number
040426 25
Materials
A1
EAN
3610500062445
Net weight per 100 pc.
0,780 kg
Packaging units:
50
Item number
040426 25
Materials
A1
EAN
3610500062445
Net weight per 100 pc.
0,780 kg
- Technical data
- Product information
- Catalog page

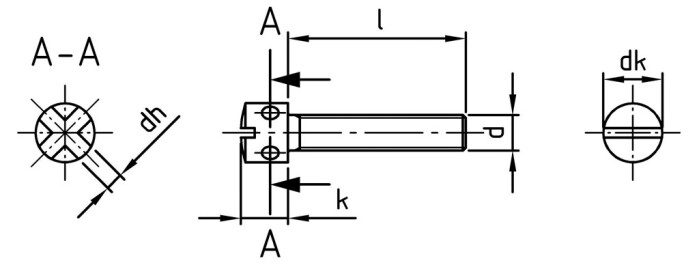

Technical data
| Diameter (d) | 6 mm |
| Total length (l) | 25 mm |
| Type of thread | Metric |

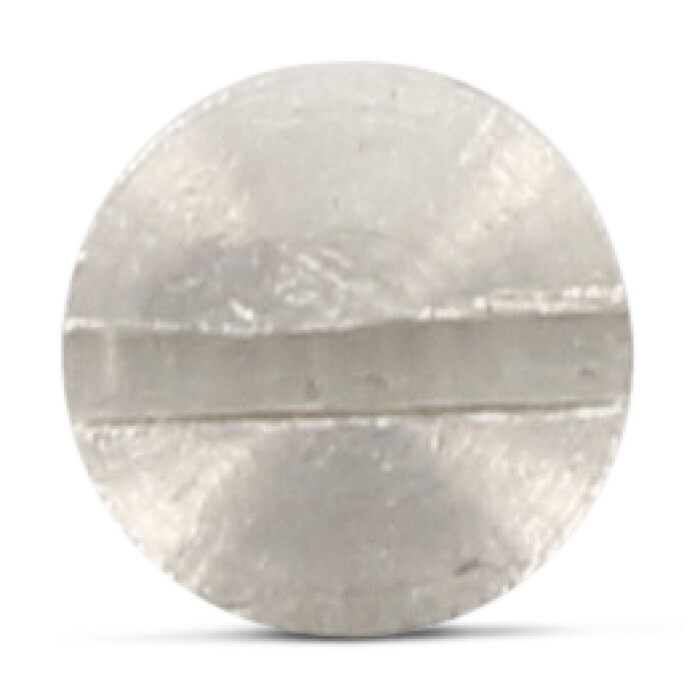

| Head shape | Cylinder head |
| strength class (Rm) | 500 N/mm² |
| Diameter of head (dk) | 10 mm |
| Height of head (k) | 8 mm |
| Drive shape (drive) | Slot |
Product information
Applications
Ideal for screw connections in the machine area and metal area.Area of use
Machine construction, Metal constructionShare DIN 404 AISI 303 M 6X25
