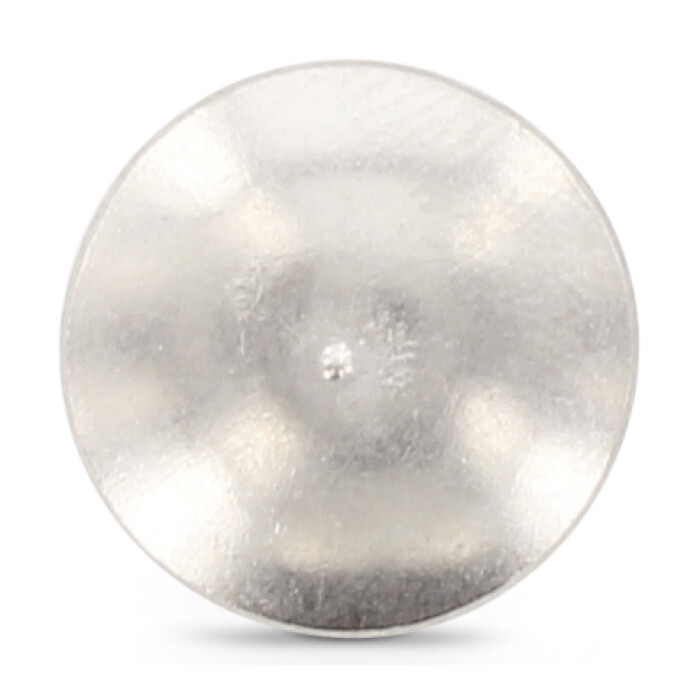

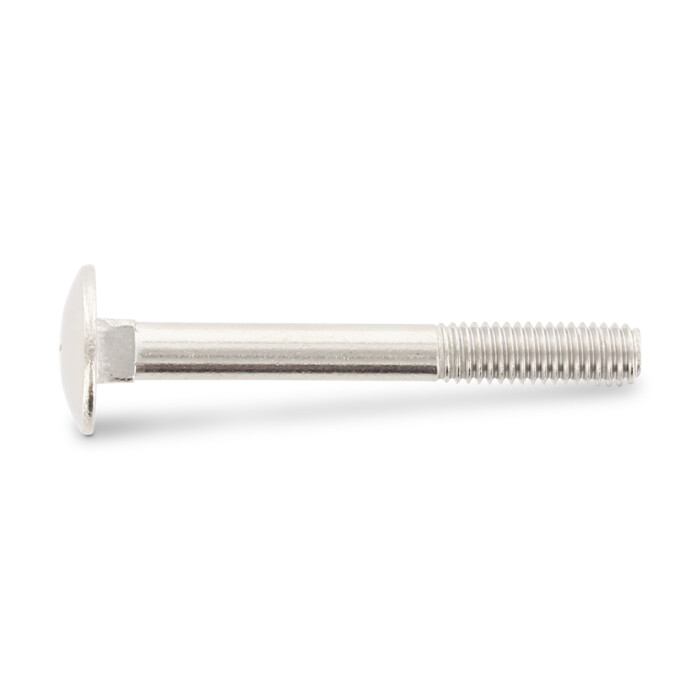

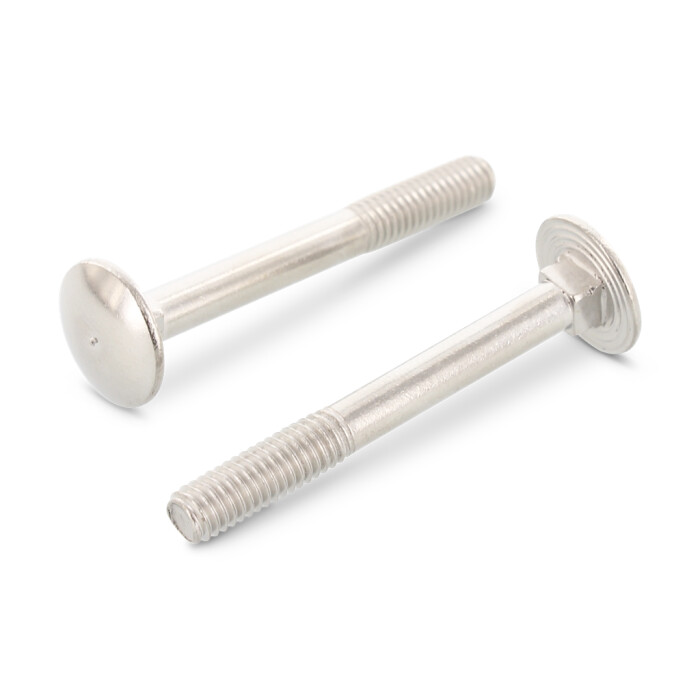

DIN 603 A2-70 M 10X45
Mushroom head square neck bolts, partial thread
Item number
0603210 45
Materials
A2
EAN
3610500357923
Net weight per 100 pc.
3,590 kg
Item number
0603210 45
Materials
A2
EAN
3610500357923
Net weight per 100 pc.
3,590 kg
- Technical data
- Product information
- Catalog page

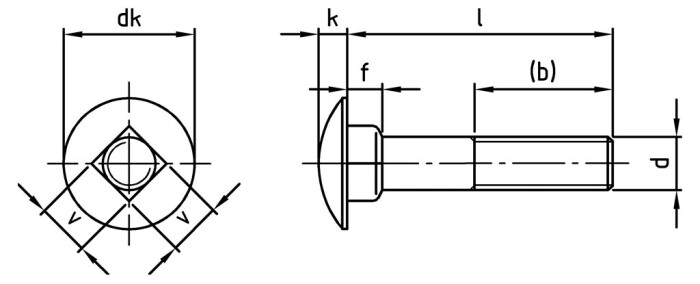

Technical data
| Diameter (d) | 10 mm |
| Total length (l) | 45 mm |
| Thread length (b) | 26 mm |
| Type of thread | Metric |
| Head shape | button head |
| Height of head (k) | 5,38 mm |
| strength class (Rm) | 700 N/mm² |
| Diameter of head (dk) | 24,65 mm |
| Measurement v (v) | 10,58 mm |
| Square height (f) | 6,6 mm |
Product information
Applications
Ideal for screw connections in the machine area, metal area and solar area.Area of use
Machine construction, Metal construction, SolarShare DIN 603 A2-70 M 10X45
