DIN 7967 A4 M 5
Self locking counter nuts
Item number
796745
Materials
A4
EAN
3610500220593
Net weight per 100 pc.
0,028 kg
Packaging units:
500
Item number
796745
Materials
A4
EAN
3610500220593
Net weight per 100 pc.
0,028 kg
- Technical data
- Product information
- Catalog page

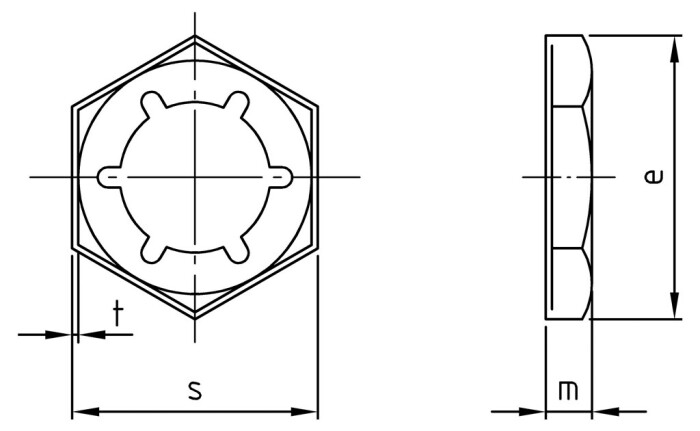

Technical data
| Diameter (d) | 5 mm |
| Type of thread | Metric |
| Drive shape (drive) | Outer hex |
| Corner measurement (e) | 9,2 mm |
| Drive size | SW 8 |
| Height (m) | 2,5 mm |
| Measurement t (t) | 0,4 mm |
| strength class (Rm) | 500 N/mm² |
Product information
Area of use
Safety engineeringShare DIN 7967 A4 M 5
