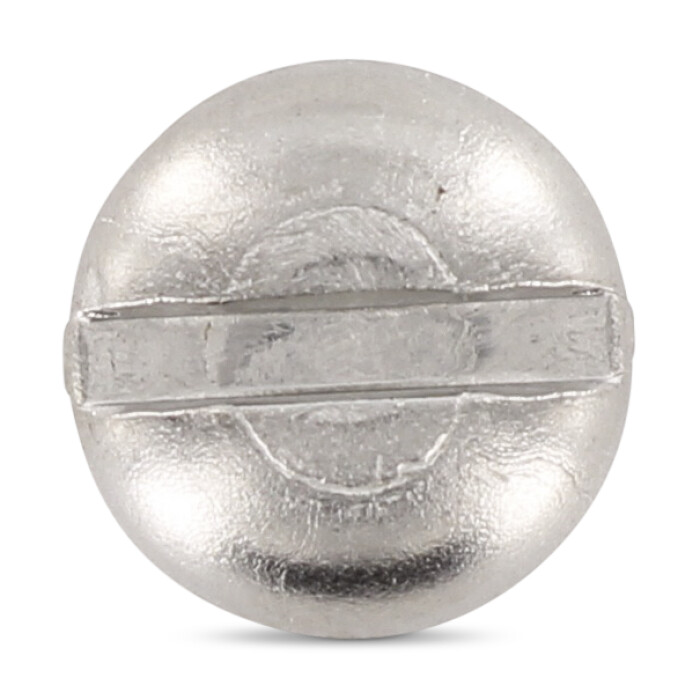

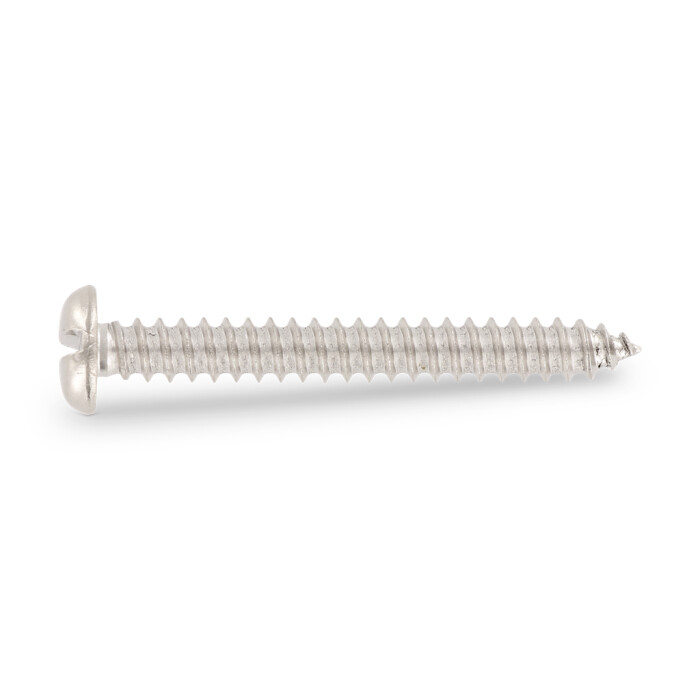

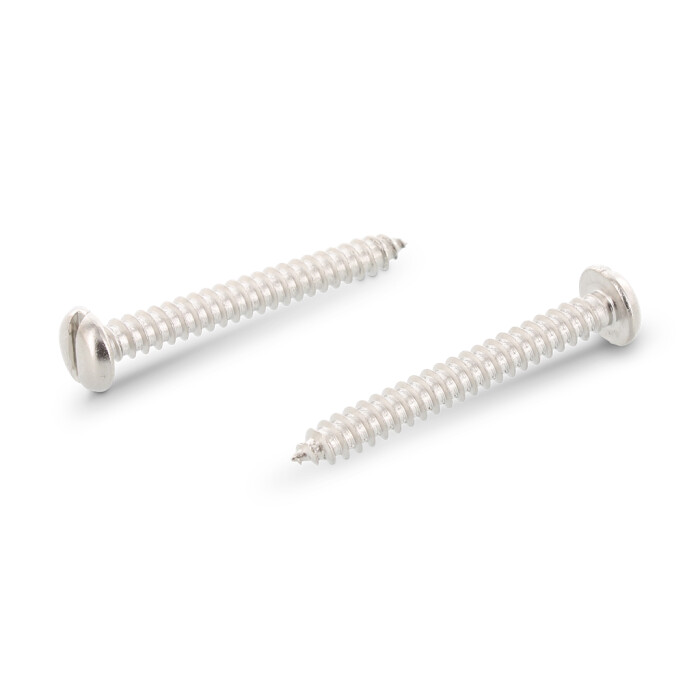

DIN 7971 A2 C 5,5X38
Slotted pan head tapping screws
Item number
7971255 38
Materials
A2
EAN
3610500221255
Net weight per 100 pc.
0,620 kg
Packaging units:
500
Item number
7971255 38
Materials
A2
EAN
3610500221255
Net weight per 100 pc.
0,620 kg
- Technical data
- Product information
- Catalog page

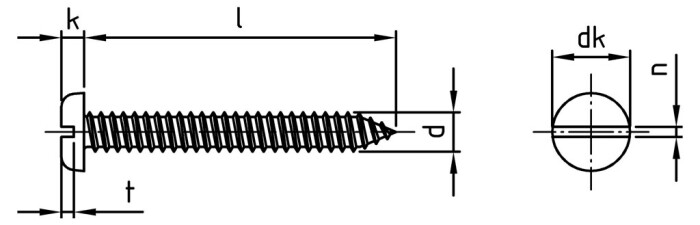

Technical data
| Diameter (d) | 5,5 mm |
| diameter imperial (inch) (d) | 12 " |
| Total length (l) | 38 mm |
| total length imperial (inch) ((Inch)) | 1,5 " |
| Type of thread | Sheet thread |
| Diameter of head (dk) | 10,8 mm |
| Head shape | Cylinder head |
| Height of head (k) | 3,2 mm |
| Slot width (n) | 1,6 mm |
| Slot depth (t) | 1,55 mm |
| Drive shape (drive) | Slot |
Product information
Applications
Sheet metal screw connections in sanitary and heating installation.Use in damp rooms and outdoor applications without significant levels of chlorides or sulphur dioxides.
The sheets of the parts to be screwed together must be larger than the thread pitch of the screw selected.
Area of use
Metal constructionShare DIN 7971 A2 C 5,5X38
