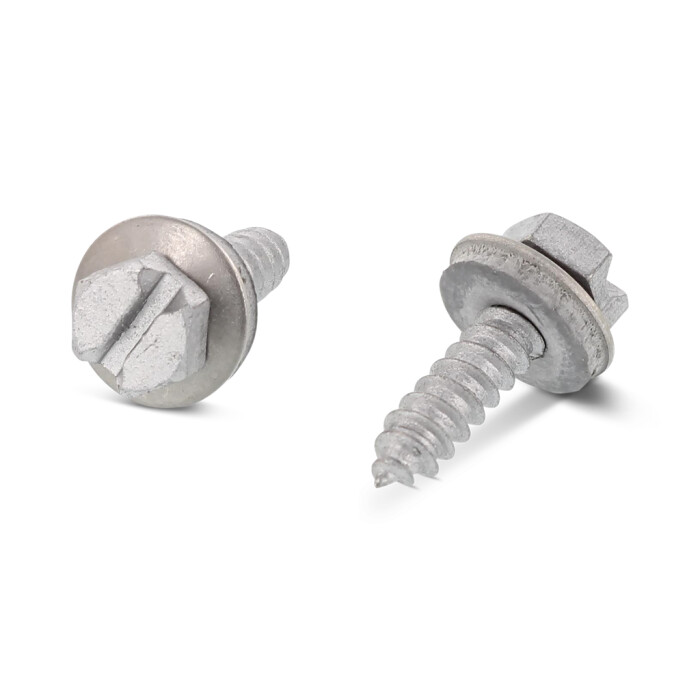

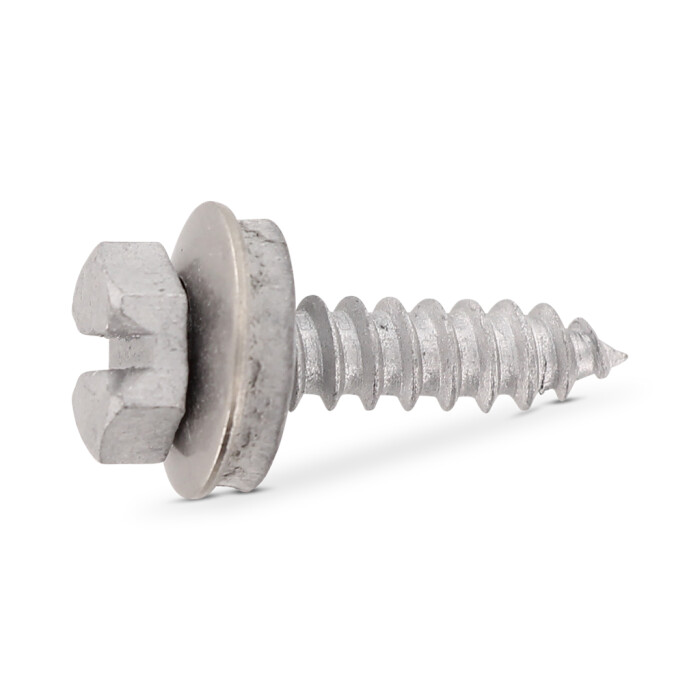

DIN 7976 A2 C 4,2X16 SZ, EPDM-washer 12 mm
Slotted hexagon head tapping screws + EPDM
Item number
7976203042 16
Materials
A2
EAN
3610500424632
Net weight per 100 pc.
0,243 kg
Packaging units:
500
Item number
7976203042 16
Materials
A2
EAN
3610500424632
Net weight per 100 pc.
0,243 kg
- Technical data
- Product information
- Catalog page

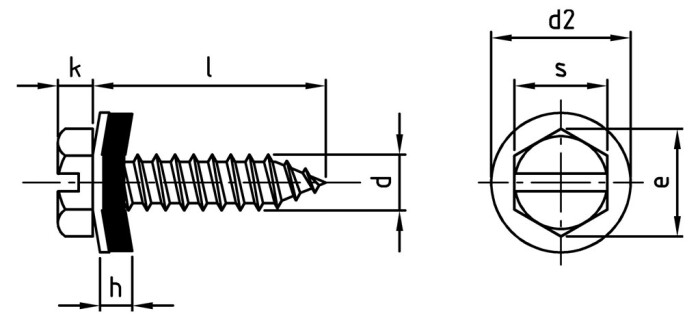

Technical data
| Diameter (d) | 4,2 mm |
| diameter imperial (inch) (d) | 8 " |
| Total length (l) | 16 mm |
| total length imperial (inch) ((Inch)) | 0,625 " |
| Type of thread | Sheet thread |
| Head shape | Hexagonal head |
| Height of head (k) | 2,8 mm |

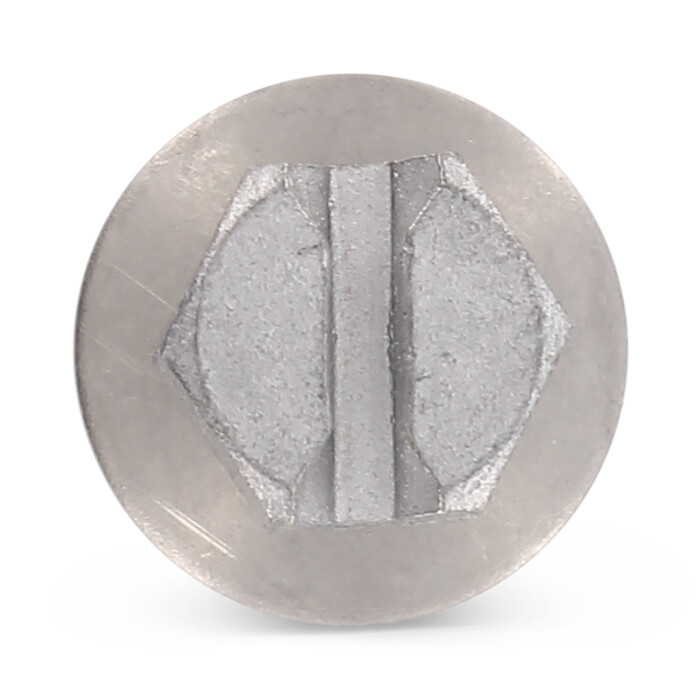

| Drive shape (drive) | Outer hex with Slot |
| Corner measurement (e) | 7,59 mm |
| Drive size | SW 7 |
Product information
Applications
Sheet metal screw connections in sanitary and heating installation.Use in damp rooms and outdoor applications without significant levels of chlorides or sulphur dioxides.
The sheets of the parts to be screwed together must be larger than the thread pitch of the screw selected.
Area of use
Metal constructionShare DIN 7976 A2 C 4,2X16 SZ, EPDM-washer 12 mm
