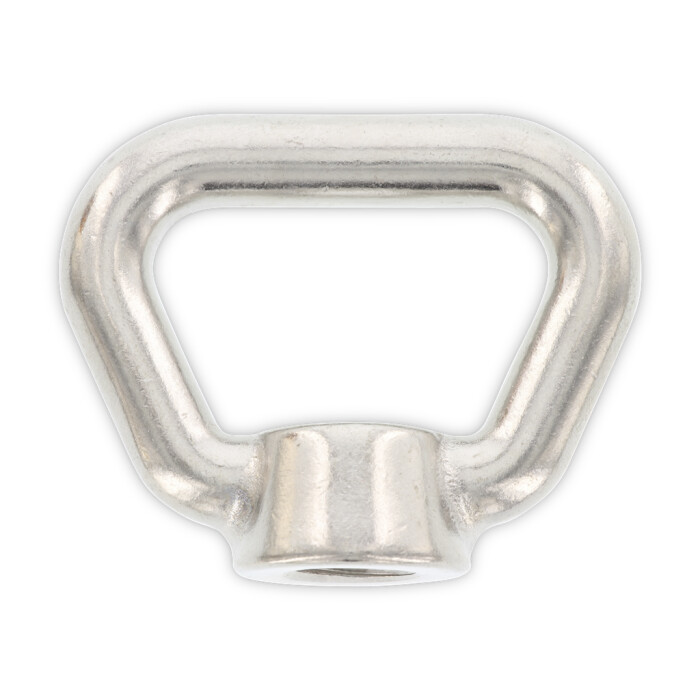

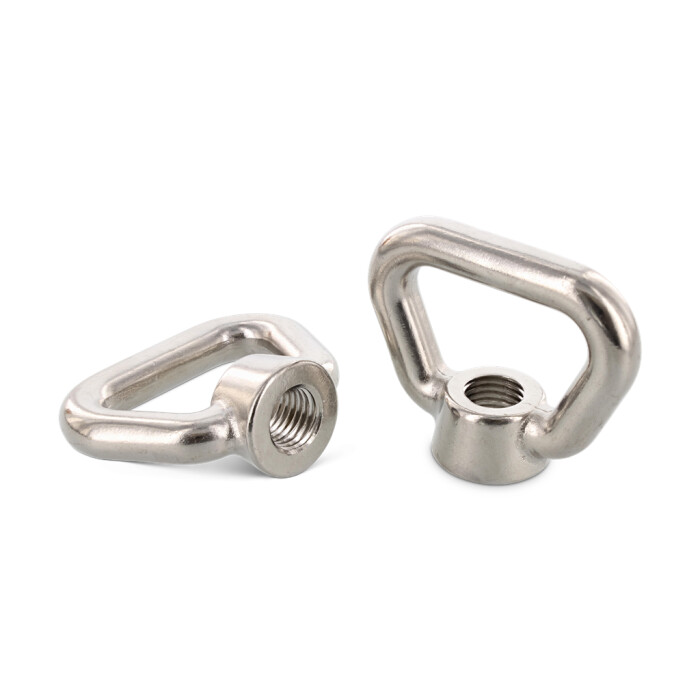

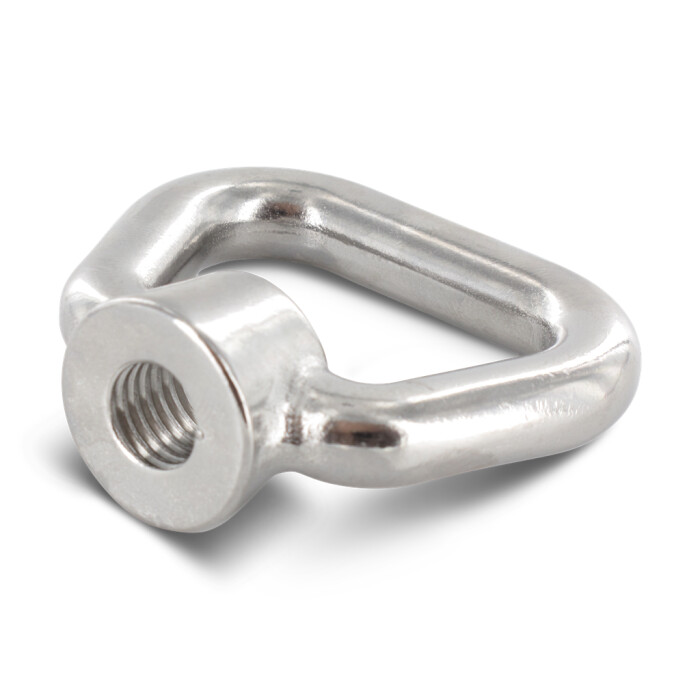

DIN 80704 A4 M 16
Bow nuts
Item number
80704416
Materials
A4
EAN
3610500261510
Net weight per 100 pc.
18,480 kg
Packaging units:
5
Item number
80704416
Materials
A4
EAN
3610500261510
Net weight per 100 pc.
18,480 kg
- Technical data
- Product information

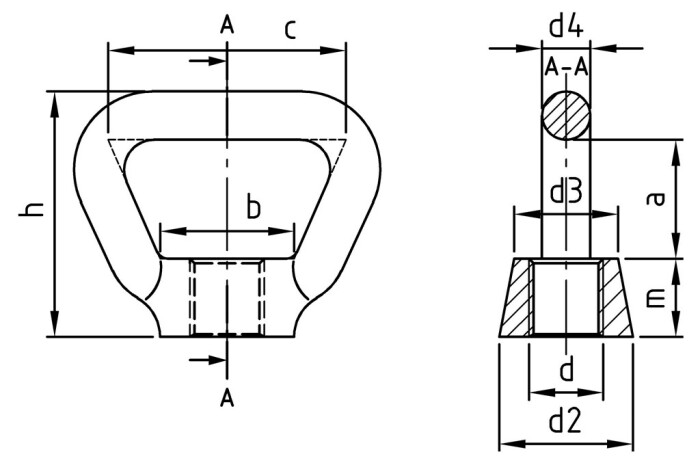

Technical data
| Diameter (d) | 16 mm |
| Measurement d2 (d2) | 30 mm |
| Measurement a (a) | 29 mm |
| strength class (Rm) | 500 N/mm² |
| Measurement d3 (d3) | 24 mm |
| Measurement d4 (d4) | 12 mm |
| Measurement b (b) | 32 mm |
| Measurement c (c) | 56 mm |
| Measurement h (h) | 59 mm |
| Measurement m (m) | 18 mm |
Product information
Area of use
Machine constructionShare DIN 80704 A4 M 16
