DIN 966 A4 M 3X35 H
Cross recessed raised countersunk head screws
Item number
096643 35
Materials
A4
EAN
3610500184062
Net weight per 100 pc.
0,172 kg
Item number
096643 35
Materials
A4
EAN
3610500184062
Net weight per 100 pc.
0,172 kg
- Technical data
- Product information
- Catalog page

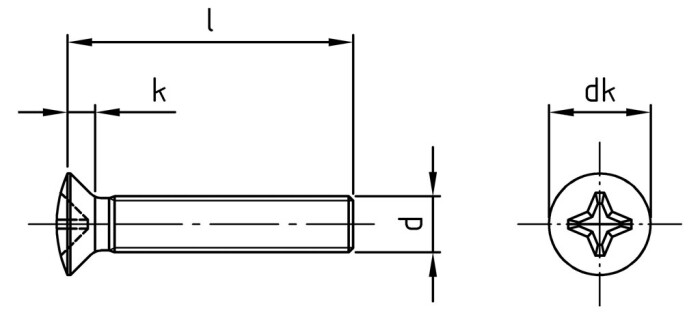

Technical data
| Diameter (d) | 3 mm |
| Total length (l) | 35 mm |
| strength class (Rm) | 500 N/mm² |
| Type of thread | Metric |
| Head shape | Raised countersunk head |
| Diameter of head (dk) | 5,6 mm |
| Height of head (k) | 1,65 mm |
| Drive size | PH1 |
| Drive shape (drive) | Phillips |
Product information
Applications
Ideal for screw connections in the machine area.Area of use
Machine constructionShare DIN 966 A4 M 3X35 H
