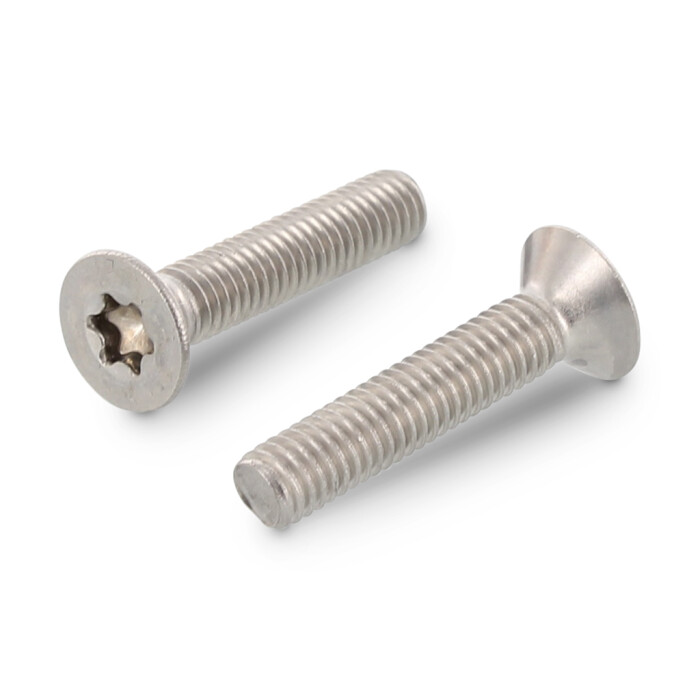

ISO 10642 A2 M 6X20 TX30
Countersunk head screws six lobe drive with fullthread
Item number
106422T6 20
Materials
A2
EAN
3610500253911
Net weight per 100 pc.
0,450 kg
Item number
106422T6 20
Materials
A2
EAN
3610500253911
Net weight per 100 pc.
0,450 kg
- Technical data
- Product information
- Catalog page

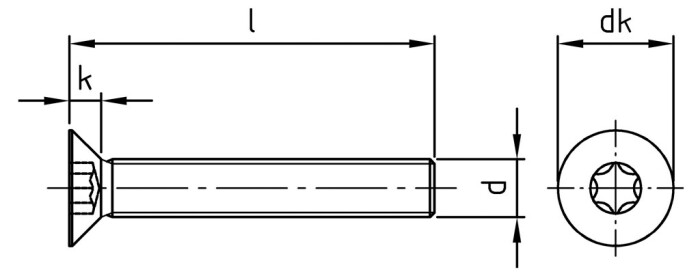

Technical data
| Diameter (d) | 6 mm |
| Total length (l) | 20 mm |
| strength class (Rm) | 500 N/mm² |
| Type of thread | Metric |
| Drive size | TX30 |
| Drive shape (drive) | Inner multi-tooth |

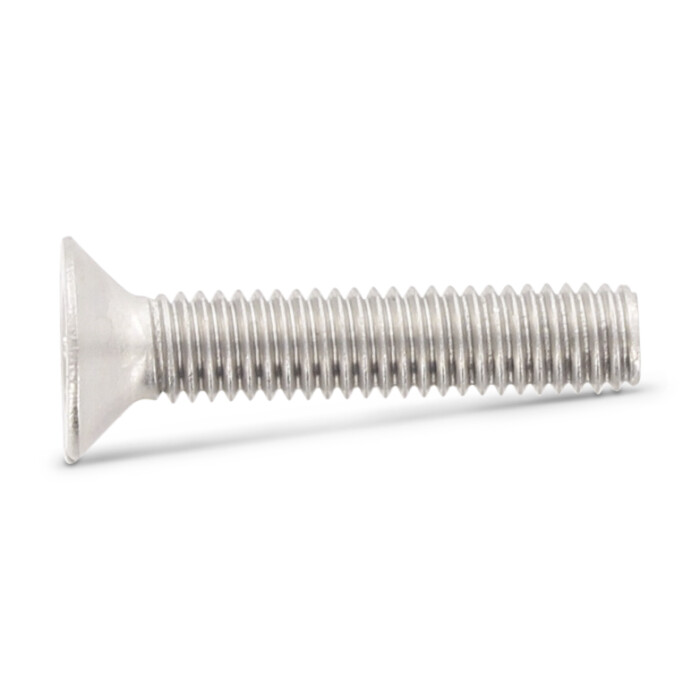

| Head shape | Countersunk head |
| Diameter of head (dk) | 12 mm |
| Height of head (k) | 3,3 mm |
Product information
Product benefits

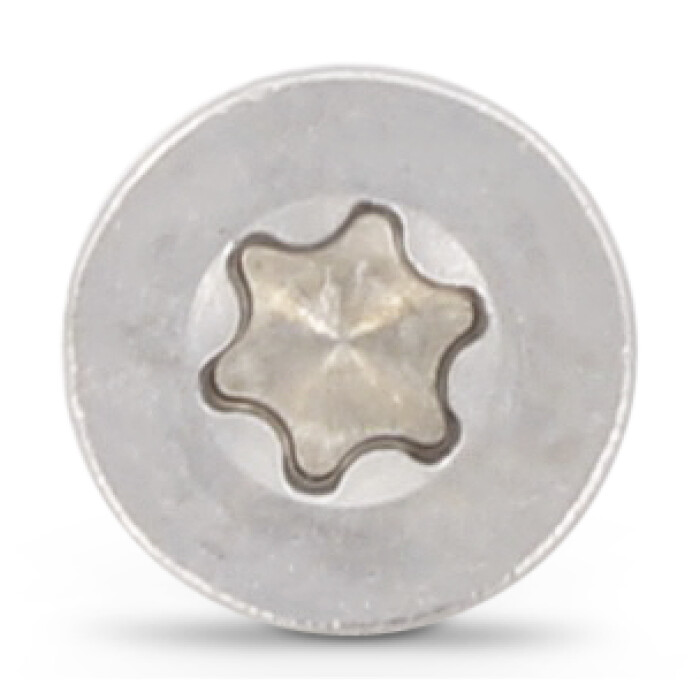

Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
Ideal for screw connections in the machine area.Area of use
Machine constructionFEATURES
- "0" = reduced load capacityShare ISO 10642 A2 M 6X20 TX30
