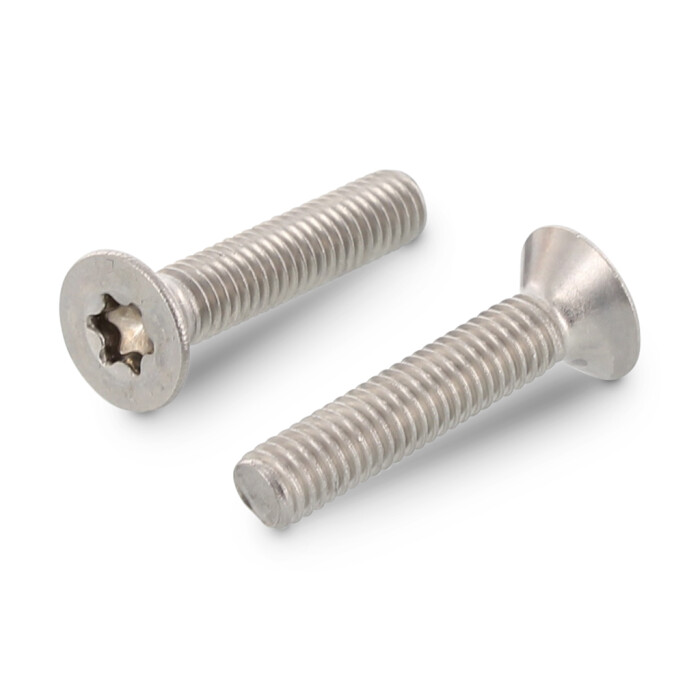

ISO 10642 A4 M 6X14 TX30
Countersunk head screws six lobe drive with fullthread
Item number
106424T6 14
Materials
A4
EAN
3610500374517
Net weight per 100 pc.
0,340 kg
Packaging units:
200
Item number
106424T6 14
Materials
A4
EAN
3610500374517
Net weight per 100 pc.
0,340 kg
- Technical data
- Product information
- Catalog page

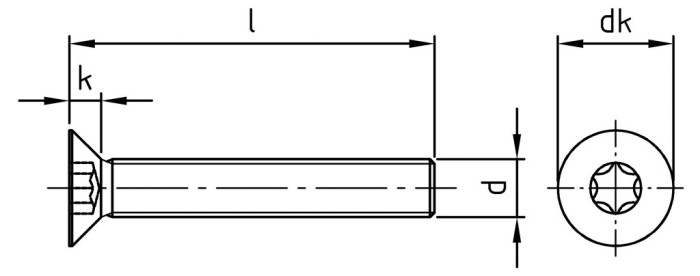

Technical data
| Diameter (d) | 6 mm |
| Total length (l) | 14 mm |
| Type of thread | Metric |
| strength class (Rm) | 500 N/mm² |
| Head shape | Countersunk head |
| Diameter of head (dk) | 12 mm |
| Height of head (k) | 3,3 mm |
| Drive size | TX30 |
| Drive shape (drive) | Inner multi-tooth |
Product information
Product benefits
Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
Ideal for screw connections in the machine area.Area of use
Machine constructionFEATURES
- "0" = reduced load capacityShare ISO 10642 A4 M 6X14 TX30
