ISO 14579 A4-70 M 4X60 TX20
Socket head cap screws with six lobe drive
Item number
1457944 60
Materials
A4
EAN
3610500376405
Net weight per 100 pc.
0,665 kg
Packaging units:
100
Item number
1457944 60
Materials
A4
EAN
3610500376405
Net weight per 100 pc.
0,665 kg
- Technical data
- Product information

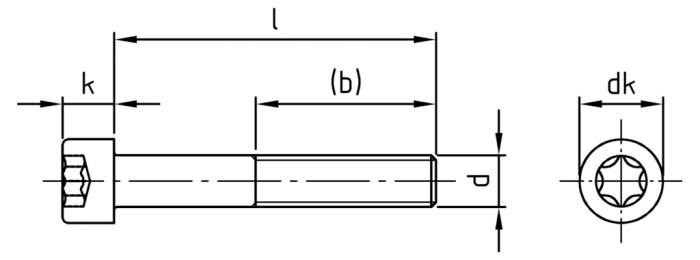

Technical data
| Diameter (d) | 4 mm |
| Total length (l) | 60 mm |
| strength class (Rm) | 700 N/mm² |
| Diameter of head (dk) | 7 mm |
| Height of head (k) | 4 mm |
| Head shape | Cylinder head |
| Type of thread | Metric |
| Drive size | TX20 |
| Drive shape (drive) | Inner multi-tooth |
| Thread length (b) | 20 mm |
Product information
Product benefits
Wobble-free driving featureThe TX inner multi-tooth drive allows the screw to be easily and securely screwed in when the screw is attached and countersunk.
Applications
For screw connections in machine construction, the furniture industry, sanitary construction and heating construction.Use in damp rooms and outdoor applications without significant levels of chlorides or sulphur dioxides.
Area of use
Machine constructionShare ISO 14579 A4-70 M 4X60 TX20
