ISO 14584 A2 M 5X18 TX25
Raised countersunk head screws with six lobe drive
Item number
1458425 18
Materials
A2
EAN
3610500178429
Net weight per 100 pc.
0,297 kg
Item number
1458425 18
Materials
A2
EAN
3610500178429
Net weight per 100 pc.
0,297 kg
- Technical data
- Product information
- Catalog page

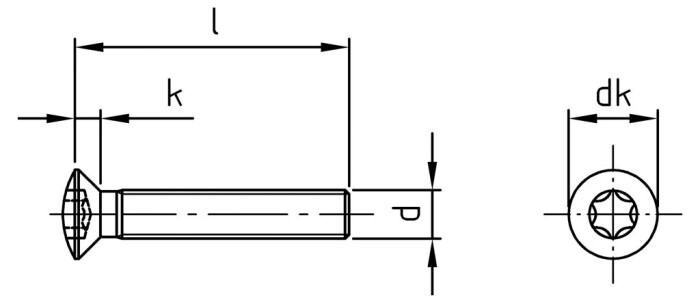

Technical data
| Diameter (d) | 5 mm |
| Total length (l) | 18 mm |
| strength class (Rm) | 700 N/mm² |
| Type of thread | Metric |
| Head shape | Raised countersunk head |
| Diameter of head (dk) | 9,3 mm |
| Height of head (k) | 2,7 mm |
| Drive size | TX25 |
| Drive shape (drive) | Inner multi-tooth |
Product information
Area of use
Machine constructionShare ISO 14584 A2 M 5X18 TX25
